High Efficient Precision CNC Cylindrical Grinding Machine MK1320 Greatest Quality Grinding Machines Export
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | MK1320 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $41600 |
| 5 sets $40500 | |
| Packaging Details: | 430000*2300*2300 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
High Precision
The table(Z-axis) guide adopts open unloading Hydro-static guide structure, and the transverse feed(X-axis) adopts Swiss N/O linear guide strcture. It adopts high precision roller screw drive, zero clearance, low speed and no creep.
The table(Z-axis) guide adopts open unloading Hydro-static guide structure, and the transverse feed(X-axis) adopts Swiss N/O linear guide strcture. It adopts high precision roller screw drive, zero clearance, low speed and no creep.
High Rigidity
The spindle of the grinding wheel adopts large taper, four oil wedge, automatic adjustable Hydro-dynamic pressure bearing, the workhead adopts Hydro-static spindle center-fixed grinding structure, the tailstock adopts dense bead sleeve or linear bearing structure, the whole machine has strong ridigity and high precision.
Specifications:
| Specifications | unit | MK1320B | MK1332 | MK1620 | MK1632 |
| Distance between centers | mm | 500/750 | 500/750/1000/1500 | 500/750 | 500/750/1000/1500 |
| Center height | mm | 135 | 180 | 135 | 180 |
| Dia. Ground(O.D) | mm | 8-200 | 8-320 | 8-200 | 8-320 |
| Max. weight of work piece | Kg | 50 | 100 | 100 | 100 |
| Workhead Center taper(MT) | MT4 | MT4 | MT4 | MT4 | |
| Workhead Spindle speed /Stepless | r/min | 50HZ:25~260 | 50HZ:25~260 | 50HZ:25~260 | 50HZ:25~260 |
| Wheelhead Max. dimension of wheel(ODxWxlD) | mm | 400x50x203 | 500x50x203 | 500x75x203 | 500x75x203 |
| Wheelhead Wheel peripheral velocity | m/s | 35 | 35 | 35 | 35 |
| Wheelhead Min set unit | mm | 0.0001 | 0.0001 | 0.0001 | 0.0001 |
| Max. swiveling angle of table(Cockwise) | o | 5º( 500), 3º( 750) | 3º | 3º | 3º |
| Max. swiveling angle of table(Anticlockwise) | o | 9° | 9°(500) | 9°(500) | 9°(500) |
| 8°(750) | 8°(750) | 8°(750) | |||
| 7°(1000) | 7°(1000) | ||||
| 6°(1500) | 6°(1500) | ||||
| Tailstock Center taper(MT) | MT4 | MT4 | MT4 | MT4 | |
| Tailstock Quill travel | mm | 30 | 30 | 30 | 30 |
| CNC System | HNC-808DG,Siemens 808D,Fanuc or others | HNC-808DG,Siemens 808D,Fanuc or others | HNC-808DG,Siemens 808D,Fanuc or others | HNC-808DG,Siemens 808D,Fanuc or others | |
| Wheelhead motor power | Kw | 4 | 5.5 | 7.5 | 7.5 |
| Workhead motor power | Kw | 1.5 | 1.5 | 1.5 | 1.5 |
| Roundness | um | 2 | 2(500/750) | 2 | 2(500/750) |
| 3(1000/1500) | 3(1000/1500) | ||||
| Cylindricity | pm | 5 | 5(500/750) | 5 | 5(500/750) |
| 8(1000/1500) | 8(1000/1500) | ||||
| Roughness | pm | RA0.2 | RA0.2 | RA0.2 | RA0.2 |
| Gross weight | T | 3.2(500) | 4.3(500) | 4.3(500) | 4.3(500) |
| 3.6(750) | 4.6(750) | 4.6(750) | 4.6(750) | ||
| 5(1000) | 5(1000) | ||||
| 5.6(1500) | 5.6(1500) | ||||
| Packing dimension | cm | 285x190x220(500) | 360x230x220(500) | 360x230x220 ( 500) | 360x230x220(500) |
| 340x190x220 ( 750) | 395x230x220(750) | 395x230x220 (750) | 395x230x220(750) | ||
| 465x230x220(1000) | 465x230x220(1000) | ||||
| 585x230x220(1500) | 585x230x220(1500) |

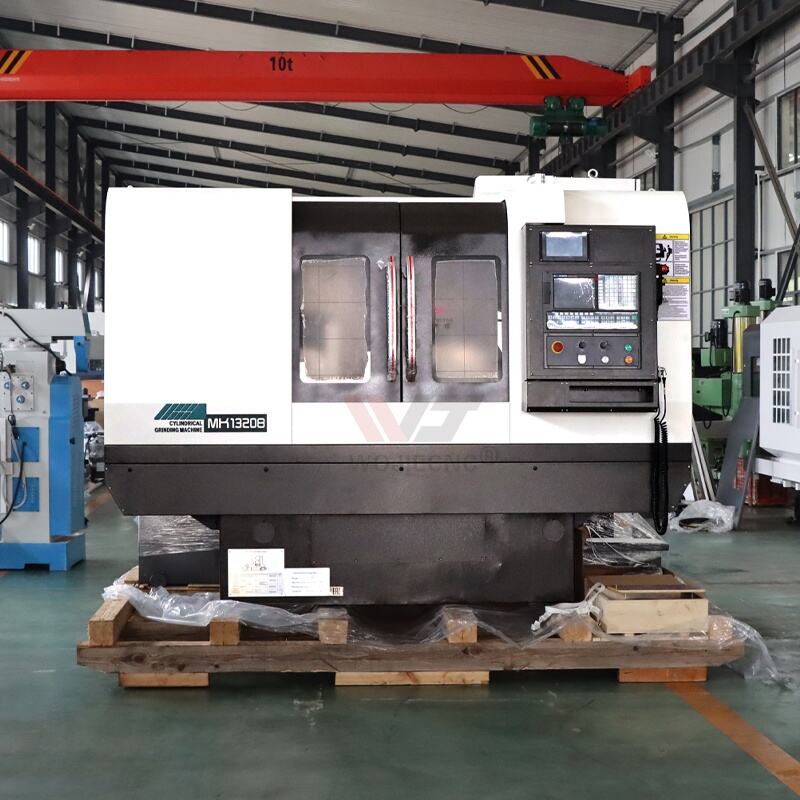

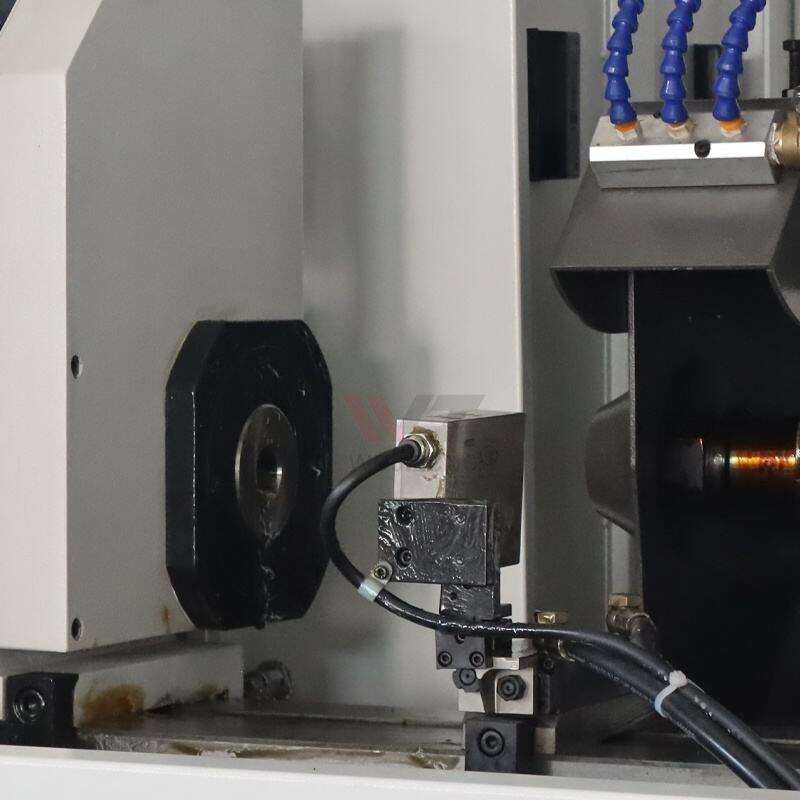

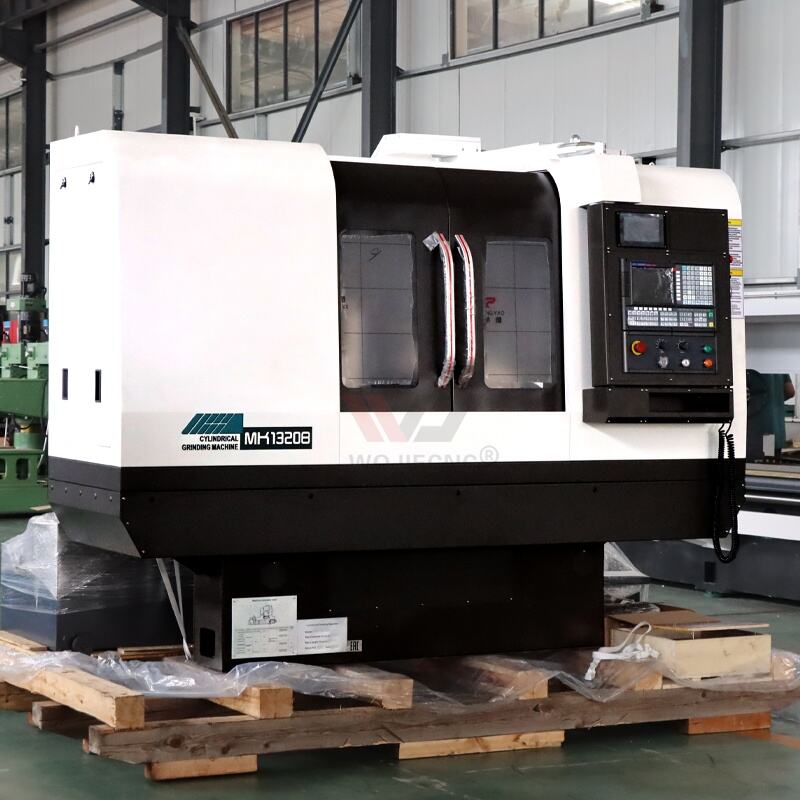

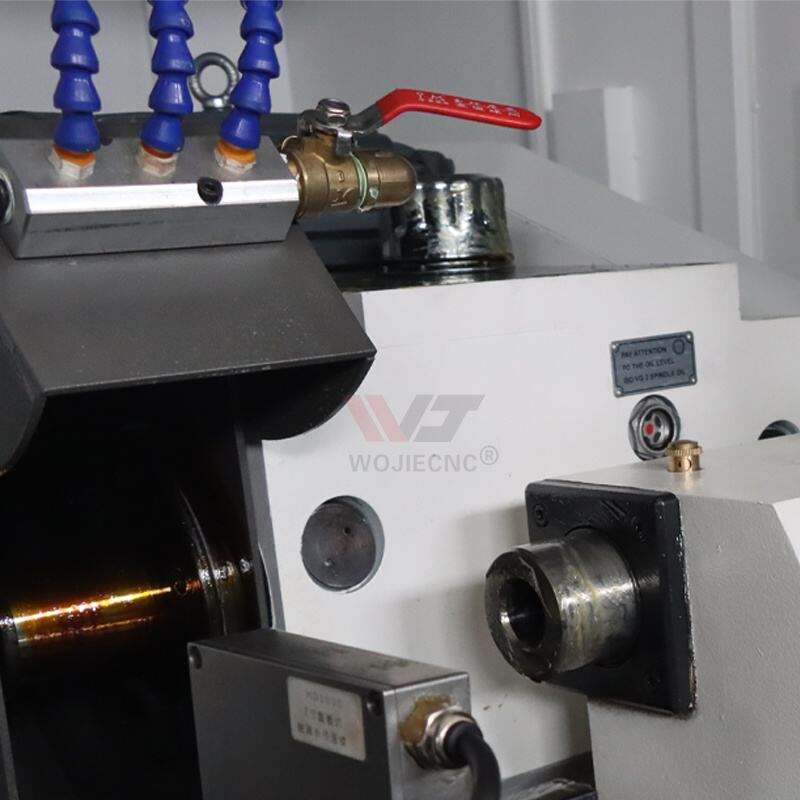

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment, we will start to make production.
when the machine is ready , we will take pictures to you.after we got your balance payment.
we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days. if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
