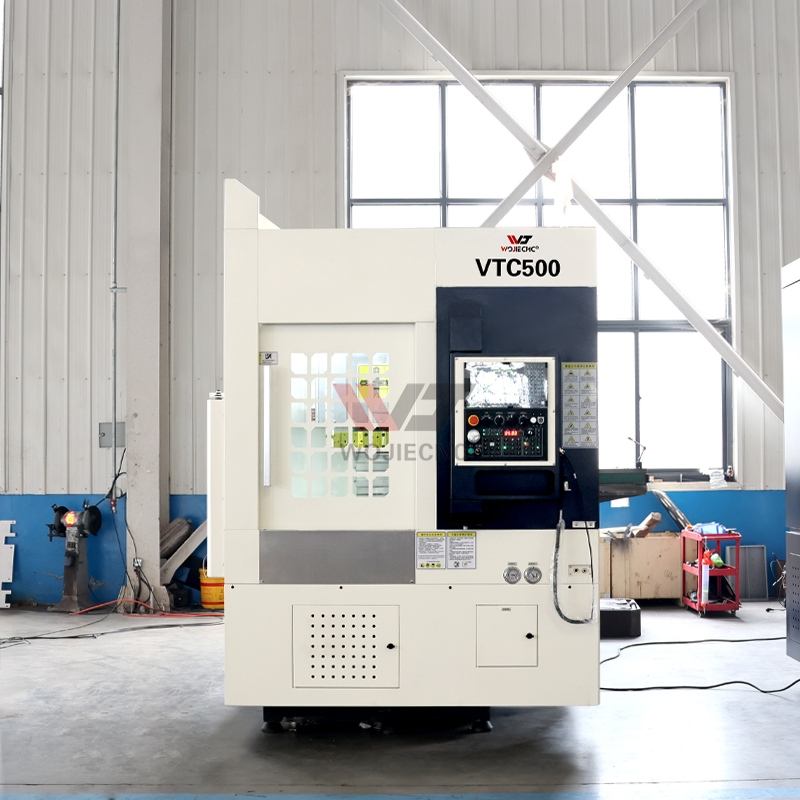

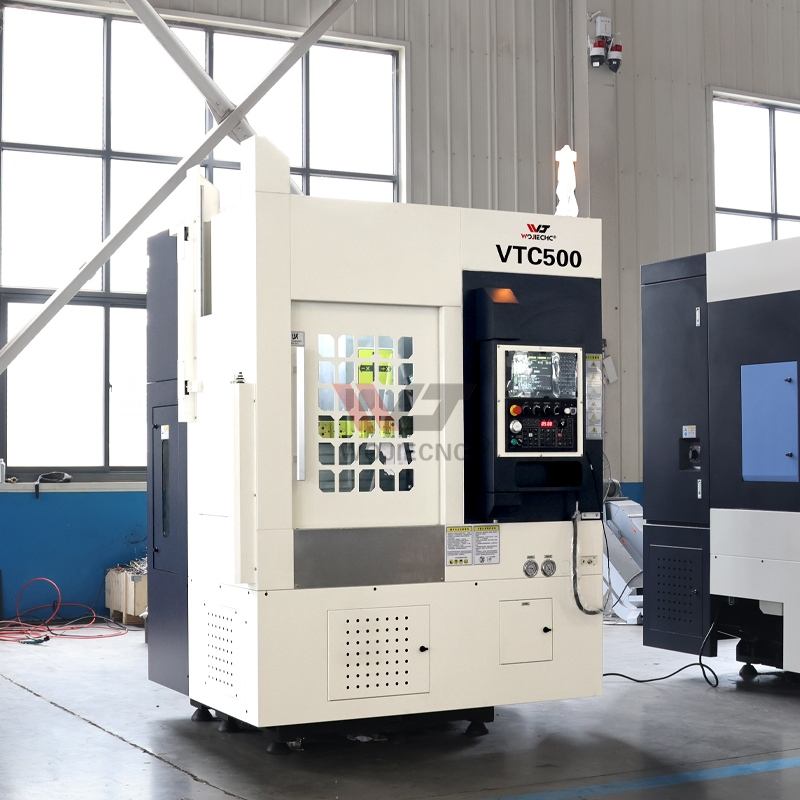

VTC500 CNC Vertical Turning Machine High-speed Turning and Milling Compound CNC Lathe Machine Heavy Duty Processing Manufacturer
|
Item |
Specification |
|
Max. Swing Diameter |
500 mm |
|
Max. Turning Diameter |
400 mm |
|
Max. Workpiece Height |
400 mm |
|
Spindle Speed Range |
20–1000 rpm |
|
Spindle Motor Power |
7.5 kW |
|

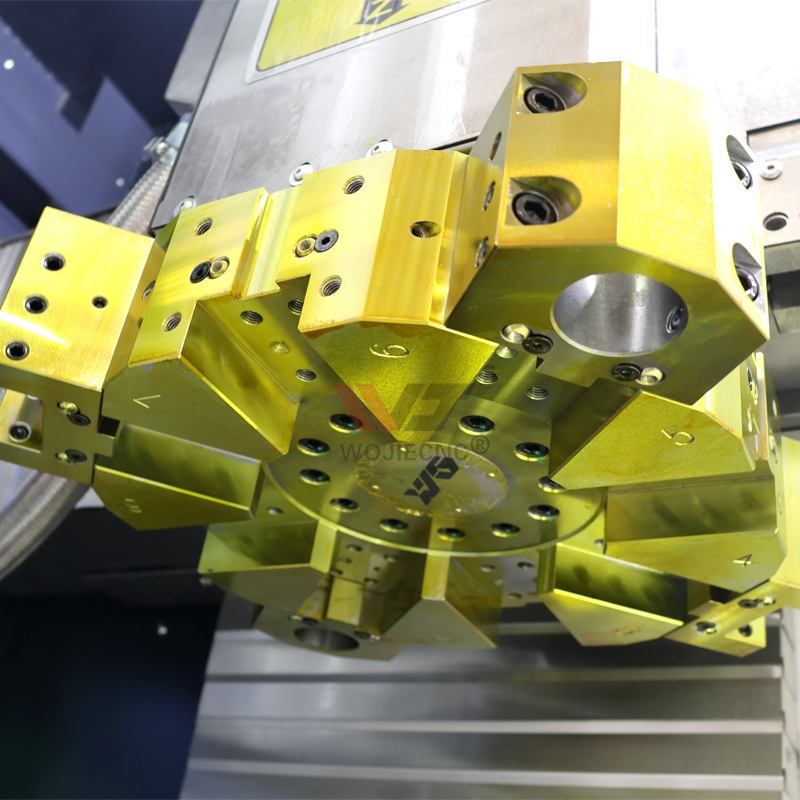

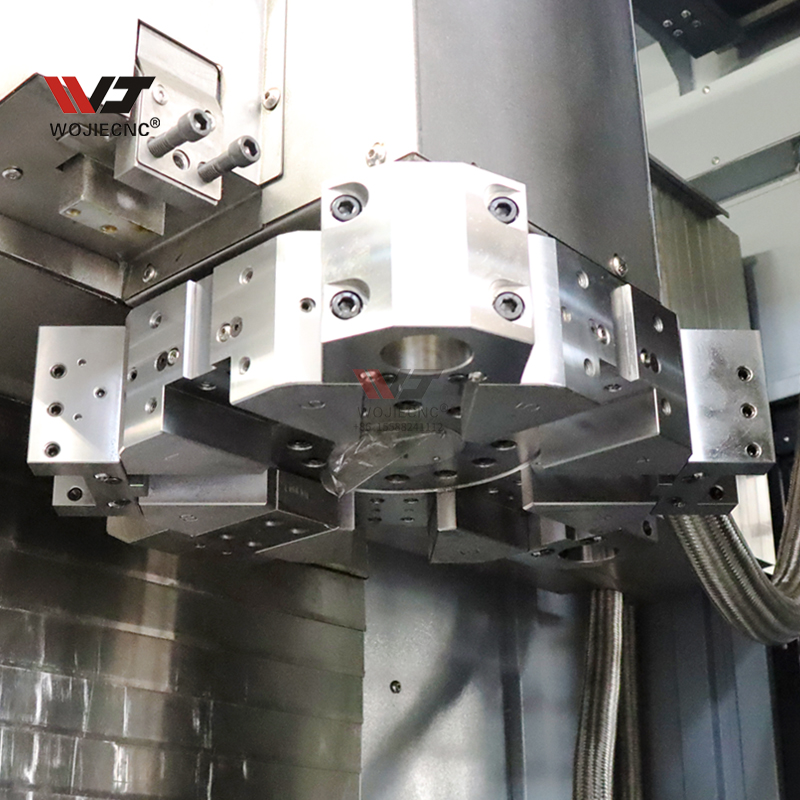

Turret Stations |
8 stations |
|
Positioning Accuracy |
±0.01 mm |
|
Repeat Positioning Accuracy |
±0.005 mm |
|
Machine Weight |
4200 kg |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
This machine tool is an automatic CNC machining machine, which is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of parts, especially suitable for vehicle brake hubs, wheel drums, clutch pressure plates, flywheels Machining of parts such as shells.
Product main technical Specifications:
|
SPECIFICATIONS |
Units |
VTC500 |
|
Max. Swing diameter |
mm |
500 |
|
Max. Turning diameter |
mm |
400 |
|
Spindle nose type |
|
A2-8 |
|
Diameter of spindle bearing |
mm |
120 |
|
Spindle speed range |
rpm |
50-1250 |
|
Spindle output torque |
nm |
350 |
|
Chuck diameter |
〞 |
12〞 |
|
Turret travel X axis |
mm |
-325 |
|
Turret travel Z axis |
mm |
500 |
|
Distance from Bottom of turret to up of chuck |
mm |
0-500 |
|
Diameter of X/Z screw |
mm |
φ40 |
|
X-axis rapid traverse |
m/min |
15 |
|
Z-axis rapid traverse |
m/min |
12 |
|
Cutting feeding |
m/min |
0.1-5000 |
|
X axis motor power/torque |
Kw/nm |
1.6/10 |
|
Z axis motor power/torque |
Kw/nm |
2.4/15 |
|
Main motor power/torque |
Kw/nm |
11/15- 140 |
|
Overall size (L*W*H) |
m |
1.8*1.8*2.5 |
|
Machine weight |
kg |
4200 |
Detailed Images:
 |
 |
|
Door & Safety Locks

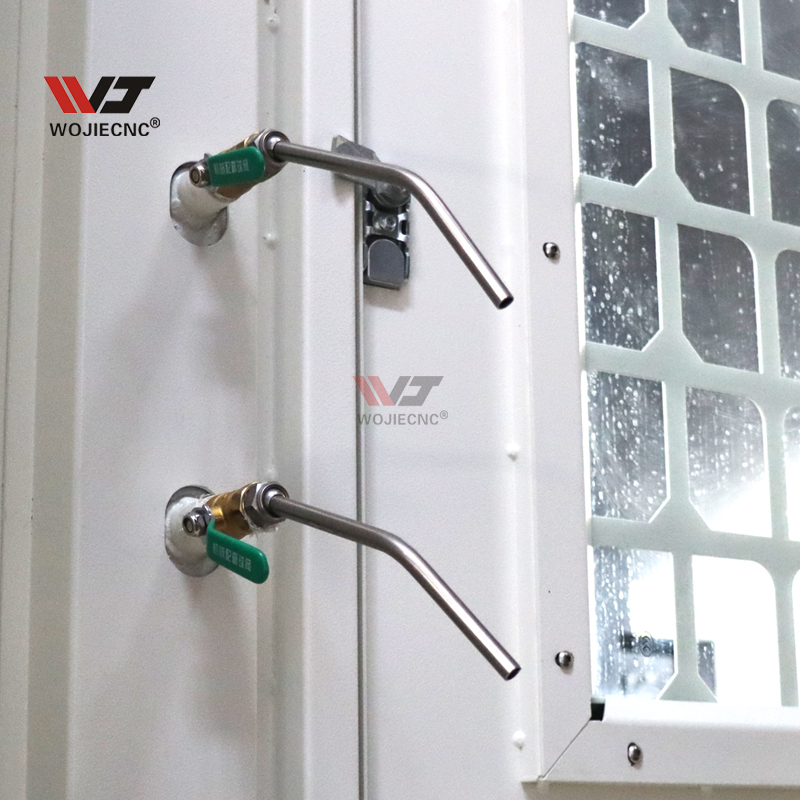

Equipped with dual safety handles to secure the machine enclosure, ensuring operator safety during operation.
|

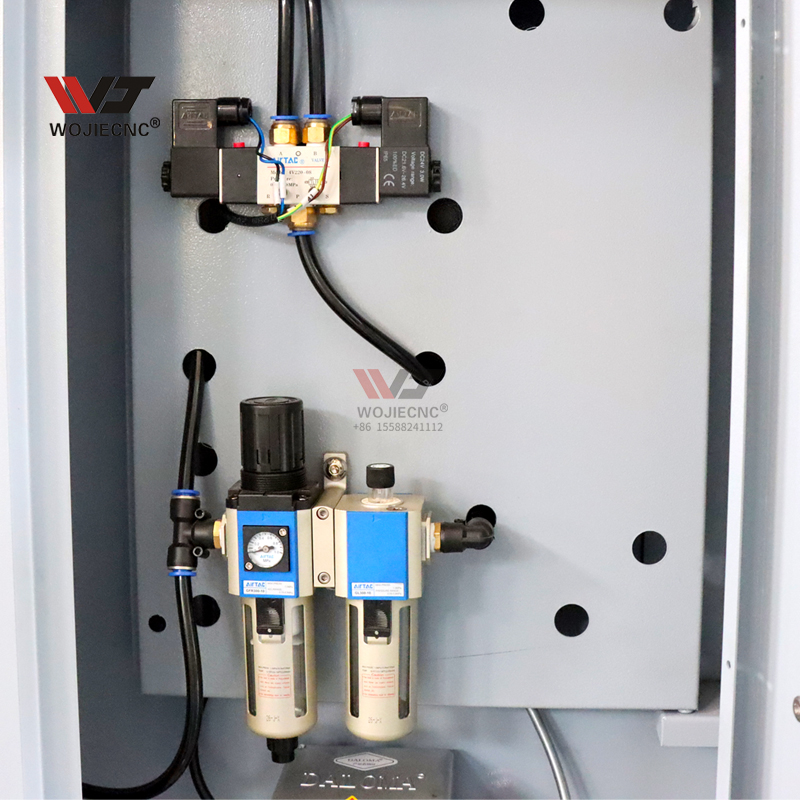

Pneumatic System
Features an air filter regulator unit to clean and stabilize compressed air supply, supporting reliable pneumatic clamping and auxiliary functions.
|
 |
 |
|

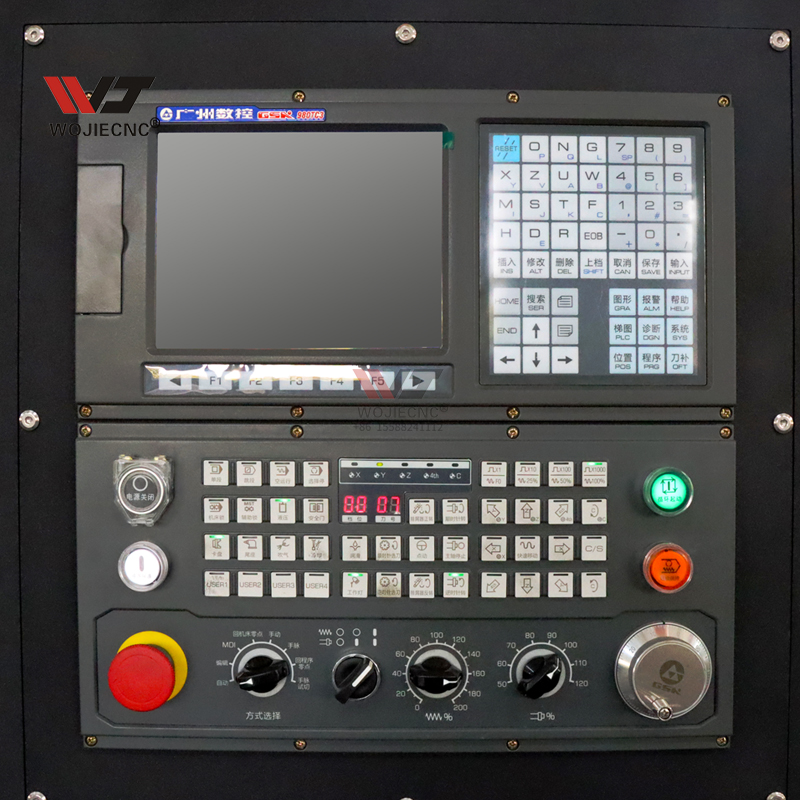

SYSTEM
Standsrd is GSK System
Optional : Fanuc/Siemens/KND...
|

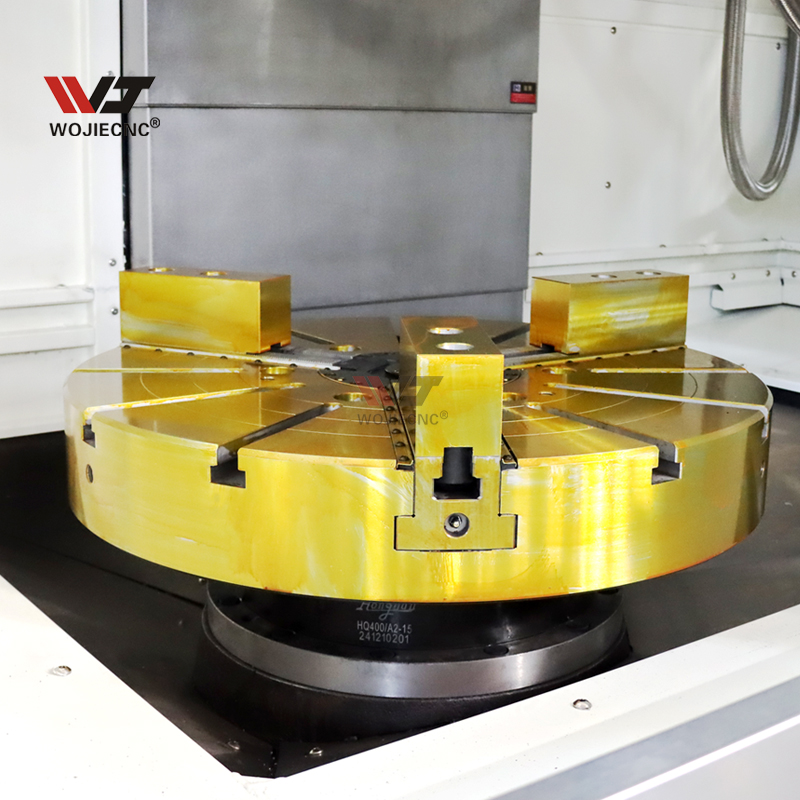

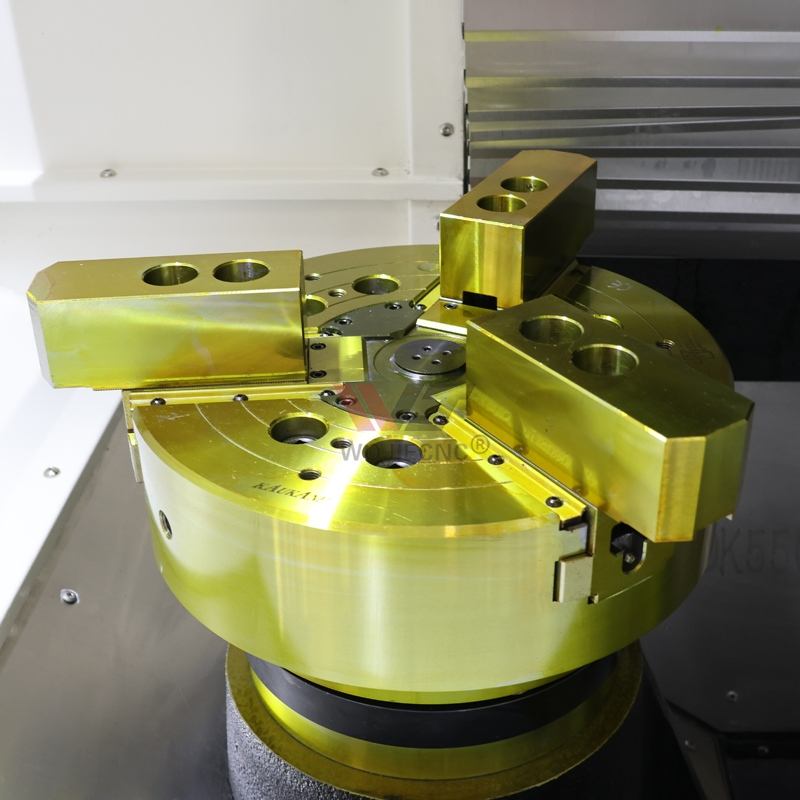

Worktable
A large golden rotary table with clamping fixtures, designed to hold heavy-duty workpieces securely and provide stable rotational accuracy.
|
 |
 |
|

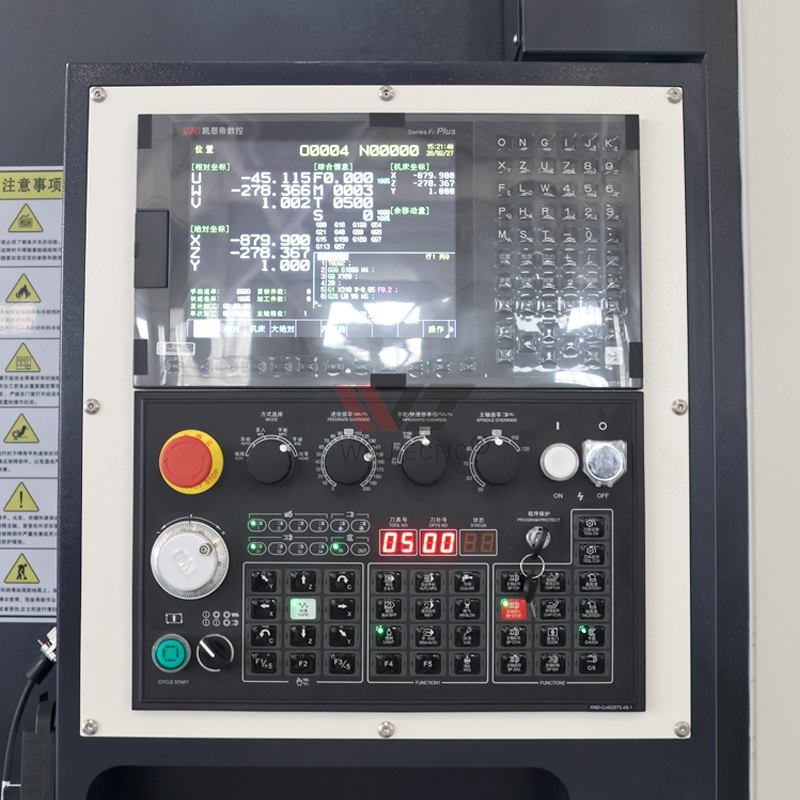

CNC Control Panel
An advanced numerical control system with a user-friendly interface, including a display, keypad, and emergency stop button for precise programming and operation.
|
Lubrication System

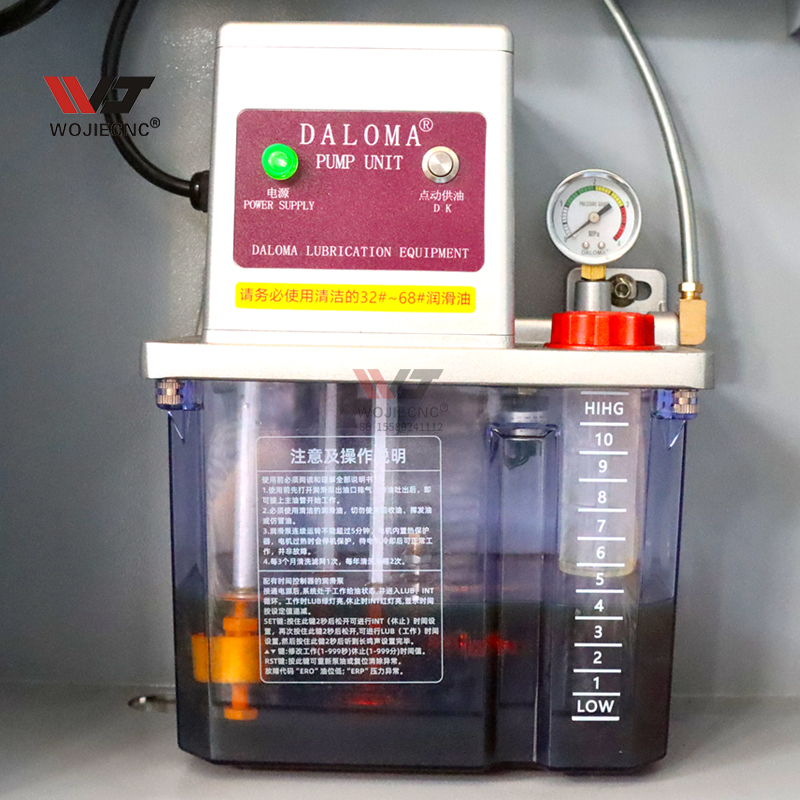

An automatic lubrication unit (BALOMA brand) with a pressure gauge and oil reservoir, delivering consistent lubrication to extend the machine’s service life.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
