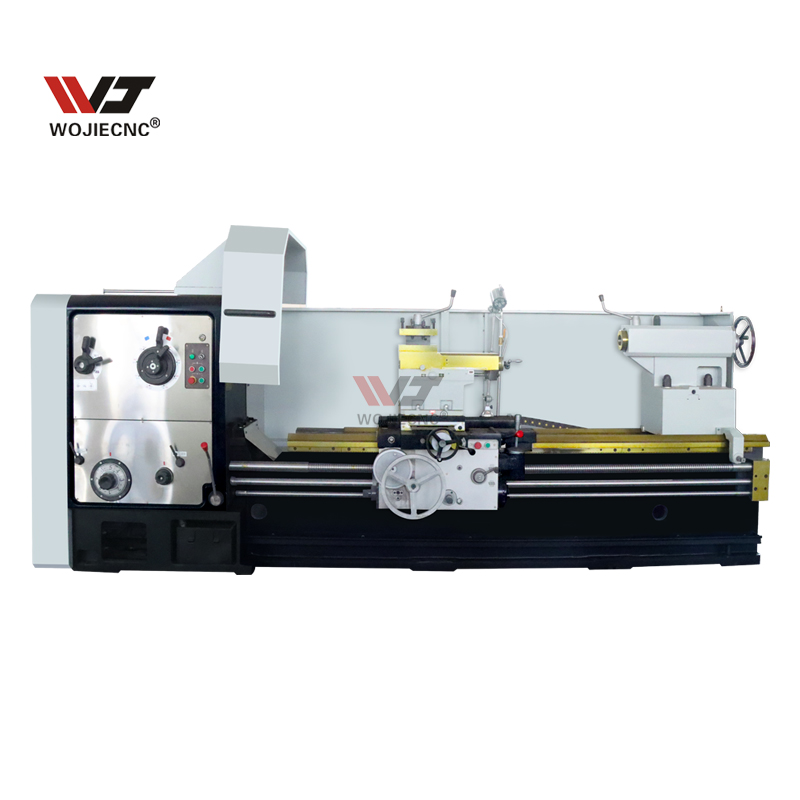

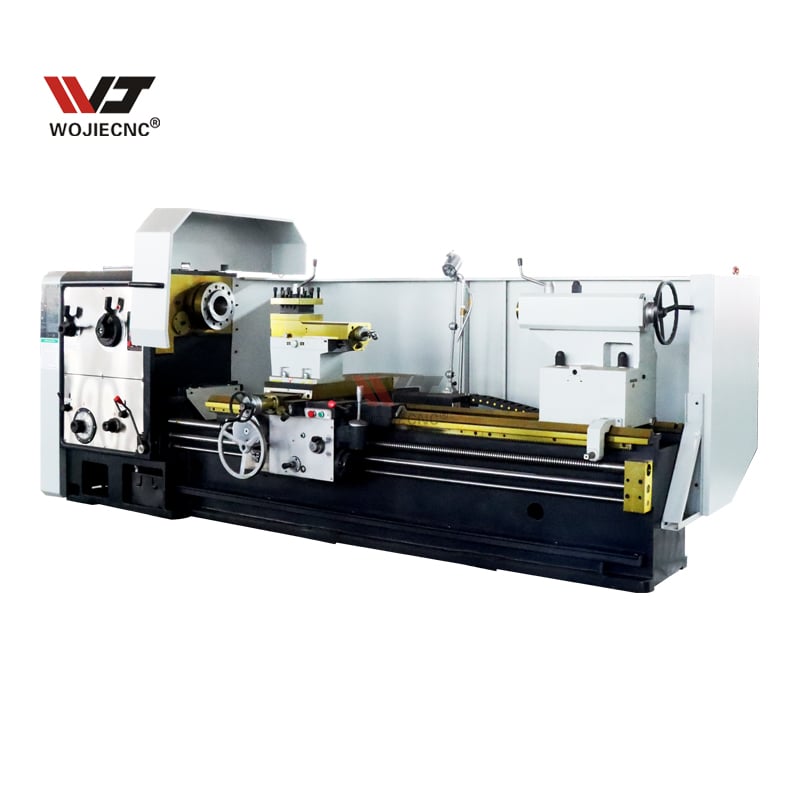

Conventional Precision Lathe Machine CW61100 Horizontal Manual Heavy Duty High Rigidity Energy Saving 550MM Guide Rail
|
Attribute |
Value |
|
Type |
Horizontal |
|
Machining Capacity |
Heavy Duty |
|
Max. length of workpiece (mm) |
2000 |
|
Voltage |
Customer's Requirement |
|
Spindle taper |
Other |
|
Machinery test report |
Provided |
|
Warranty |
1 Year |
|
Key selling points |
Competitive Price |
|
Tool post stations |
4 |
|
Video outgoing-inspection |
Provided |
|
Max. weight of workpiece (kg) |
1000 |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Specifications:
|
Parameter |
Specification |
|
Type |
CW61100B |
|
Capacity |
|
|
Max. swing over bed |
1000 mm |
|
Max. swing over cross slide |
610 mm |
|
Distance between centers |
1500/3000 mm |
|
Guideway width |
755 mm |
|
Max. Load capacity |
6T |
|
Spindle |
|
|
Spindle bore |
130 mm |
|
Spindle bore taper |
Metric φ140/MT6 |
|
Spindle nose type |
A2-15 |
|
Spindle speed steps |
FWD. 21 steps |
|
Spindle speed range |
3.15-315 rpm |
|
Chuck |
Φ1000mm 4-jaw manual |
|
Turret |
|
|
Turret/Tool post |
Manual turret 4 position |
|
Tool shank size |
45×45mm |
|
Feed |
|
|
X axis travel |
520 mm |
|
Z axis travel |
1350/2850 mm |
|
X axis feed grade/range |
56/0.05-6 mm/r |
|
Z axis feed grade/range |
56/0.1-12 mm/r |
|
X axis rapid traverse |
1870 mm/min |
|
Z axis rapid traverse |
3740 mm/min |
|
Metric thread grade/range |
44/1-120 mm |
|
Inch thread grade/range |
31/28-3/8 TPI |
|
Module thread grade/range |
45/0.5-60 mm |
|
DP thread grade/range |
30/56-1 D.P. |
|
Tailstock |
|
|
Tailstock quill diameter |
Φ140 mm |
|
Tailstock quill taper |
MT6 |
|
Tailstock quill travel |
300 mm |
|
Motor |
|
|
Main spindle motor |
22 kw |
|
Rapid traverse motor |
1.5 kw |
|
Coolant pump motor |
0.125 kw |
|
Dimension |
|
|
Width × Height |
2000×1950 mm |
|
Length |
4600 / 6100 mm |
|
Net weight |
10.6 / 11.7 T |
Detailed Images:
 |
 |
|

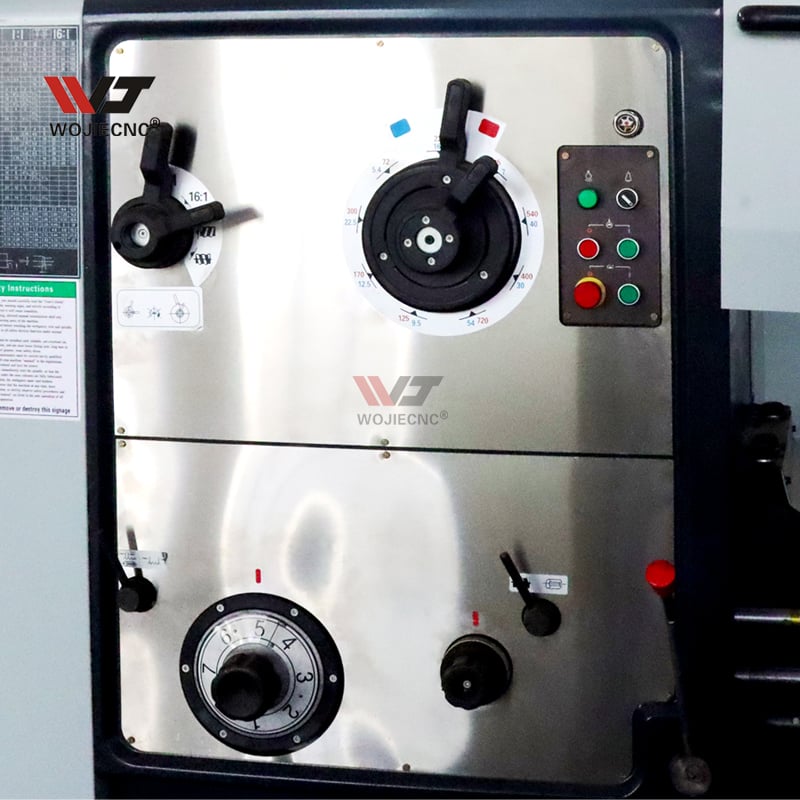

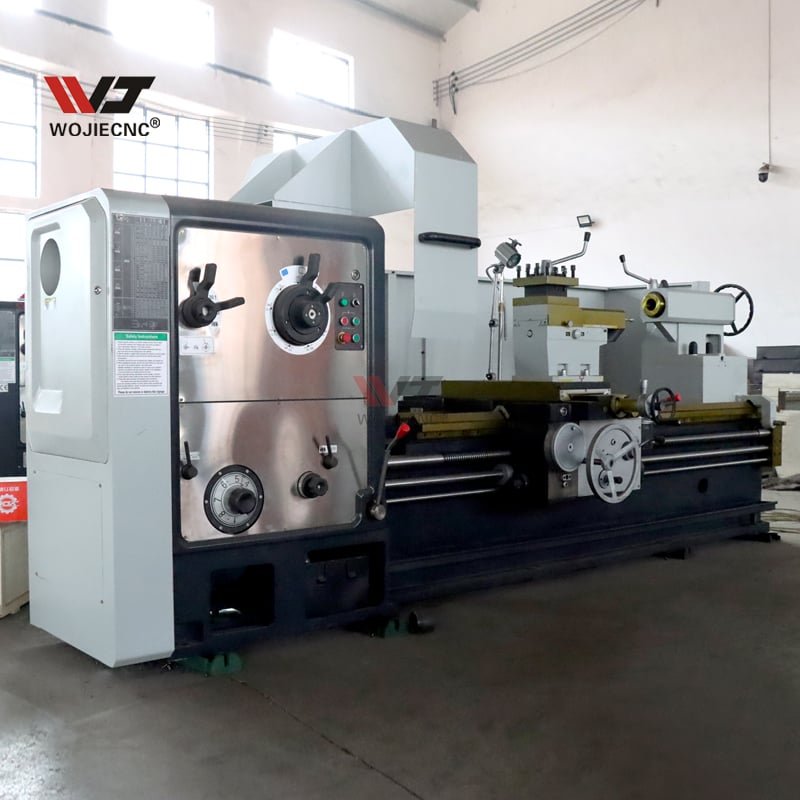

Main Control Panel
This is the central operation hub of the CW61100 lathe. It features precision selector knobs and handwheels for adjusting spindle speed (3.15–315 RPM) and feed rates (0.05–12 mm/r). The panel includes intuitive controls for spindle forward/reverse, rapid traverse, and a dedicated emergency stop button. Its stainless steel construction ensures durability and easy cleaning, even in heavy-duty workshop environments.
|

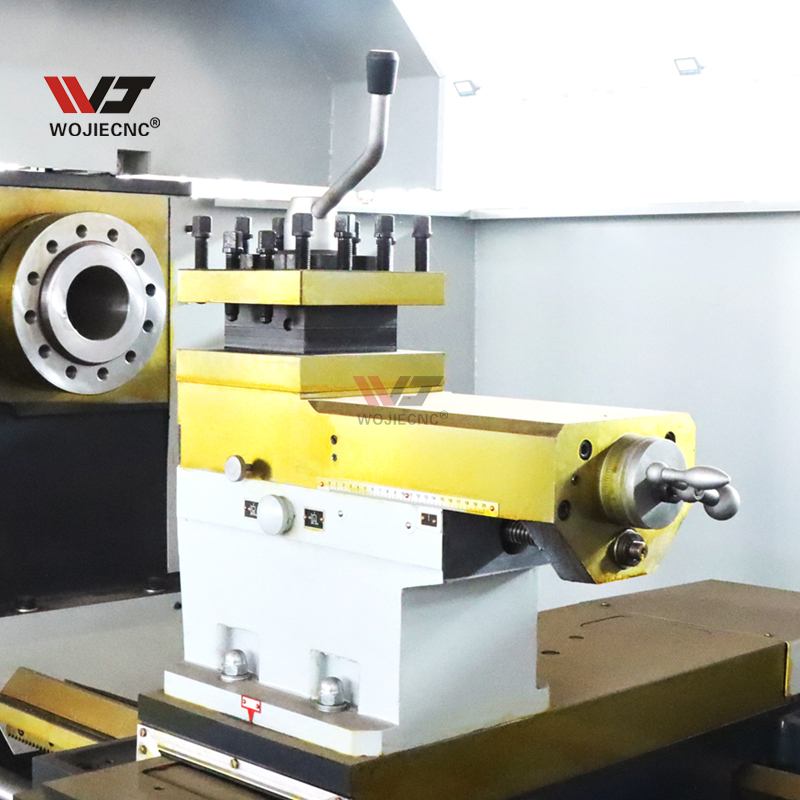

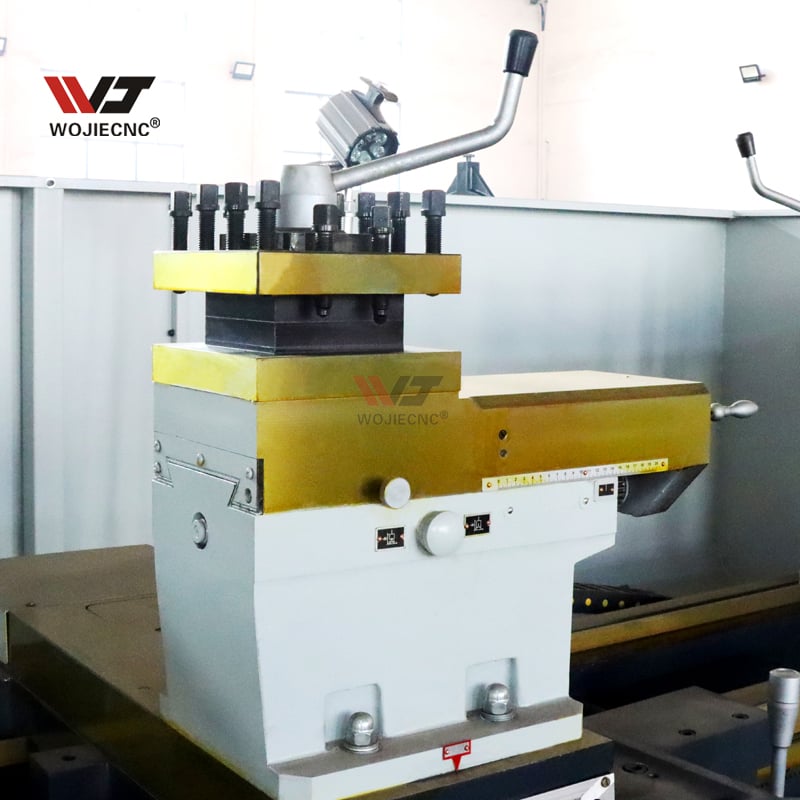

4-Position Manual Tool Post
5-This heavy-duty 4-station turret is designed for quick tool changes. It accommodates tool shanks up to 45×45mm, allowing four different cutting tools to be mounted simultaneously. This eliminates repeated tool setup, boosting efficiency for turning, facing, boring, and threading operations. The rigid, robust structure ensures high stability during heavy cuts.
|
 |
 |
|

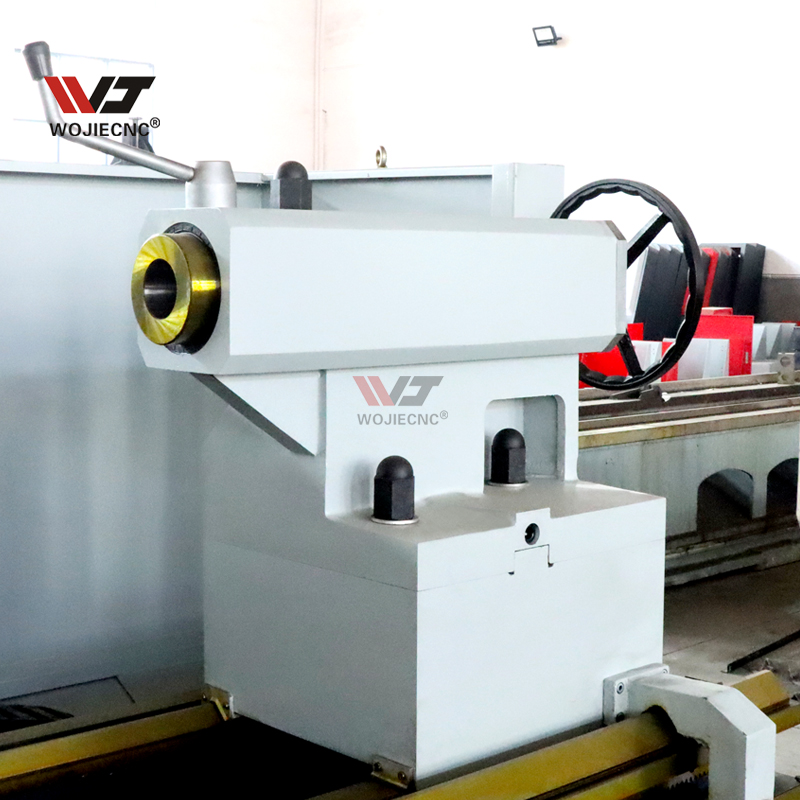

Tailstock Assembly
The heavy-duty tailstock provides rigid support for long workpieces. It features a large Φ140mm quill with an MT6 taper and 300mm travel, ideal for drilling, reaming, and supporting shafts. The smooth-feed mechanism ensures precise alignment and minimal vibration, which is critical for maintaining accuracy when machining long parts.
|

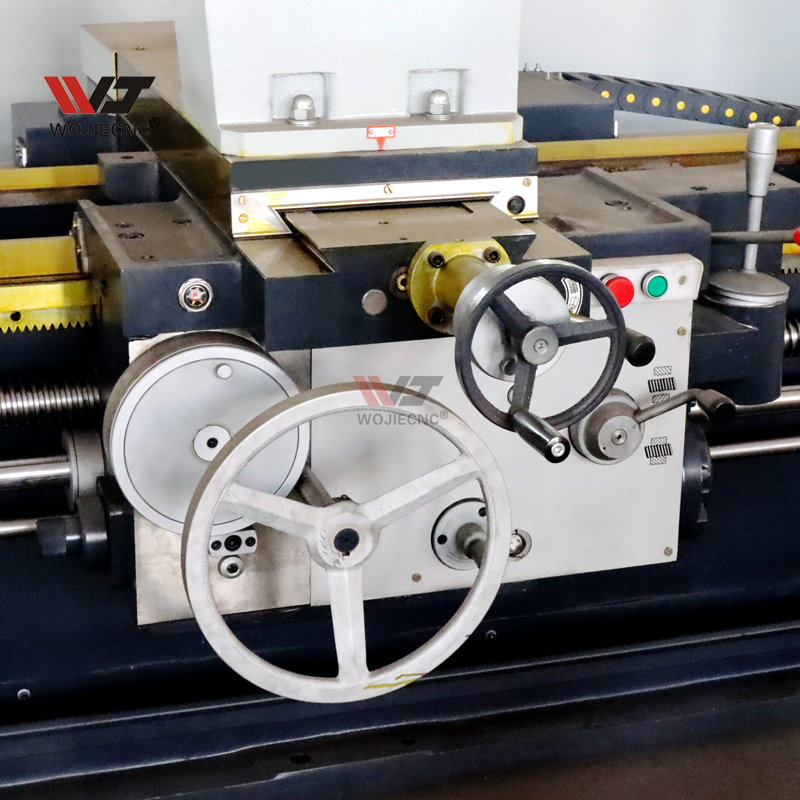

Saddle & Cross Slide Assembly
This assembly forms the lathe’s main tool-carrying structure. It includes the longitudinal (Z-axis) carriage and cross (X-axis) slide, built on precision-ground guideways for smooth, backlash-free movement. The large handwheels allow for fine manual adjustments, ensuring precise positioning of the cutting tool. This robust design guarantees stability and accuracy even under heavy cutting loads.
|
