Description:
Product Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Specifications:
| SPECIFICATIONS | Units | VMC650 |
| Table size | mm | 900*400 |
| X axis travel | mm | 650 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 400 |
| T slot(number-width*pitch) | - | 3-18*120 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 469 |
| Distance between spindle nose and table surface | mm | 100-600 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Arm 16 |
| Max. tool diameter | mm | φ90 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 3800 |
| Overall dimension(L*W*H) | mm | 2400*2000*2550 |
Standard configuration
Armless type tool magazine
Automatic lubrication system
Cooling system
Heat Exchanger
Pneumatic system
Full Cover machine enclosure
Air system/ Air gun
Optional configuration
System:FANUC,Siemens,GSK etc
Arm type ATC
4axis or 5axis
Automatic chip conveyor
Spindle center coolant
Higher speed of Spindle
Air conditioner
Detailed Images:
 |
|
|

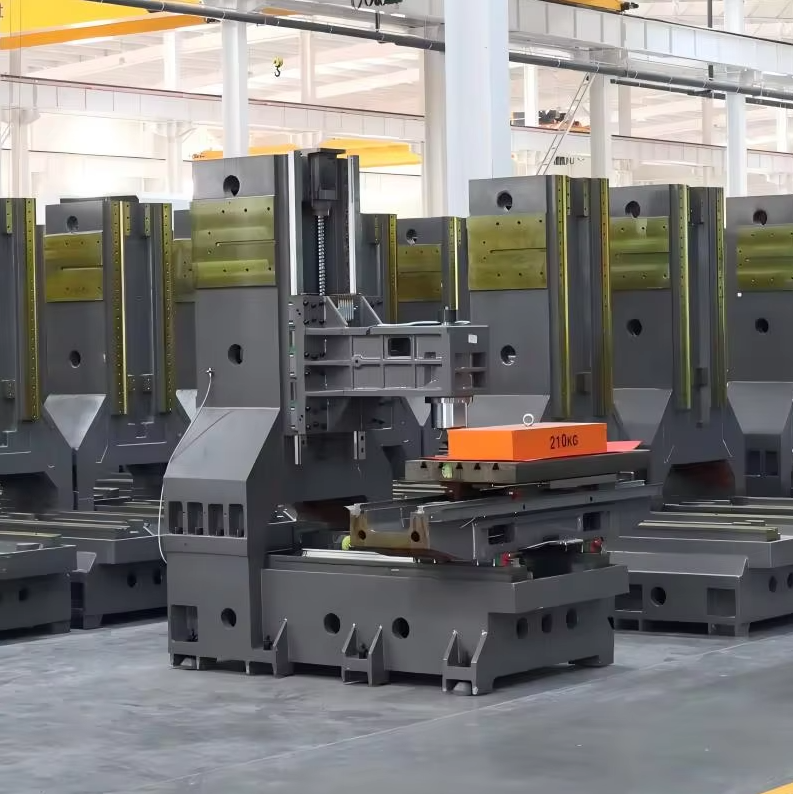

MACHINE CONSTRUCT
1. High strength high quality cast iron.
2. long span bed base and vertical column structure.
|
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40.
2. Spindle speed 8000rpm , can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.
|
|
|
 |
|
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail,positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.
|
LEAD SCREW AND COUPLING
1.Taiwan precision lead screw.
2. Lead screw bearing use FAG bearing, Coupling R+W directly connected.
|
 |
|
|

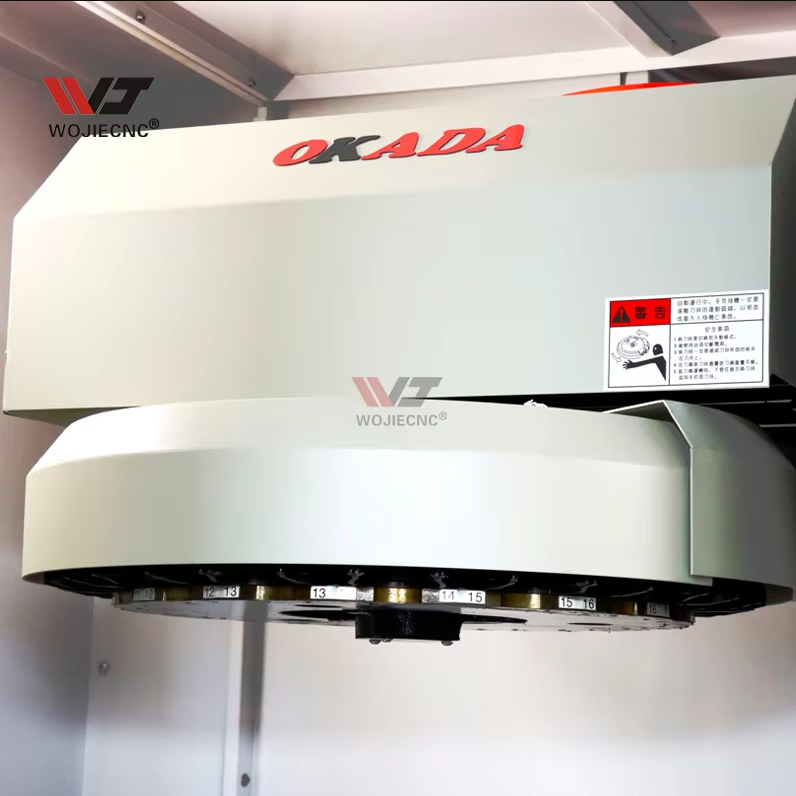

TAIWAN TOOL MAGAZINE
1. Standard 16 tools Hat tpye, Tool change time 4.5 seconds.
2. Brand: OKADA.
|
AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner.Cooling the electric box better.
|
|
|
 |
|
CONTROL SYSTEM
Standard: GSK / KND control. Optional : Siemens , FANUC, Syntec ect.
|
DELIXI ELECTRICAL COMPONENTS
1. With safety electrical components.
2. Optional :SCHNEIDER Brand
|
|
|
|
|
LUBRICATION SYSTEM
Automatic lubrication device.
|
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
