Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | CA6150 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $8550 |
| 5 sets $7500 | |
| Max. Swing Diameter (mm) | 500 mm |
| Spindle Motor Power(kw) | 7.5 kw |
| Packaging Details: | 3200*1200*1800 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Standard accessories:

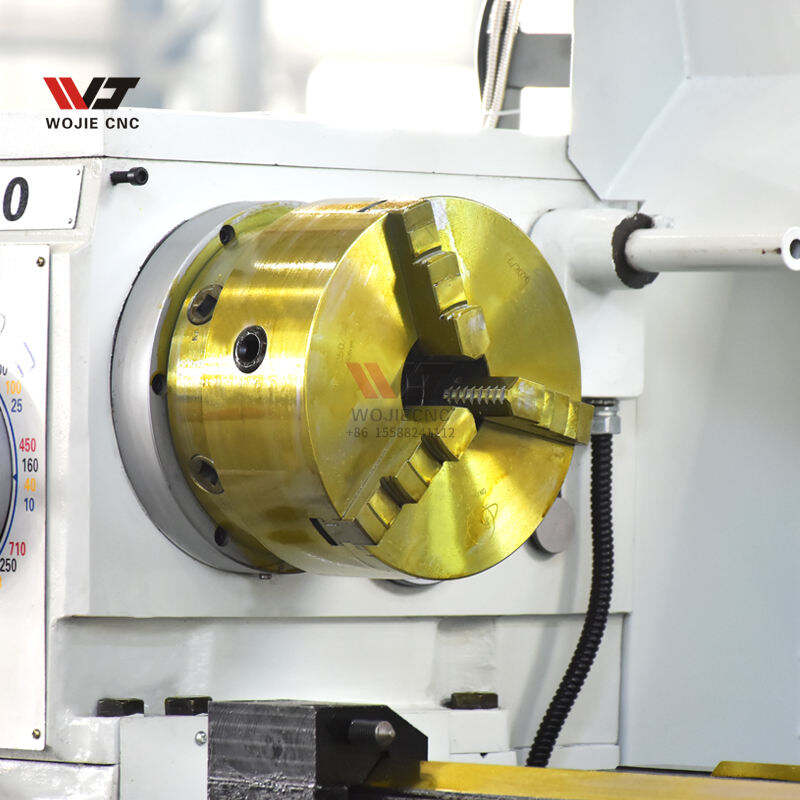

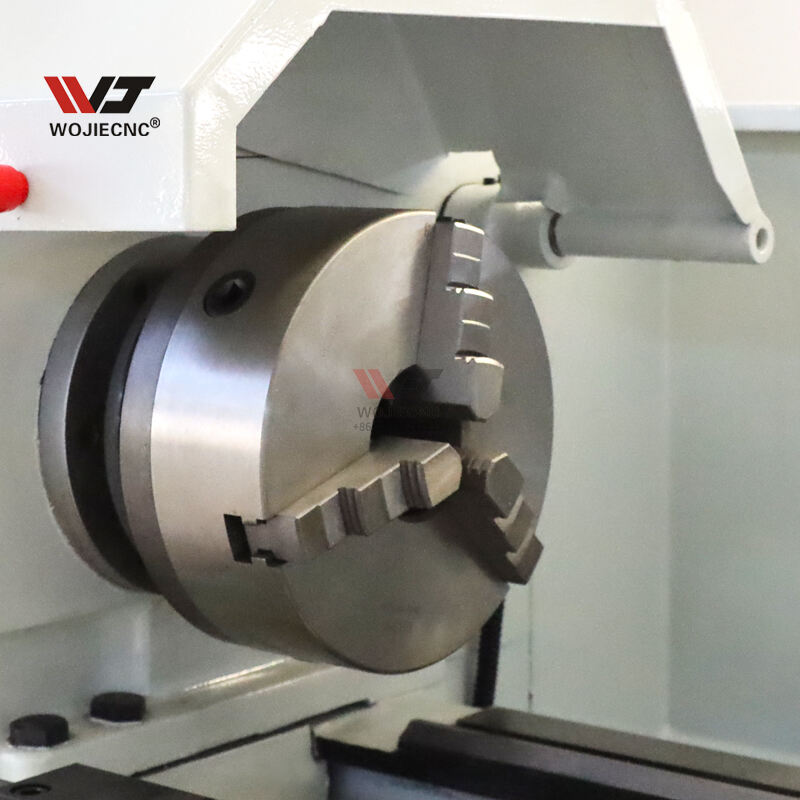

3-jaw manucl chuck
4 station electric turret

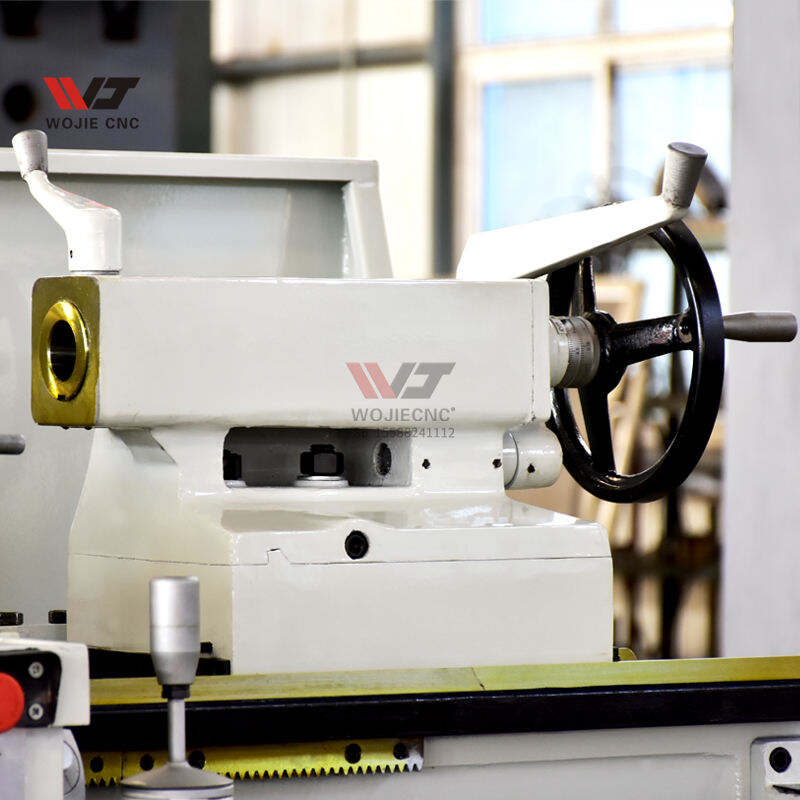

Manual tailstock

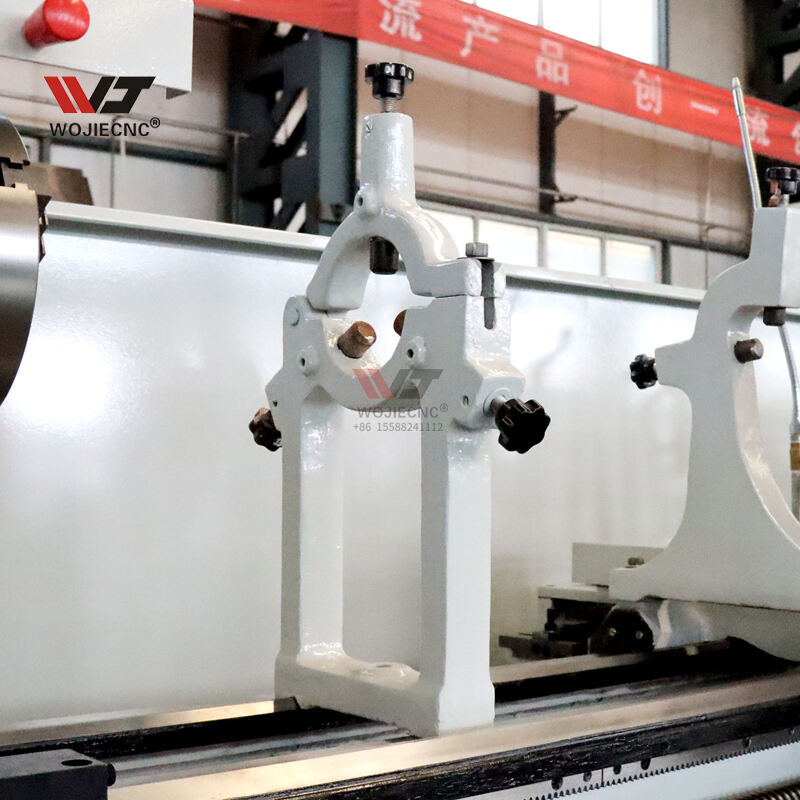

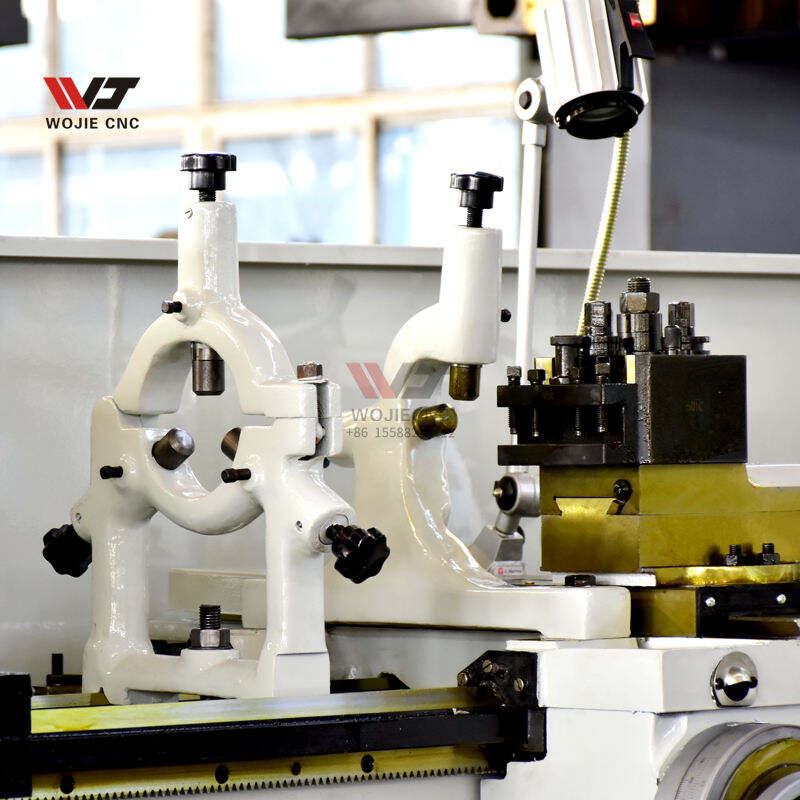

steady rest and follow rest (1500mm is standard)
Cooling system
Lubrication system
Back guard Work lamp
Tool box
Foot Break
Optional Accessories:

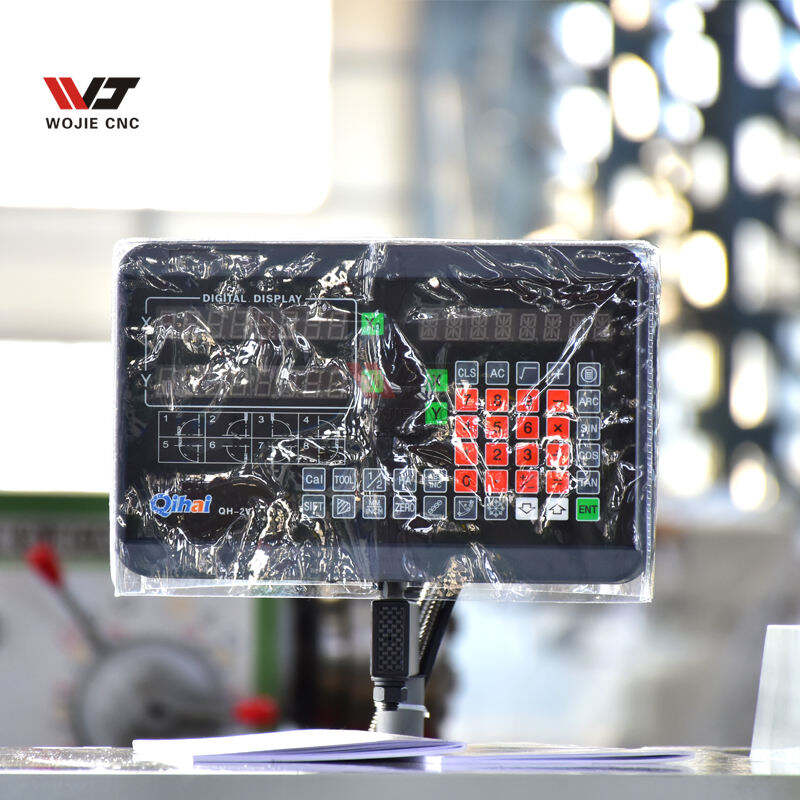

DRO
Quickly tool change
4-Jaw manual chuck
Specifications:
| Type | CA6140 | CA6150 | CA6161 | CA6166 |
| CA6240 | CA6250 | CA6261 | CA6266 | |
| Max. swing over bed | 400mm | 500mm | 610mm | 660mm |
| Max. swing over carriage | 210mm | 300mm | 370mm | 400mm |
| Max. swing in gap | 630mm | 720mm | 830mm | 880mm |
| Max. effective length in gap | 210mm | |||
| Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | |||
| Width of bed | 400mm | |||
| Section of turning tool | 25*25 mm | |||
| Main spindle motor | 7.5kw(10HP) | |||
| Spindle | ||||
| Spindle speed | 16--1400rpm(24step) | |||
| Spindle bore | 52mm (B: 80mm),(C: 105mm) | |||
| Spindle taper | No.6(MT6)(90 1:20)[113:20] | |||
| Feed | ||||
| NO. of feed | (64 kinds)(for each) | |||
| Range of metric threads | (1-192mm) (44 kinds) | |||
| Range of inch threads | (1-24tpi) (21kinds) | |||
| Range of module threads | 0.25-48 (module 39 kinds) | |||
| Range of diametral pitch threads | 1-96DP (37 kinds) | |||
| Tailstock | ||||
| Max. tailstock spindle travel | 150mm | |||
| Tailstock spindle diameter | 75mm | |||
| Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | |||
| Packing dimensions (L*W*H) | ||||
| Overall dimensions for 750mm | 2440*1140*1750mm | |||
| Overall dimensions for 1000mm | 2700*1140*1750mm | |||
| Overall dimensions for 1500mm | 3200*1140*1750mm | |||
| Overall dimensions for 2000mm | 3700*1140*1750mm | |||
| Overall dimensions for 2200mm | 4030*1140*1750mm | |||
| Overall dimensions for 3000mm | 4800*1140*1750mm | |||
| Overall dimensions for 4000mm | 5680*1140*1750mm | |||
| Weight (kg) | ||||
| Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 |
| Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 |
| Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 |
| Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 |
| Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 |
| Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 |
| Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 |

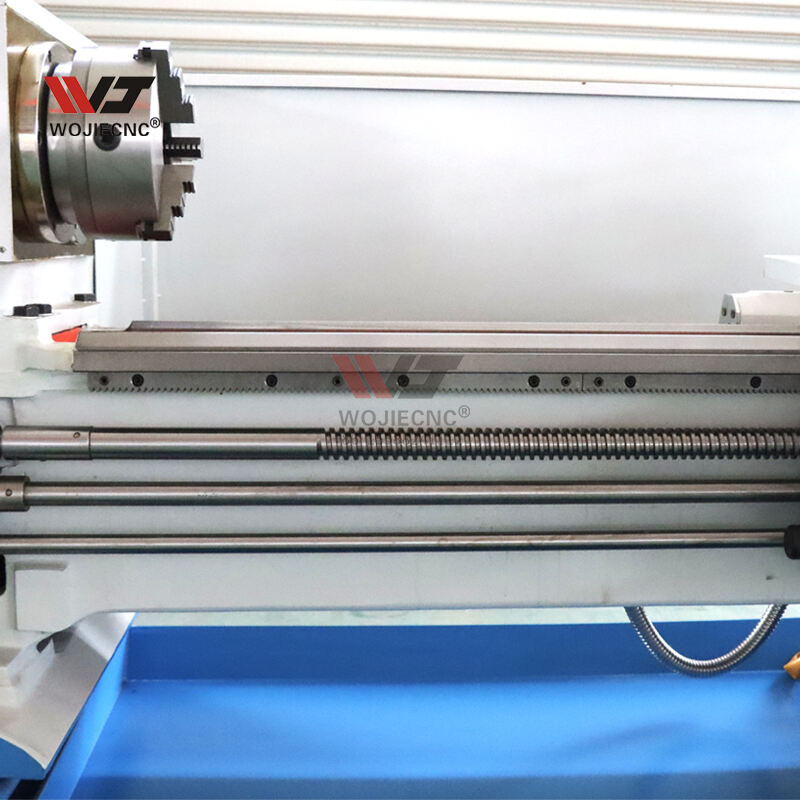

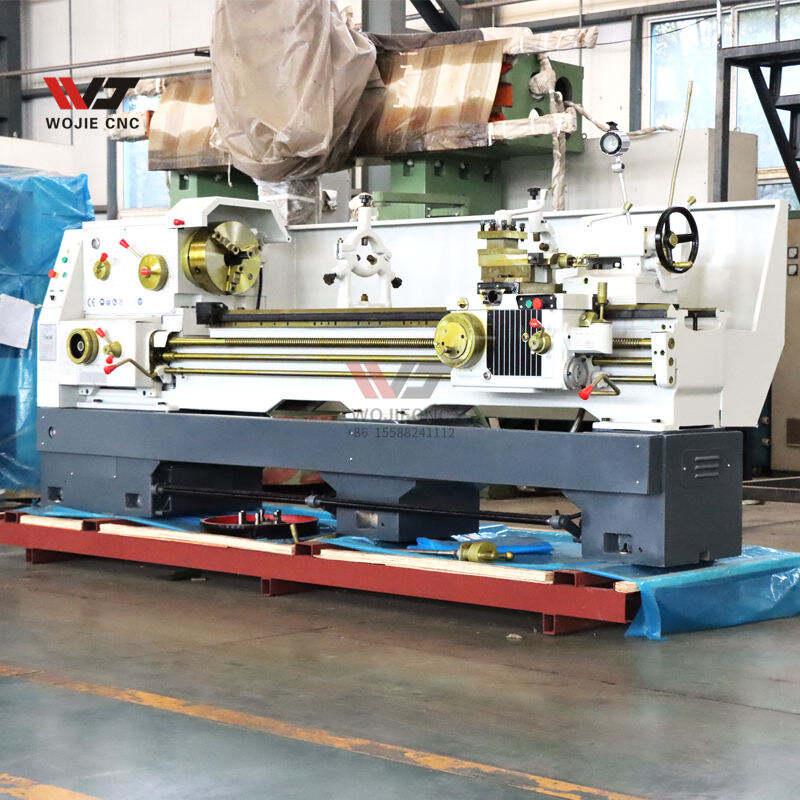

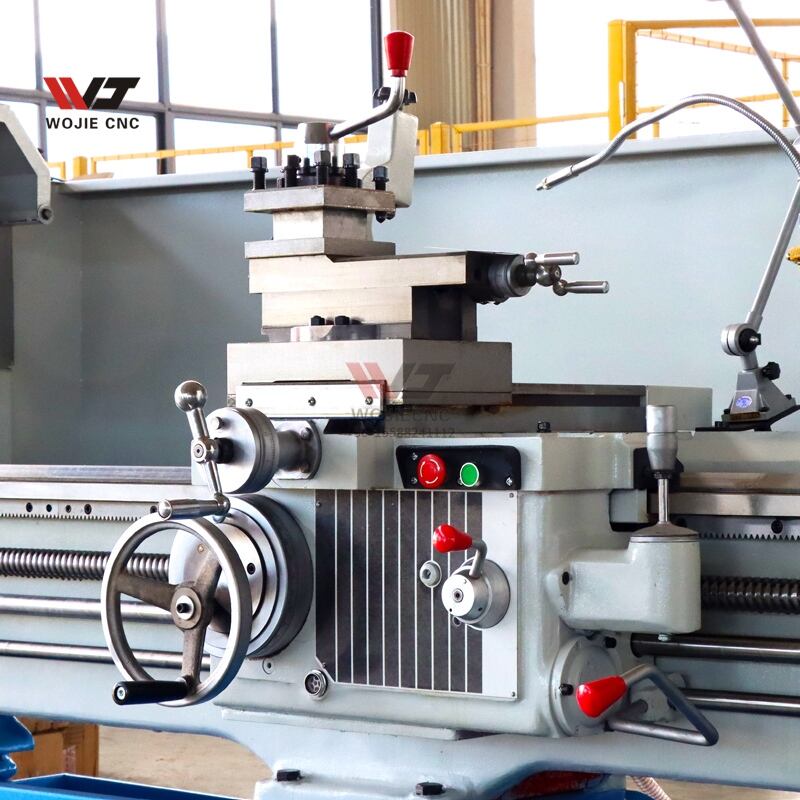

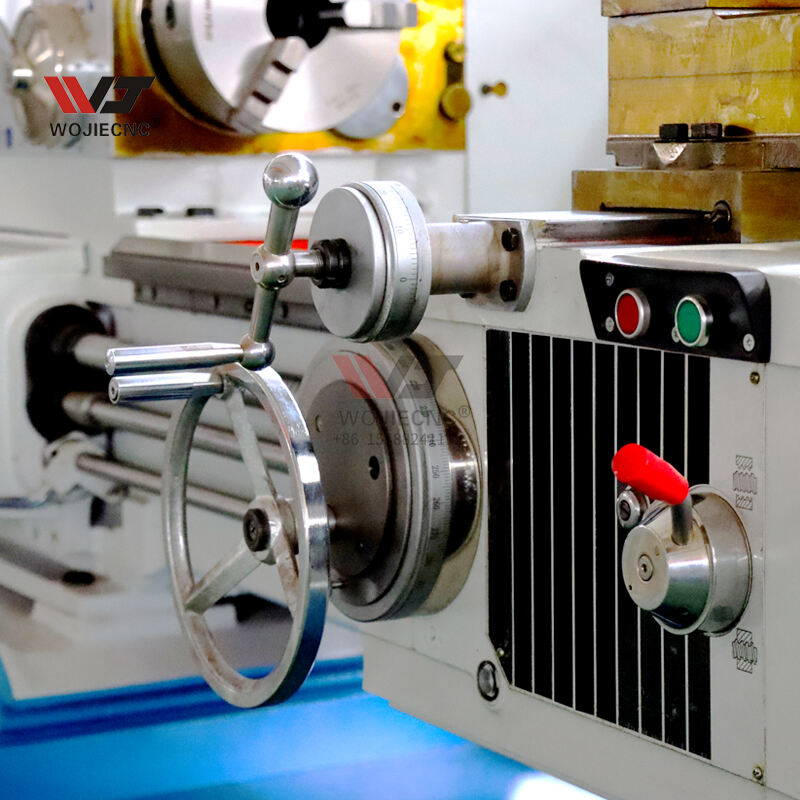

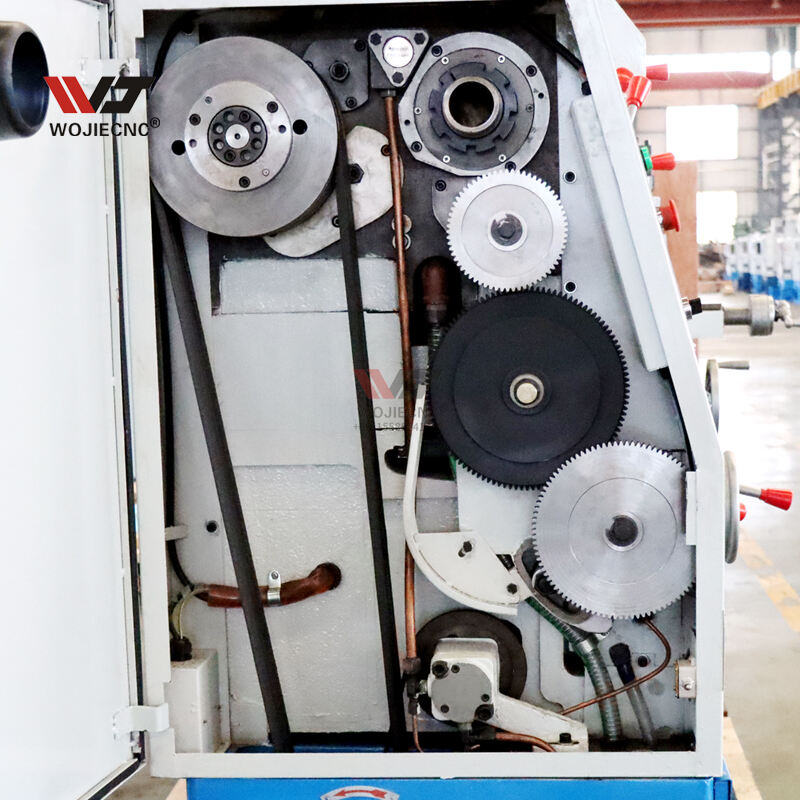

Detailed Images:

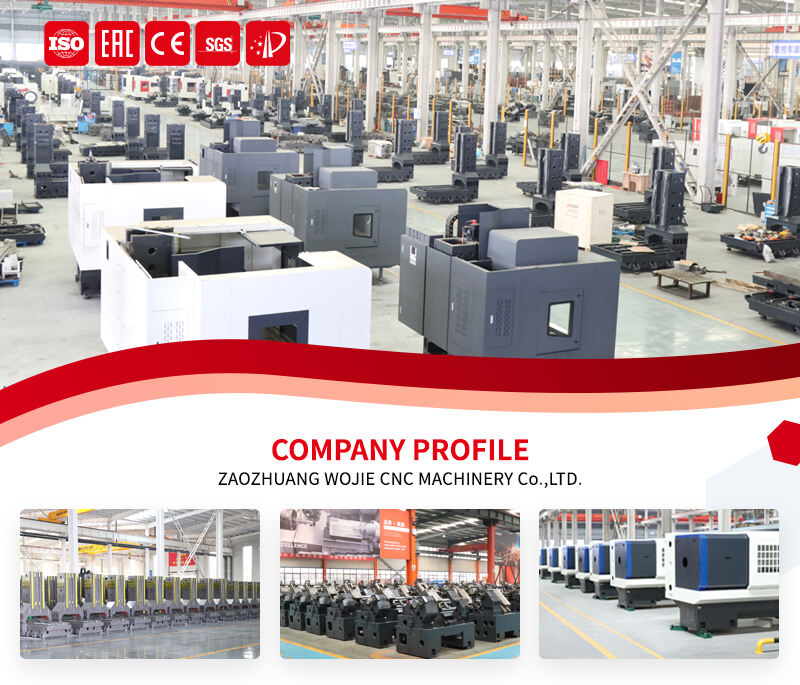

Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
