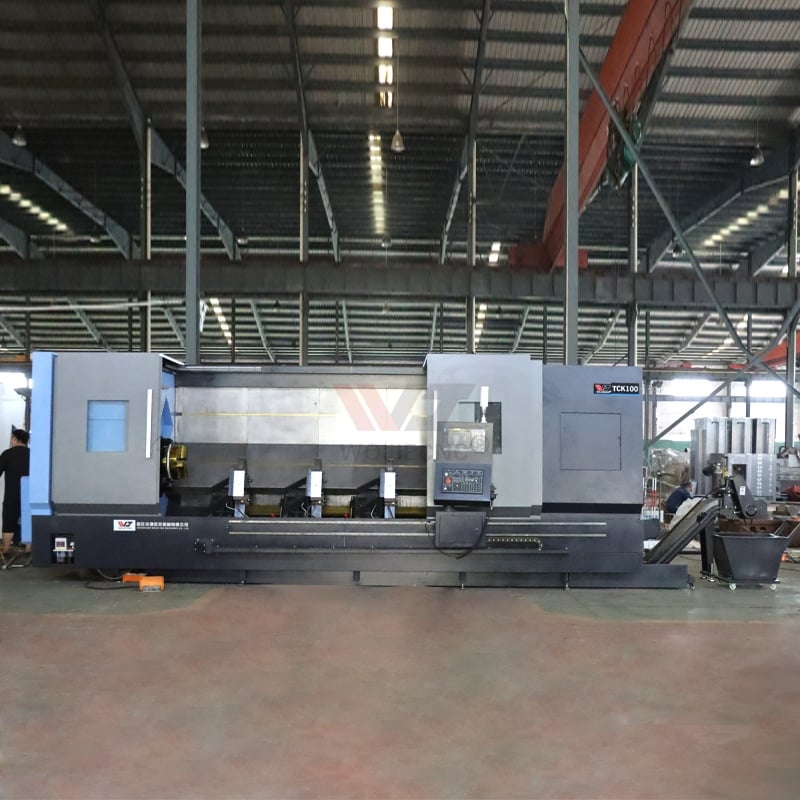

WJ1000 Lathe CNC Horizontal Heavy Duty Slant Bed Lathe Turning Machine Center CNC Torno Center Machining Services Price
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Specifications:
| Category | Item | Unit | WJ1000 |
| Processing Range | Max Swing Diameter Over Bed | mm | Φ1050 |
| Max Swing Diameter Over Saddle | mm | Φ800 | |
| Max Turning Diameter | mm | Φ900 | |
| Max Turning Diameter (with Y-axis) | mm | Φ750 | |
| Center Distance | mm | 1600/3100/4100/5100 | |
| Spindle | Spindle Nose Type | mm | A2-15 |
| Spindle Through Hole Diameter | mm | 132 | |
| Bar Capacity | mm | 120 | |
| Spindle Speed | r/min | Max 1500 | |
| Spindle Motor Power | Kw | 37/45 | |
| Gearbox | Optional | Automatic Shifting | |
| Max Spindle Output Torque | N·m | 4500 N·m | |
| Fixture | Chuck | inch | 18/21/24 |
| Tailstock | Tailstock Sleeve Diameter | mm | 180 (Internal Rotating Structure) |
| Tailstock Sleeve Stroke | mm | 180 | |
| Tailstock Movement Mode | / | Standard Hydraulic Programmable / Optional Servo Programmable | |
| Optional Sub-spindle | Sub-spindle Nose Type | mm | A2-8 |
| Sub-spindle Output Torque | N·m | 500 | |
| Tailstock Movement Mode | / | Servo Programmable Fully Automatic | |
| Saddle | Tilt Angle | DEG | 45°+30° (Y-axis) |
| Travel Distance (X-axis) | mm | 500 | |
| Travel Distance (Y-axis) | mm | 200(±100) | |
| Rapid Traverse Speed (X/Z-axis) | m/min | 12 | |
| Servo Motor Power (X/Z-axis) | KW | 4 | |
| Turret | Type | / | Servo Horizontal 12-station Hydraulic |
| Number of Tool Positions | / | 12-station | |
| Tool Size (Turning / Boring) | mm | 32×32/Φ60 | |
| Turret Disk Diameter | mm | 520 | |
| Turret Model | / | BMT85 (Live Turret, Matching) | |
| Live Tool Power | KW | 15 |
Standard Accessories:
1. Taiwan HIWIN high-precision roller linear guide ways (65/55 specification)
2. Japan THK high-precision ball screw
3. Taiwan Hartford hydraulic chuck
4. Hydraulic tailstock (internal rotating structure)
5. Taiwan hollow rotary cylinder 6. 12-station servo hydraulic turret (Taiwan King Kong core)
Optional Accessories:
1. CNC System: GSK, KND, FANUC oiTF, Siemens, Mitsubishi
2. Main Motor: Servo 37/45 KW
3. Turret: 12-station BMT85 live turret (Taiwan original, 15KW power)
4. 18"/21"/24" non-through hole hydraulic chuck(Taiwan)
5. 18"/21"/24" through hole hydraulic chuck(Taiwan)
6. Side-mounted chain type chip conveyor (optional oil-water separation mechanism)
7. Taiwan SYH C-type self-centering hydraulic steady rest (servo-driven)
8. Sub-spindle (A2-8 type, 500NM output torque)
9. Y-axis (200mm±100mm travel, 45+30° tilt angle)
10. Inverter 11 KW
Detailed Images:
 |
 |
|

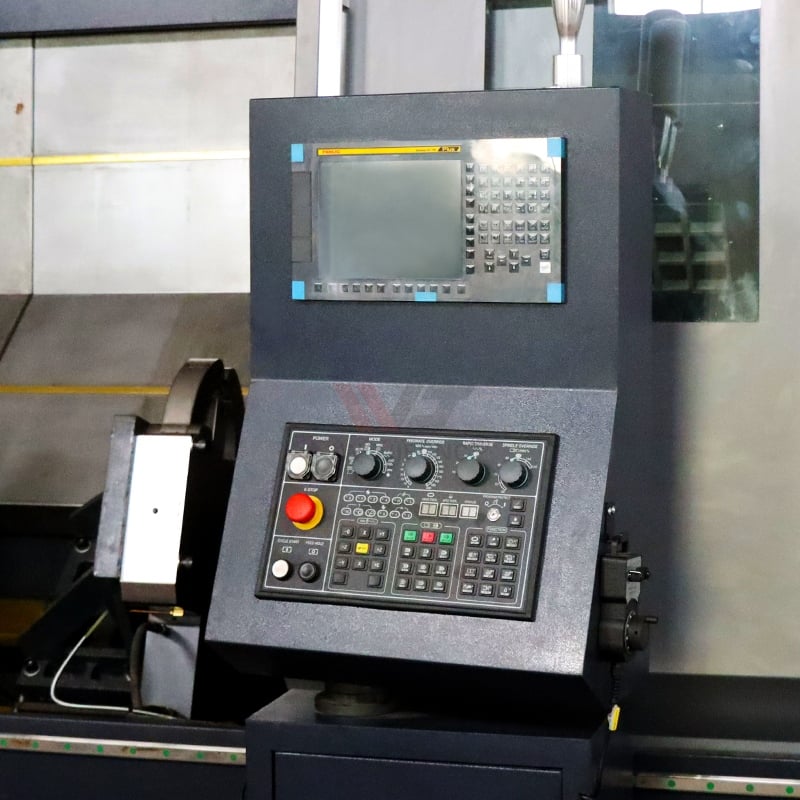

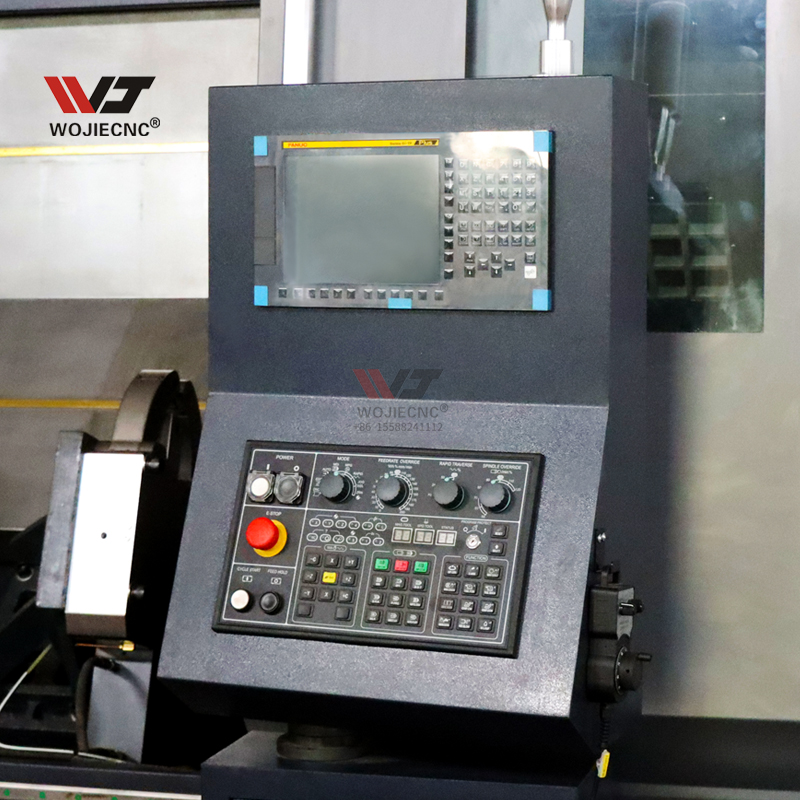

Control Panel
Title for YouTube Clip:WOJIE WJ1000 CNC Lathe | Fanuc Control Panel Overview
Full Description:This is the intelligent control console of the WOJIE WJ1000 CNC lathe, equipped with a Fanuc CNC system (standard configuration).
· The large LCD screen provides clear visualization of machining programs, real-time parameters, and alarm information.
· The custom operator panel features dedicated knobs for mode selection (MODE), rapid traverse override, spindle speed override, and feed rate override, allowing precise manual control during setup and operation.
· A prominent emergency stop button ensures immediate machine shutdown in critical situations, meeting international safety standards.
· Shortcut keys for cycle start, feed hold, and tool offset adjustment streamline daily machining operations.
|

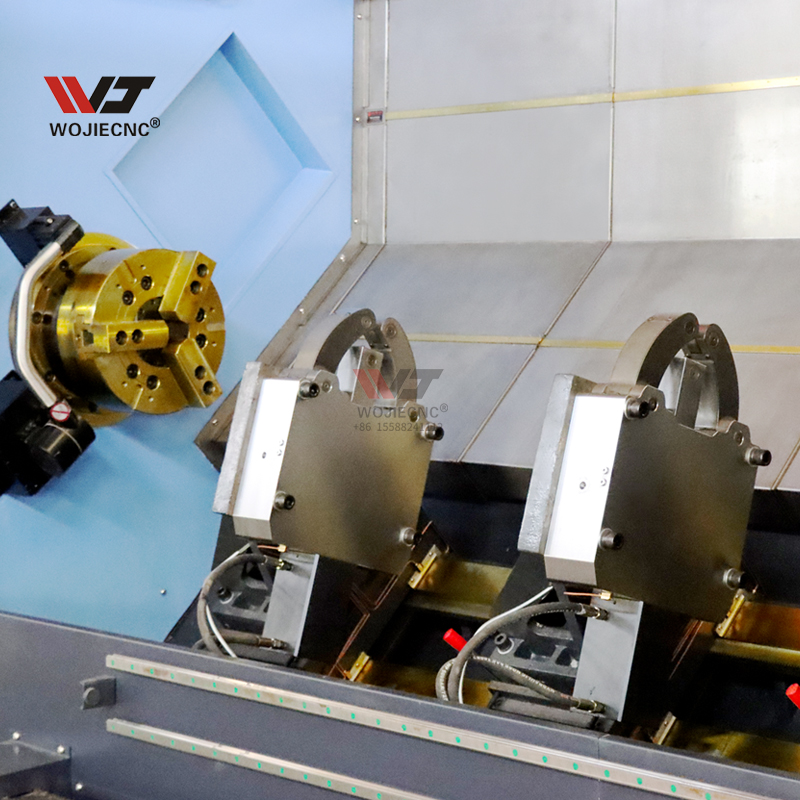

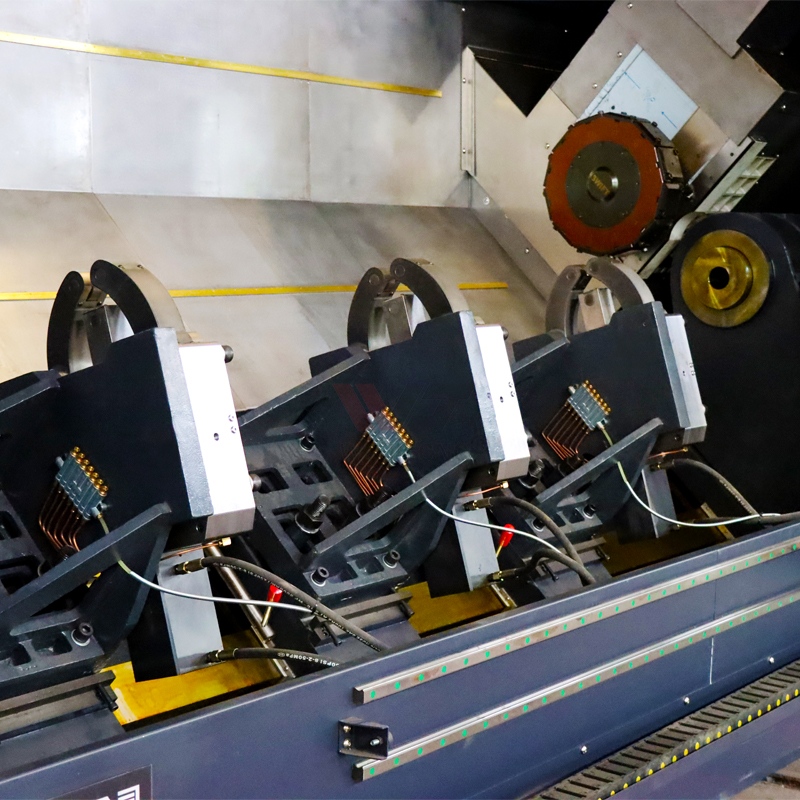

Workpiece Support & Steady Rests
Title for YouTube Clip:WOJIE 1000 | Heavy-Duty Steady Rests for Long Shaft Machining
Full Description:The WJ1000 is equipped with multiple heavy-duty hydraulic steady rests to support long and slender workpieces, effectively preventing chatter and deflection during heavy cutting.
· Each steady rest features a robust clamping mechanism with adjustable contact points to accommodate different workpiece diameters.
· The hydraulic actuation ensures uniform clamping force and stable support throughout the machining cycle.
· This setup is ideal for machining long shafts, pipes, and other components that require high rigidity and precision.
· The linear guide rails at the base allow for easy positioning along the Z-axis to match the workpiece length.
|
 |
 |
|

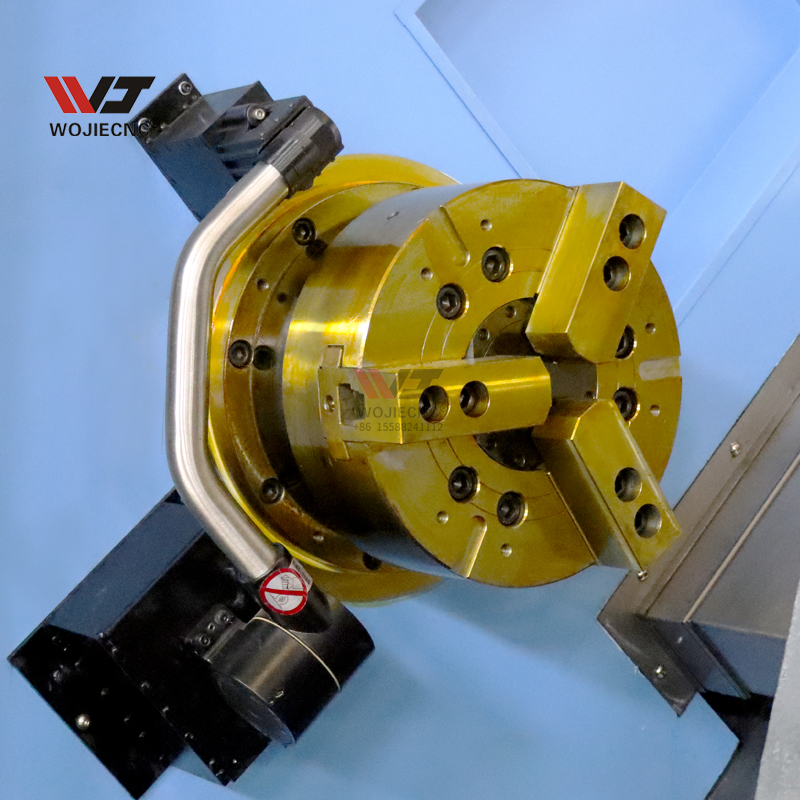

Spindle & Hydraulic Chuck
Title for YouTube Clip:WOJIE TCK1000 | High-Precision Spindle & Hydraulic Power Chuck
Full Description:This close-up showcases the high-performance spindle assembly and 3-jaw hydraulic power chuck of the WJ1000 lathe.
· The spindle is built with high-precision bearings, delivering excellent rotational accuracy and stability, even at high speeds.
· The hydraulic chuck provides fast, automatic clamping with strong gripping force, ensuring workpiece security during heavy-duty cutting.
· The coolant pipe integrated into the spindle delivers targeted cooling to the cutting zone, extending tool life and improving surface finish.
· The large spindle bore allows for the machining of bar stock with larger diameters, expanding the machine's application range.
|

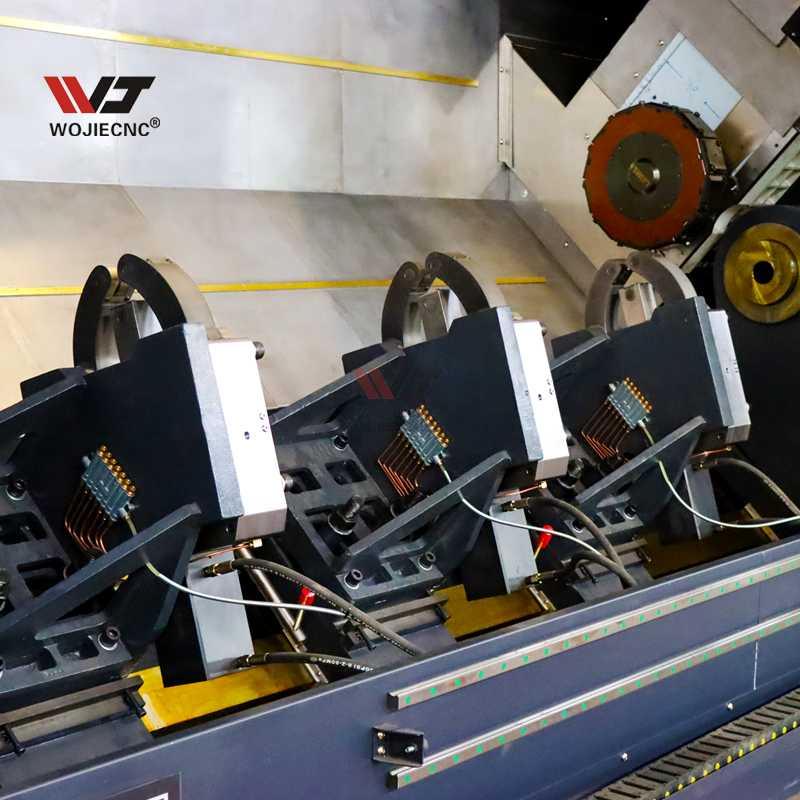

Multi-Steady Rest & Tool Turret
Title for YouTube Clip:WOJIE TCK1000 | Multi-Steady Rest Setup & Automatic Tool Turret
Full Description:This view highlights the WJ1000's multi-point support system and automatic tool turret, designed for complex, long-part machining.
· Three sets of steady rests work in tandem to provide comprehensive support for extra-long workpieces, eliminating vibration and ensuring dimensional accuracy.
· The automatic tool turret (disk type) enables fast tool changes with high positioning accuracy, reducing non-cutting time and improving productivity.
· The turret can hold a large number of tools (e.g., 12 stations), allowing for multi-step machining processes (turning, facing, grooving, threading) in a single setup.
· The machine's rigid structure and box-way guideways guarantee stable performance under heavy cutting loads.
|
