X6436 Hmt Manual Rotary Head Hobby Milling Machine for Metal

Description:

The main features:

1.The machine is with universal milling head,it can swivel 360 degrees.

2.The table can swivel left and right side 35 degrees.

3. The machine can automatic feed on three axes controlled through one gear box.

4.The ram is movable forward and backward.

5. The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously.

6. The machine is equipped with operation panel which is convenient for the operator.

Product main technical Specifications:

Specification	Unit	X6436 / X6432	X6436B / X6432B	X6436C / X6432C
Table size	mm	1325×360 / 1325×320	1325×360 / 1325×320	1600×360 / 1600×320
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed (X/Y/Z)	mm/min	30-750/20-500/15-375	30-750/20-500/15-375	30-750/20-500/15-375
Spindle taper	--	7:24 ISO50(H) / 7:24 ISO50(V)	7:24 ISO50(H) / 7:24 ISO50(V)	7:24 ISO50(H) / 7:24 ISO50(V)
Arm travel	mm	550	550	550
Distance from spindle nose to arm surface	mm	196--656	196--646	196--646
Distance from horizontal nose to arm surface	mm	20-480	20-470	20-470
Distance from spindle axis to worktable	mm	200	200	200
Spindle speed range	rpm	12 steps 60-1750(V) / 12 steps 60-1800(H)	12 steps 60-1750(V) / 12 steps 60-1800(H)	12 steps 60-1750(V) / 12 steps 60-1800(H)
T-slot (NO./Width/Pitch)	mm	3/18/80 / 3/18/70	3/18/80 / 3/18/70	3/18/80 / 3/18/70
Main motor power	kw	5.5(H) / 4(V)	5.5(H) / 4(V)	5.5(H) / 4(V)
AC servo motor torque	NM	10	10	10
Overall dimensions (L×W×H)	mm	1800×2100×2000	2300×2100×2000	2500×2100×2000
Net Weight	kg	2650 / 2600	2750 / 2700	2800 / 2750

Detailed Images:

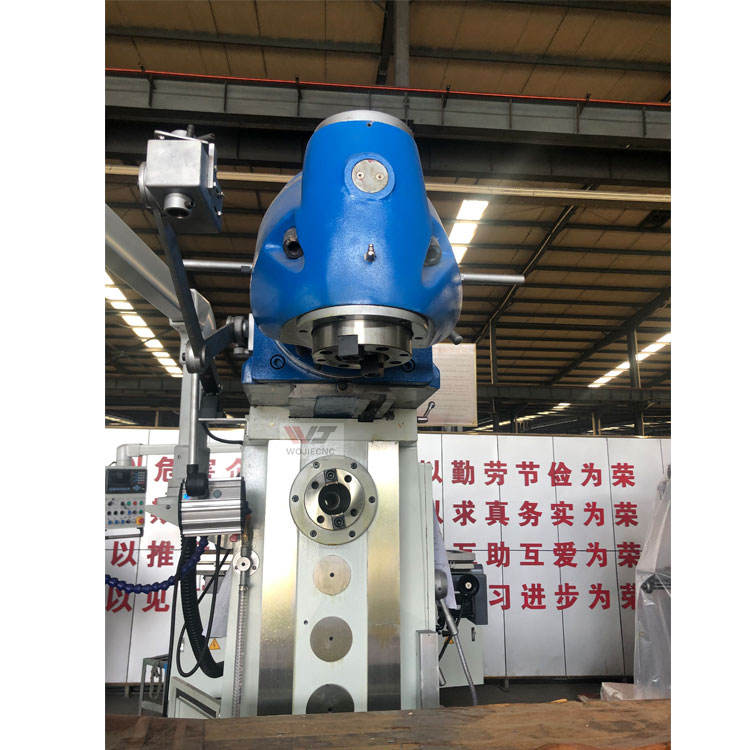

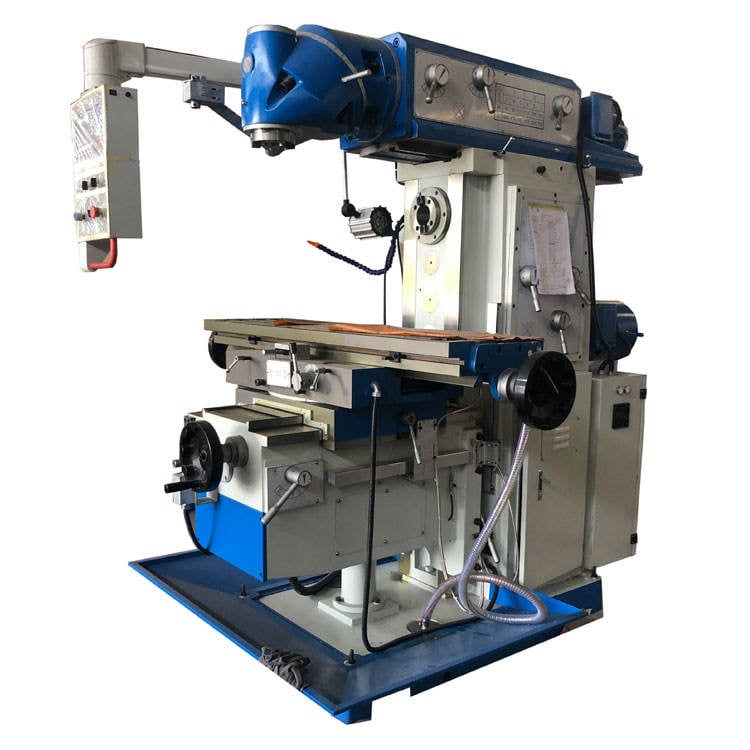

Overall Machine & Dual Spindle Assembly

This is the complete view of the X6436 universal milling machine, showcasing its core dual-spindle structure.

· The blue swivel vertical head at the top supports multi-angle machining, with an ISO50 taper spindle for heavy-duty cutting.

· The horizontal spindle interface (with flange mounting) is visible on the front column, enabling horizontal milling operations.

· The robust cast-iron column and base ensure high rigidity, while the digital readout (DRO) system on the left provides real-time position feedback for precision control.

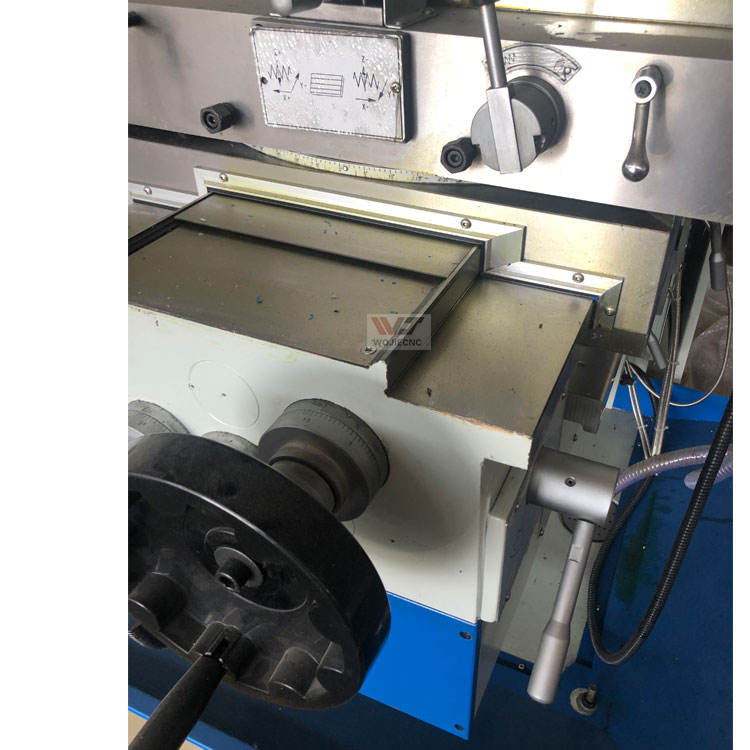

Worktable & Manual Control Area

This image focuses on the worktable and manual operation components:

· The large worktable features T-slots for secure workpiece clamping, with a travel range of 750/320/460mm (X/Y/Z).

· Manual handwheels and levers allow fine adjustment of table movement and spindle positioning, supporting both rough and finish machining.

· The protective guard and mechanical locks enhance operational safety during high-load cutting tasks.

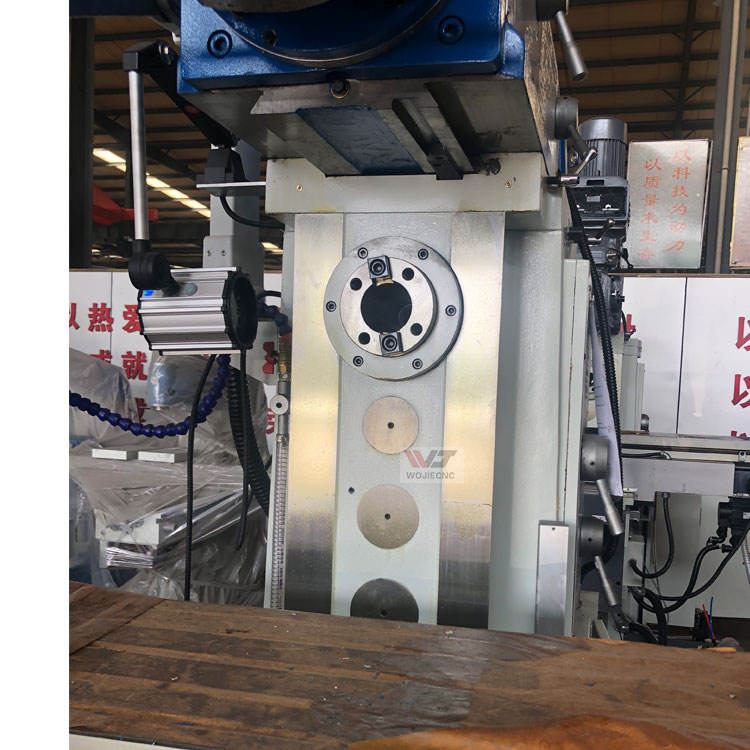

Column & Spindle Interface Close-up

This is a close-up of the column and spindle mounting area:

· It highlights the horizontal spindle flange (ISO50 taper) and the vertical spindle head assembly, demonstrating the machine’s dual-function design.

· Cable management and auxiliary components (like the coolant line and limit switches) are visible, showing the machine’s well-engineered internal layout for reliable long-term operation.

· The heavy-duty column structure minimizes vibration, ensuring stable performance during complex machining processes.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:

1. More than 60,000m² of the factory with more than 150 workers.

2. Strictly QC control with more than 24 steps testing processes.

3. 30+ years CNC machine manufacture experience factory.

4. 24 hours online service at any time.

5. Trade with customers in more than 150 countries around the world.

6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.

7. Support ODM OEM.

8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .When we receive the advance payment,

we will start to make production.when the machine is ready , we will take pictures to you.

after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine,

we can ready the machine within 15days.

if some special machines will be some longer.

The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.

You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.

Contact Us:

Recommended Products

High Speed Automatic Flat Bed CNC Lathe Machine CK6150 Horizontal CNC Lathe CK 6150*1000 for Metal

High Precision Slant Bed CNC Lathe WJ56A CNC Lathe Machine CNC Turning Milling Machine with Drive Tool

ZX6350C Universal Milling and Drilling Machine Multi-purpose Lathe Mill Drill

High Torque CNC Vertical Lathe VTC800 Metal CNC Single Column Vertical Lathe

High-Accuracy Angle Steel Metal Automatic Vertical Slotting Machine B5040

Universal Precision Manual Lathe Machine CA6150 1000mm 2000mm for Metal Turning

Attribute	Value
type	VERTICAL
machining capacity	Medium Duty
table travel (x) (mm)	1300 mm
table travel (y) (mm)	320 mm
table travel (z) (mm)	450 mm
spindle taper	ISO50
voltage	380V
warranty	1 Year
key selling points	High Safety Level
range of spindle speed (r.p.m)	60 - 1750
weight (kg)	2480
