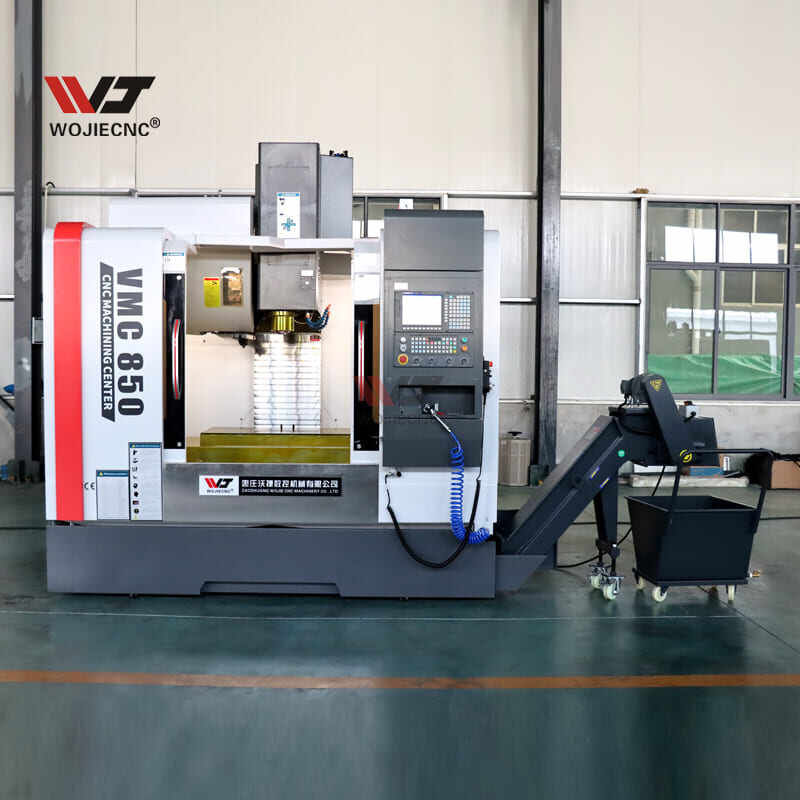

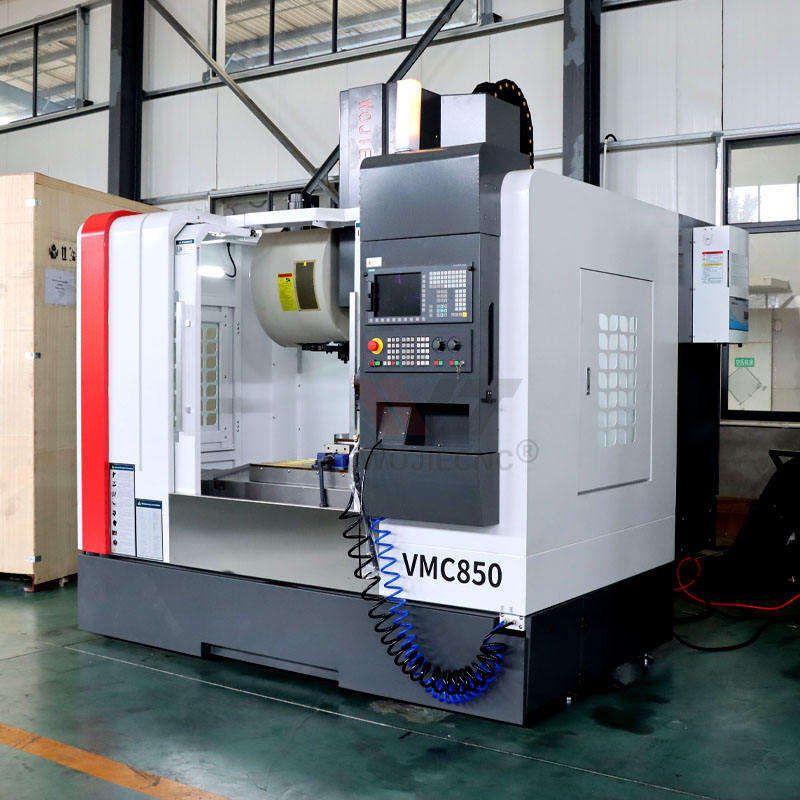

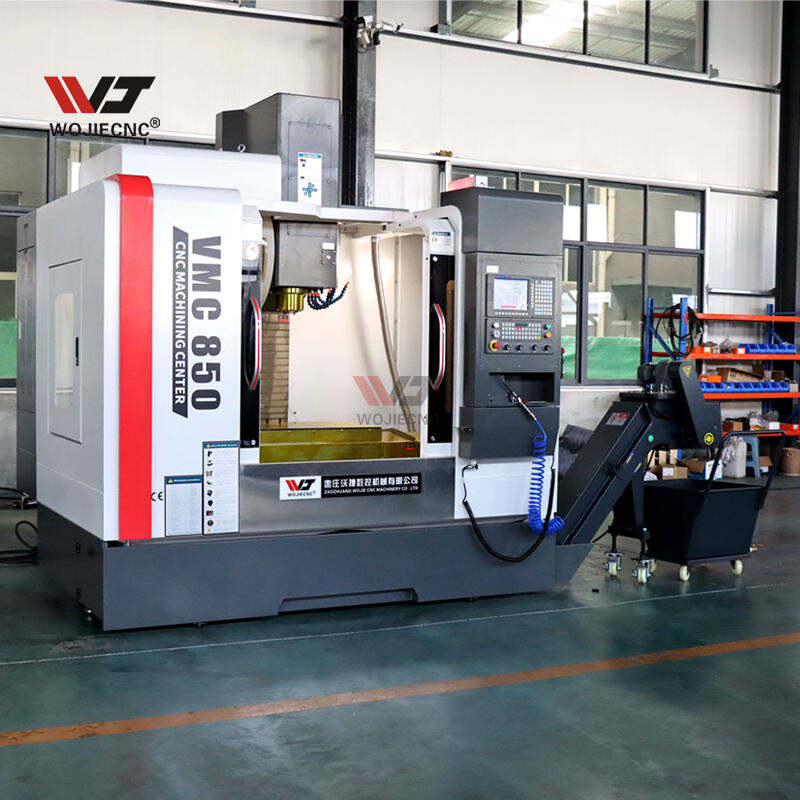

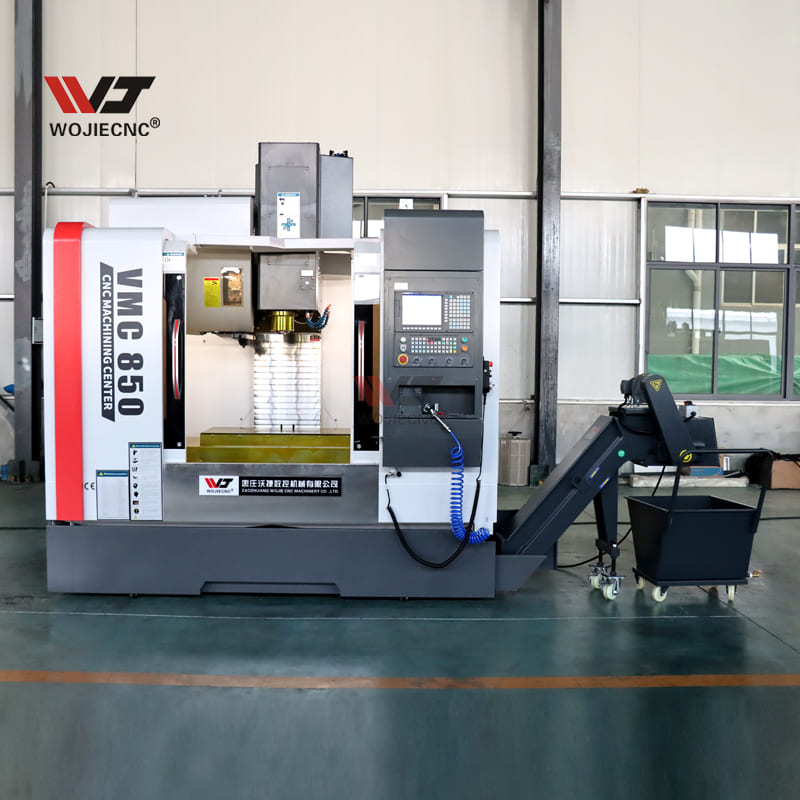

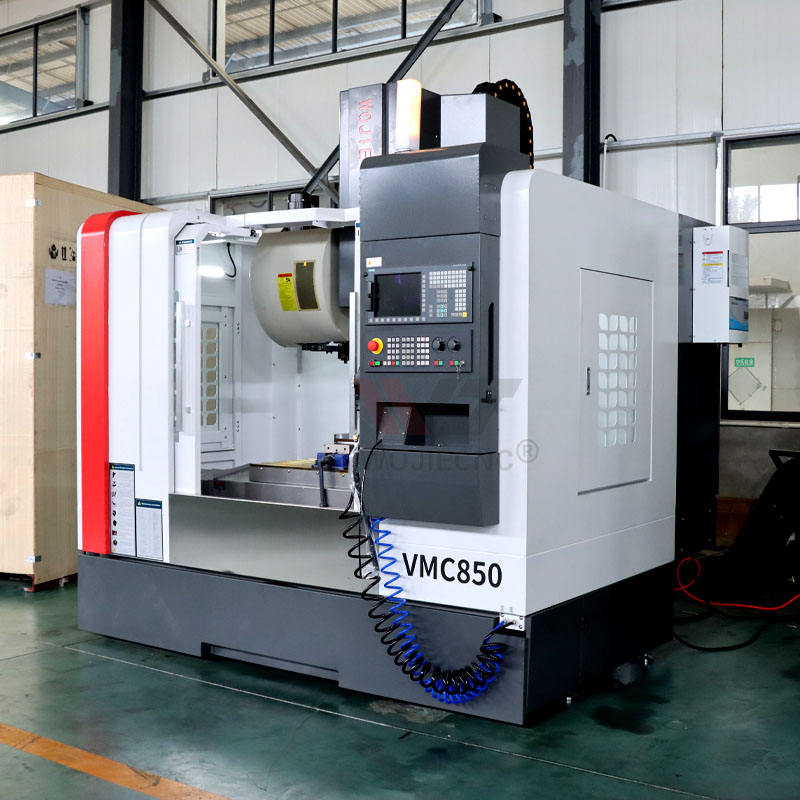

VMC850 Metal Aluminum CNC Mill 4 5 Axis CNC Vertical Machining Center CNC Milling Machine for Steel
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | VMC850 |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $16000 |
| 5 sets $15000 | |
| Number of Axes | 3,4,5 |
| Spindle Motor Power(kw) | 7.5 kw |
| Packaging Details: | 2700*2400*2900 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Application:
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Standard Accessories:

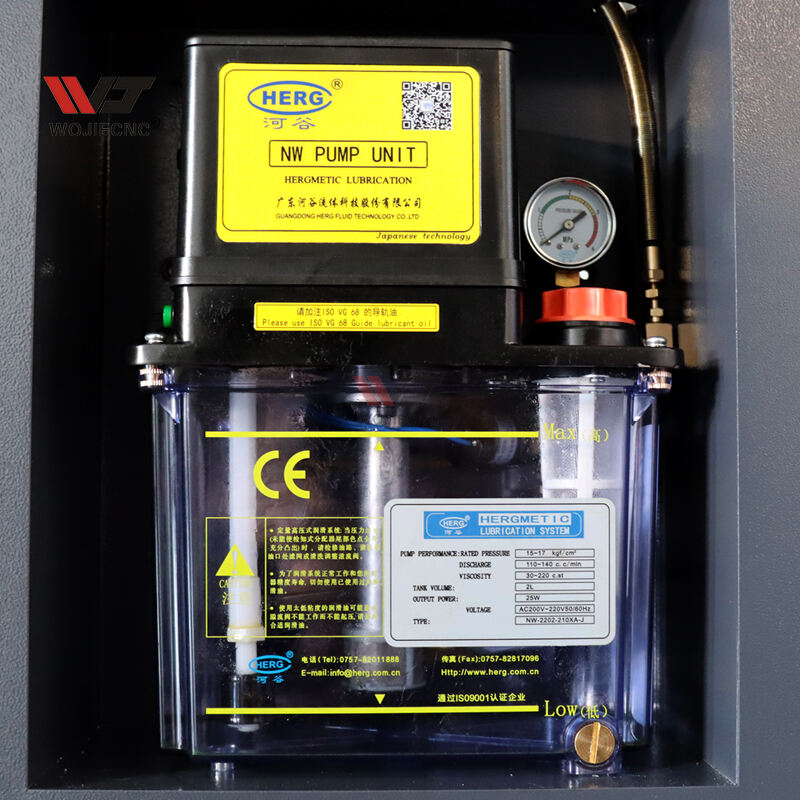

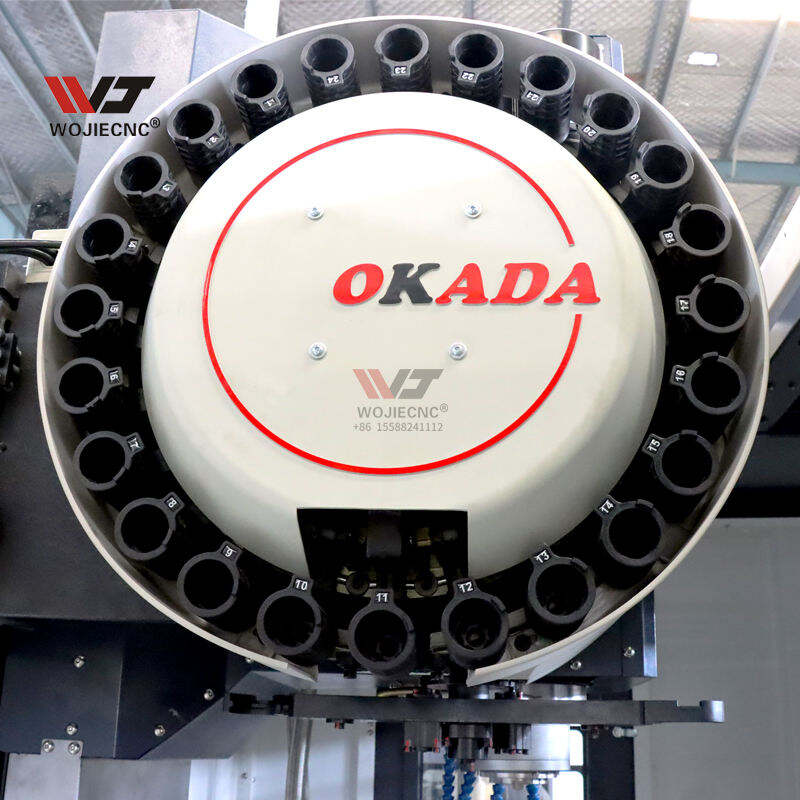

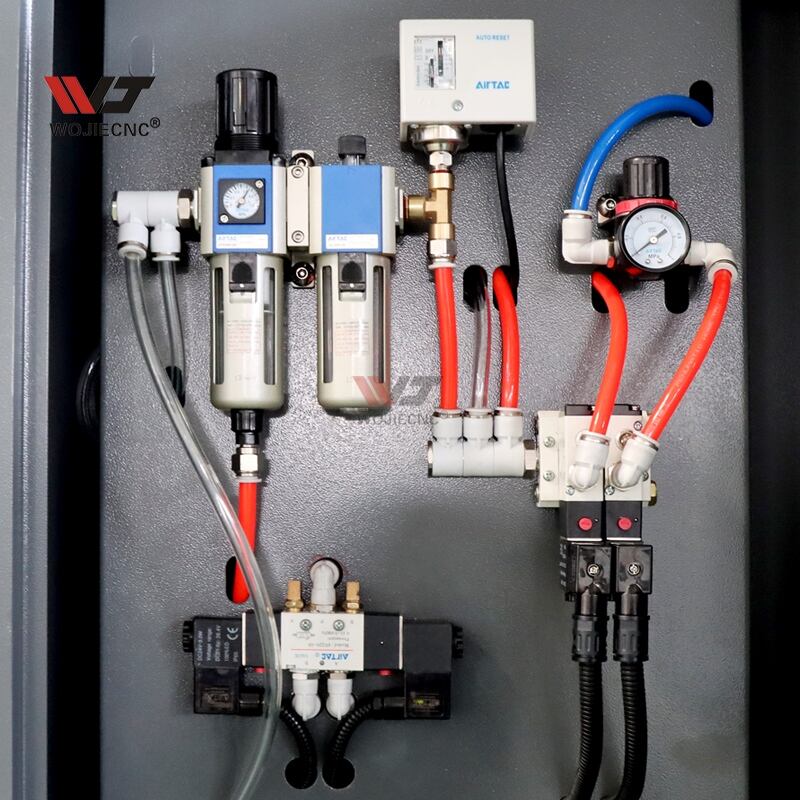

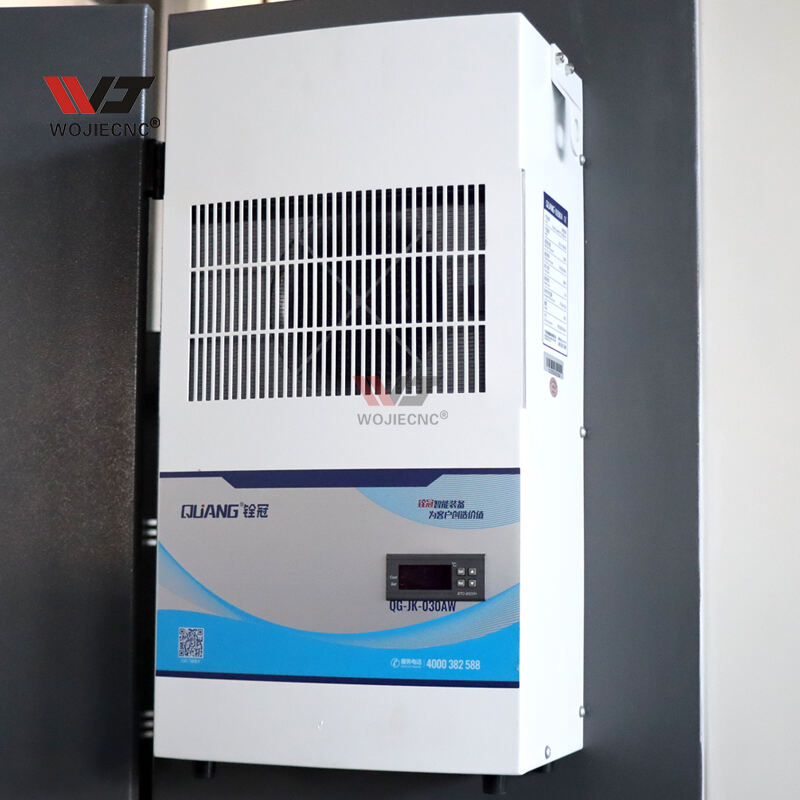

Armless type tool magazineAutomatic lubrication systemCooling systemHeat ExchangerPneumatic systemFull Cover machine enclosureAir system/ Air gun
Optional Accessories:

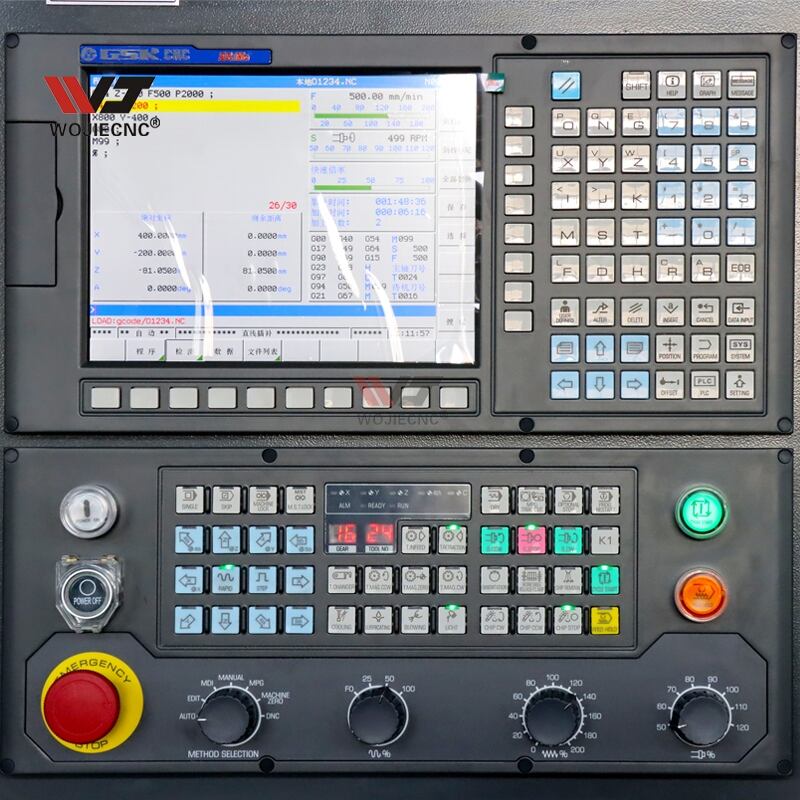

System:FANUC,Siemens,GSK etcArm type ATC4axis or 5axisAutomatic chip conveyorSpindle center coolantHigher speed of SpindleAir conditioner
Specifications:
| SPECIFICATIONS | Units | VMC850 |
| Table size | mm | 1000*500 |
| X axis travel | mm | 800 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 500 |
| T slot(number-width*pitch) | - | 5-18*90 |

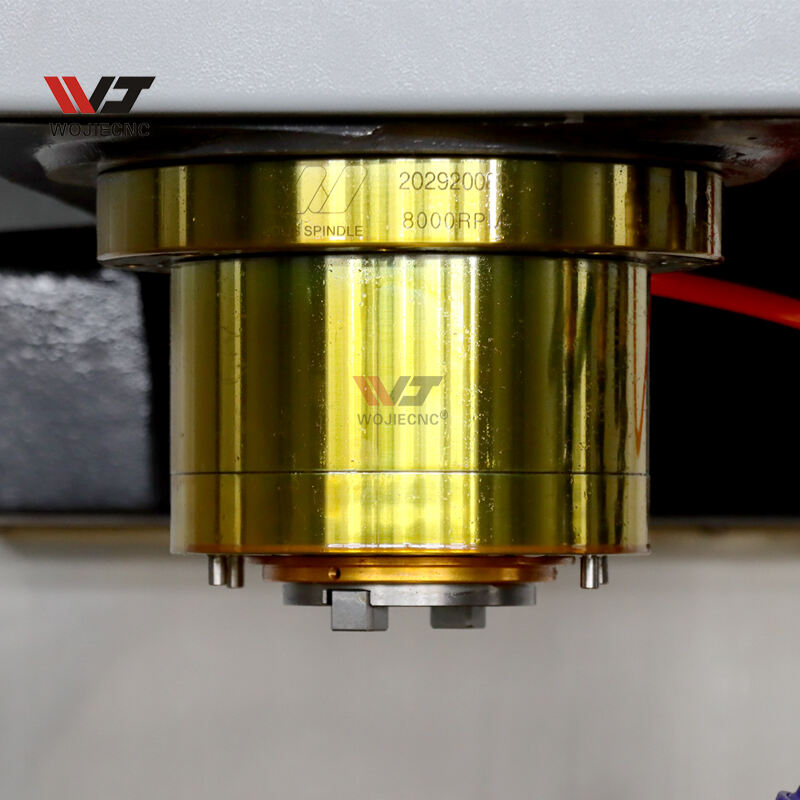

| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 7.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-8000 |

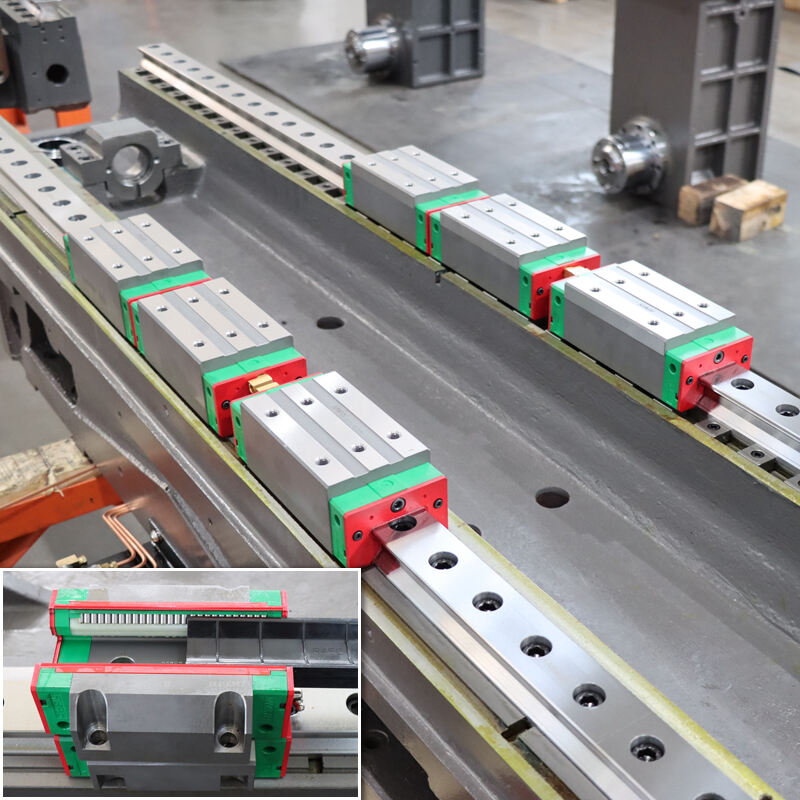

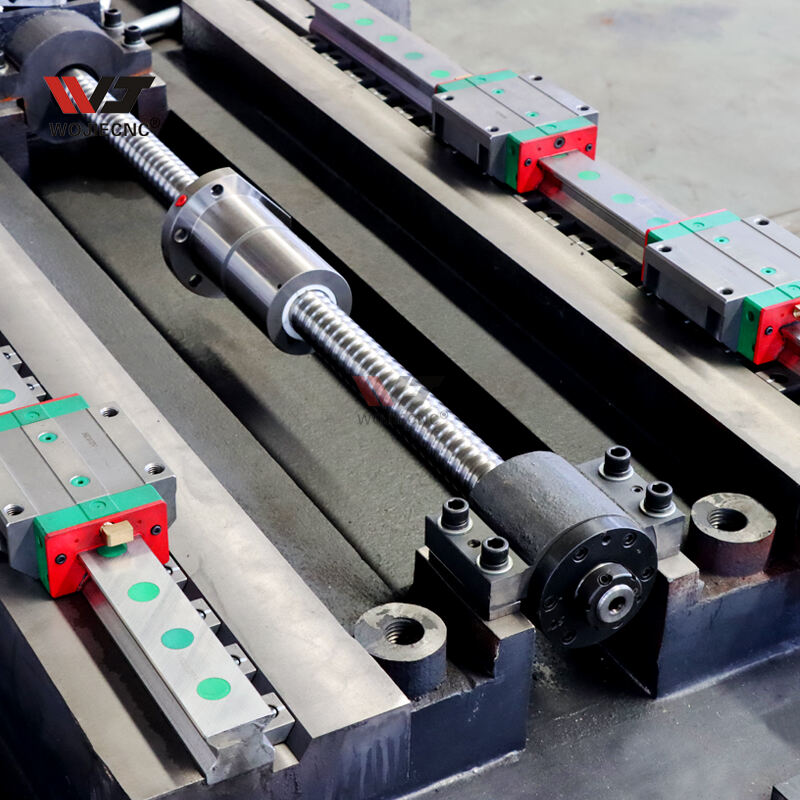

| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 525 |
| Distance between spindle nose and table surface | mm | 130-630 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Arm 24 |
| Max. tool diameter | mm | 78/120 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 5000 |
| Overall dimension(L*W*H) | mm | 2600*2300*2800 |

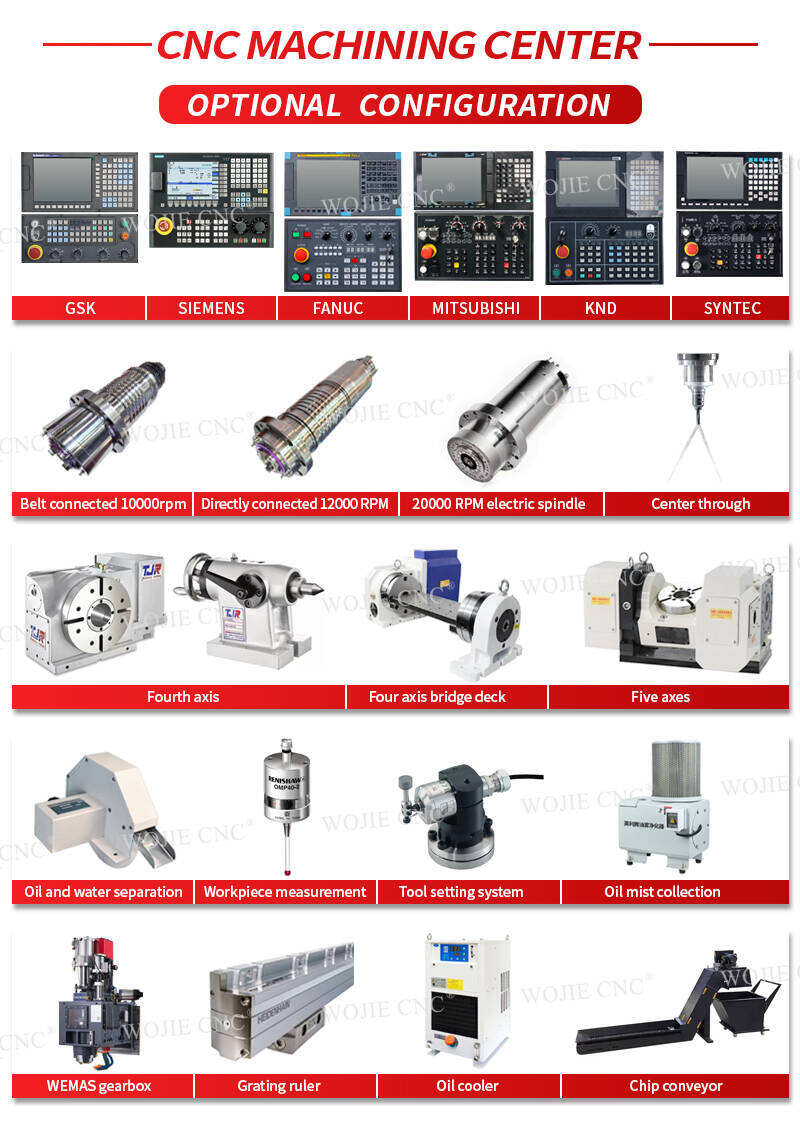

Optional Configurations:

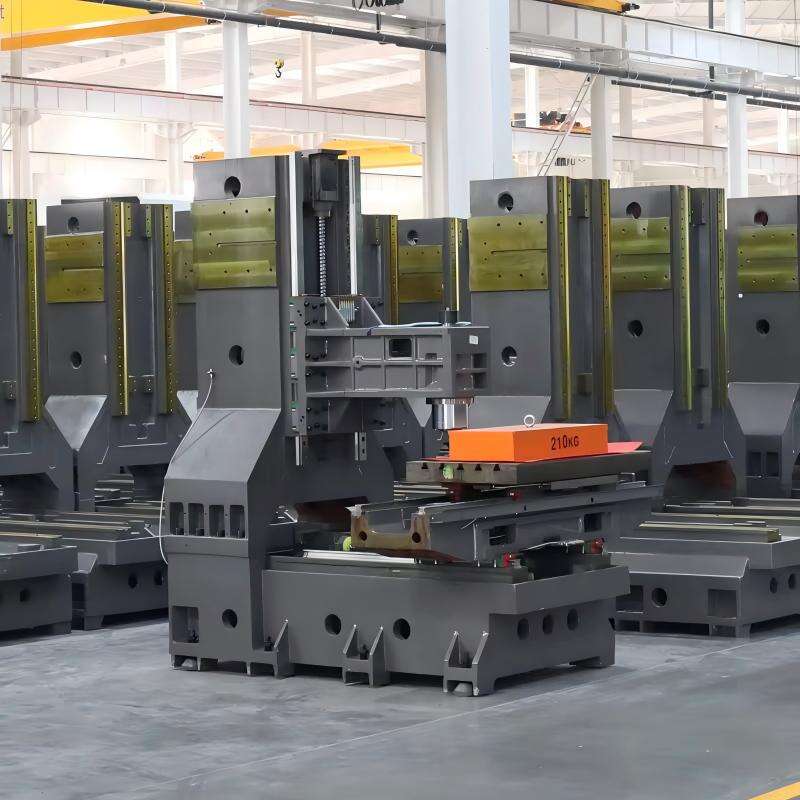

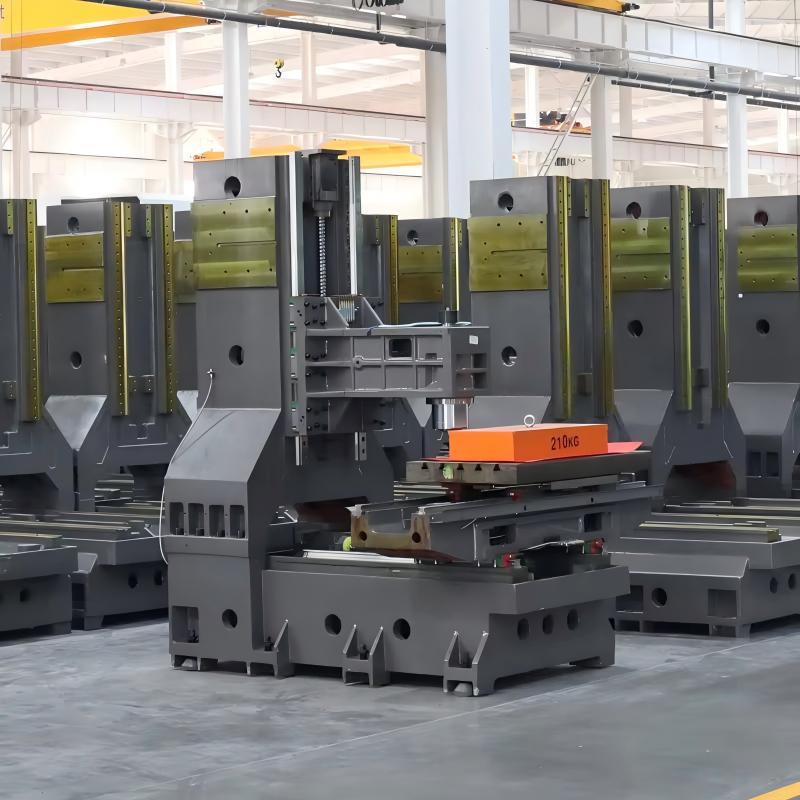

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready ,
we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days. if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
