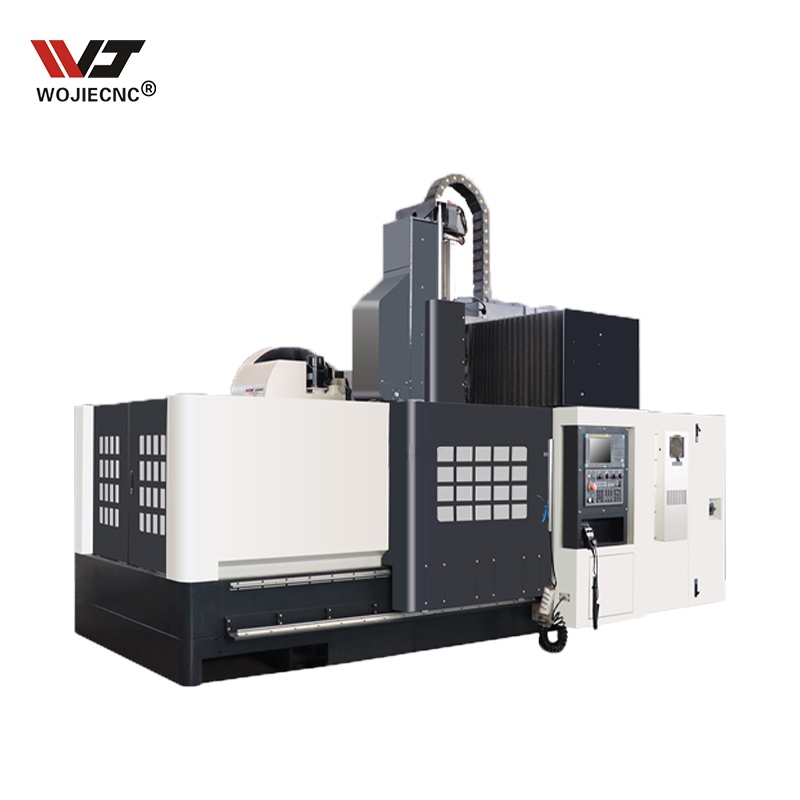

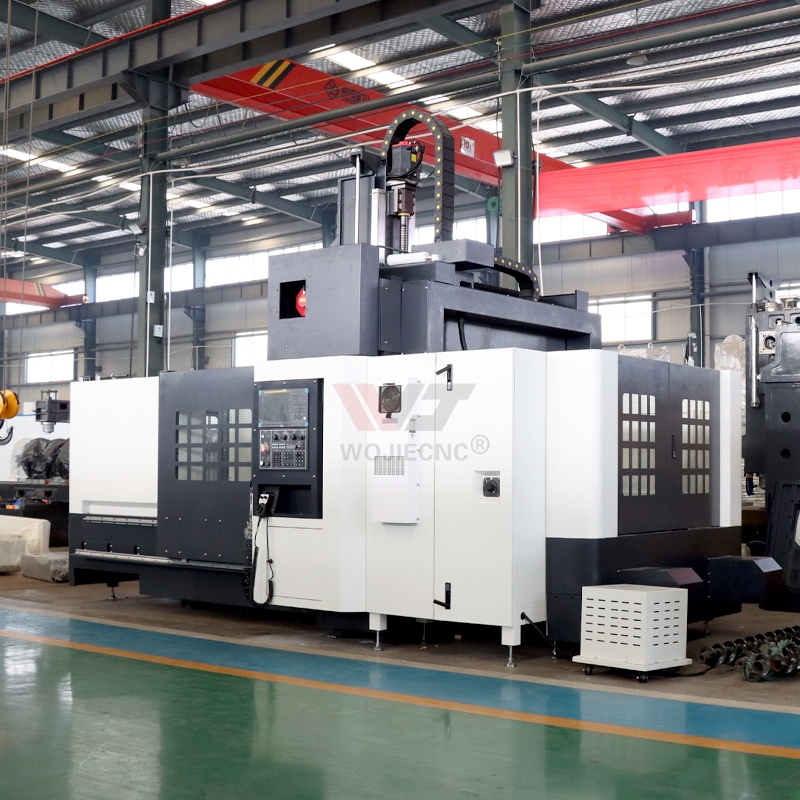

GMC1611 CNC Machining Center Milling Head CNC CNC Milling Machine for Facade Making Components OEM Precision Metal CNC Milling
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Specifications:
| Specifications | Units | GMC1611 |
| Table size | mm | 1800x800 |
| X axis travel | mm | 1600 |
| Y axis travel | mm | 1100 |
| Z axis travel | mm | 600 |
| Distance from spindle axis to column surface | mm | 406.5 |
| Distance between spindle nose and worktable surface | mm | 140-740 |
| Columns distance | mm | 1100mm |
| Distance between table and cross beam | 937 | |
| T slot(number-width-pitch) | 5-18x140 | |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 (Optional:BT50 ) |
| Main motor power | kw | 15/18.5 |
| Guide rail type | Linear rail | |
| X/Y/Z rapid traverse speed | m/min | 2012/12/12 |
| Max.table load | Kg | 2500 |
| Distance from table to floor | mm | Around 800 |
| Cutting feed speed | mm/min | 1-10000 |
| Positioning accuracy | mm | ±0.005/300 |
| Repeat positioning accuracy | mm | ±0.004 |
| Tool magazine | Arm 24 | |
| Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) |
| Optional: φ112 (Adjacent)/ φ200(Apart) | ||
| Max.tool weight | kg | 8 (Optional: 18) |
| Machine weight | kg | 13000 |
| Overall dimension | mm | 4500x3000x3600 |
Standard Accessories:
Armless type tool magazine
Automatic lubrication system
Cooling system
Heat Exchanger
Pneumatic system
Full Cover machine enclosure
Air system/ Air gun
Optional Accessories:
System:FANUC,Siemens,GSK etc
Arm type ATC
4axis or 5axis
Automatic chip conveyor
Spindle center coolant
Higher speed of Spindle
Air conditioner
Detailed Images:
 |
|
|

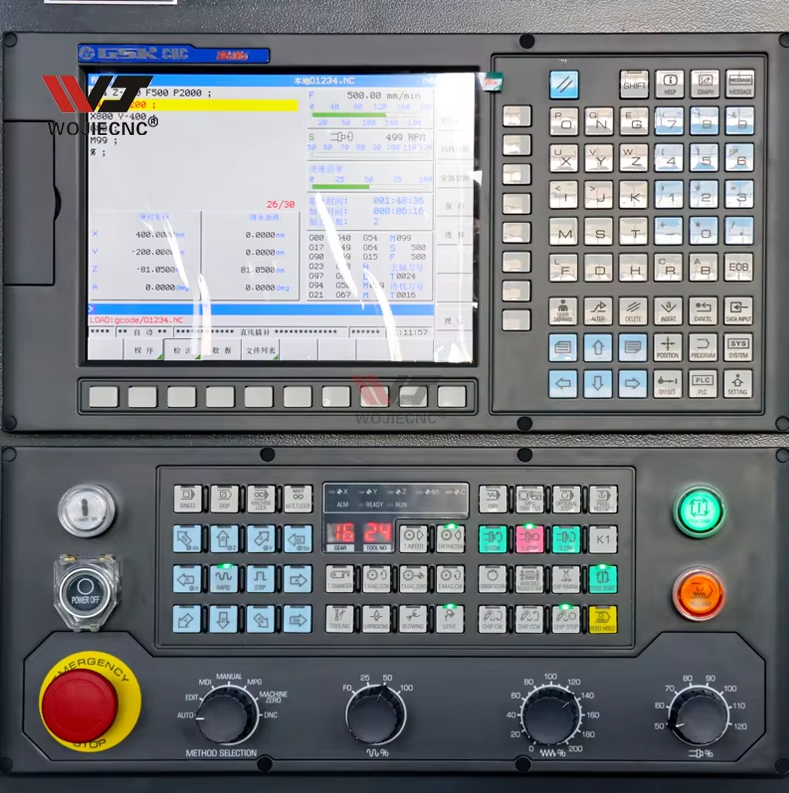

CNC Control System
This advanced CNC control panel features a large color display and a full set of physical keys/knobs, enabling intuitive programming and real-time monitoring. It supports high-precision multi-axis machining, with dedicated emergency stop and manual override functions to ensure safe and flexible operation.
|

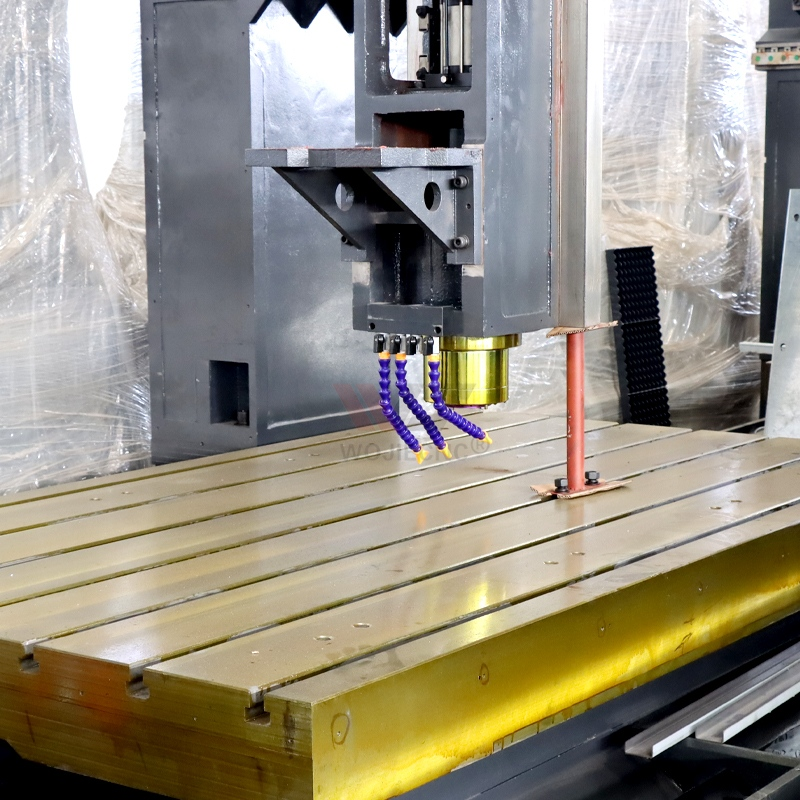

Gantry & Worktable Assembly
The robust gantry structure and T-slot worktable provide excellent rigidity and stability for heavy-duty cutting. The T-slot design allows flexible clamping of various workpieces, while the precision linear guideways ensure smooth, high-accuracy movement along all axes.
|
|
|
 |
|

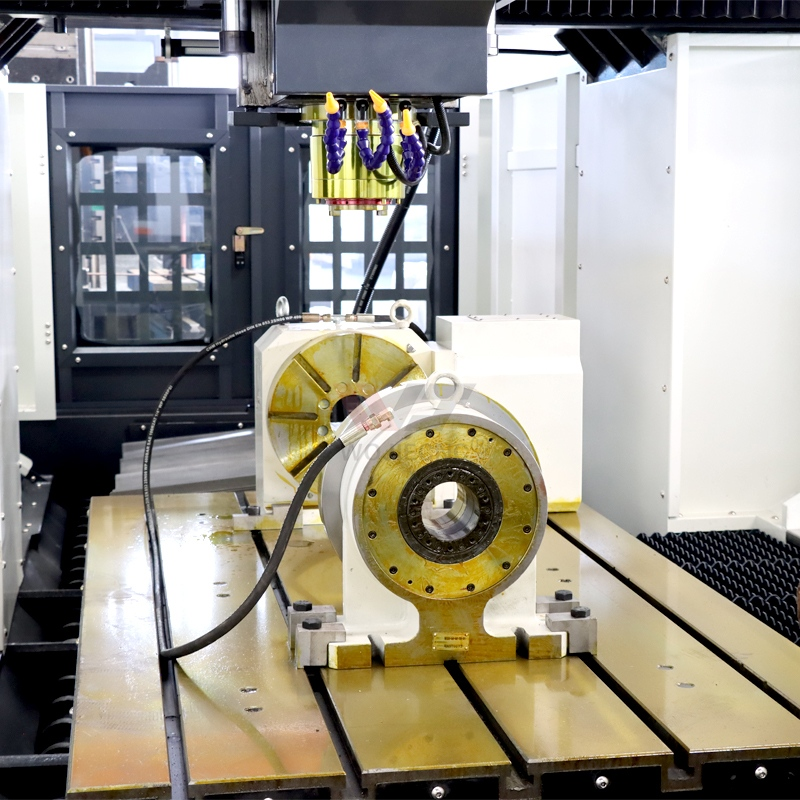

Rotary Table (Optional 4th Axis)
The integrated high-precision rotary table (4th axis) expands the machine’s capability to process complex, multi-sided parts. It enables simultaneous 4-axis contouring, making it ideal for precision machining of aerospace, mold, and automotive components.
|
OKADA Tool Magazine
This OKADA brand random-access tool magazine (with 30+ tool positions) delivers fast, automatic tool changes, minimizing non-cutting time. It supports a wide range of cutting tools, allowing continuous, multi-process machining without manual intervention.
|
