Description:
Product Application
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Specifications:
| ITEM | CK6130 | CK6132 |
| Model | CK6130 | CK6132 |
| maximum turning diameter | 300mm | 305mm |
| maximum machining length | Chuck 290/ collet 400 | Chuck 290/ collet 400 |
| X/Z axis Maximum stroke | 300/380 mm | 300/380 mm |
| X/Z axis minimum displacement unit | 0.01mm | 0.01mm |
| Spindle hole diameter | 48mm | 48mm |
| Spindle Drawn tube diameter | 40mm | 410mm |
| Chuck size | 160mm | 160mm |
| Spindle axis series | stepless | stepless |
| Spindle speed | 150-2500 rmp | 150-2500 r m p |
| Main motor power (transduction) | 4 KW | 4 KW |
| X/Z axis feed power | 1月1日 | 1月1日 |
| X/Z axis fast moving speed | 8月10日 | 8月10日 |
| Cutter bar size | 16*16 | 16*16 |
| Repeat positioning accuracy | ≤0.004 | ≤0.004 |
| Tail seat type | Have one | Have one |
| Diameter of tailstock sleeve | 52mm | 60mm |
| Tail sleeve stroke | 90 mm | 100mm |
| Tailstock taper hole | 4# | 4# |
| Net weight | 950 kg | 1200kg |

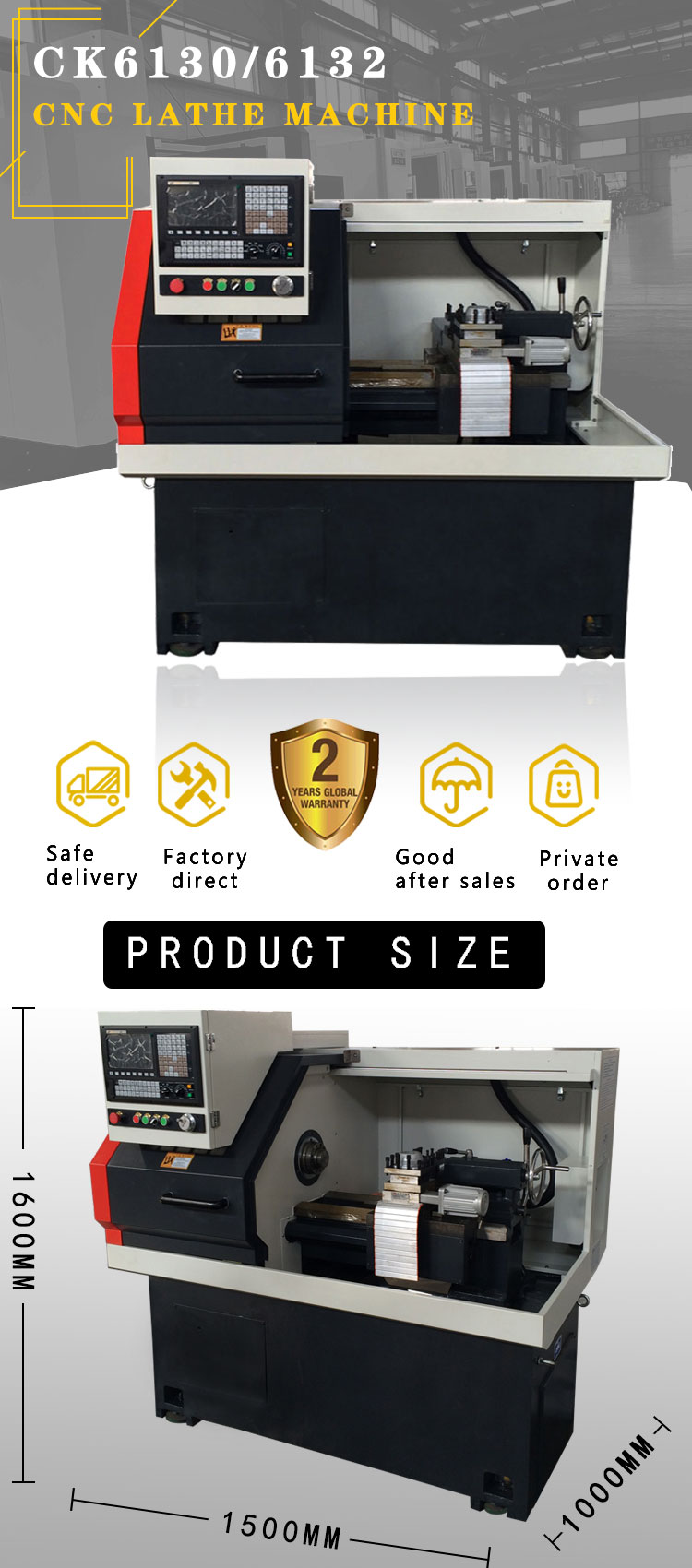

| Overall size (L wh) | 160011001650mm | 180011001700mm |
Product main technical Specifications:
Standard Accessories:
1.complete coolant system for ready use
2.complete lubrication system for ready use
3. LED work light

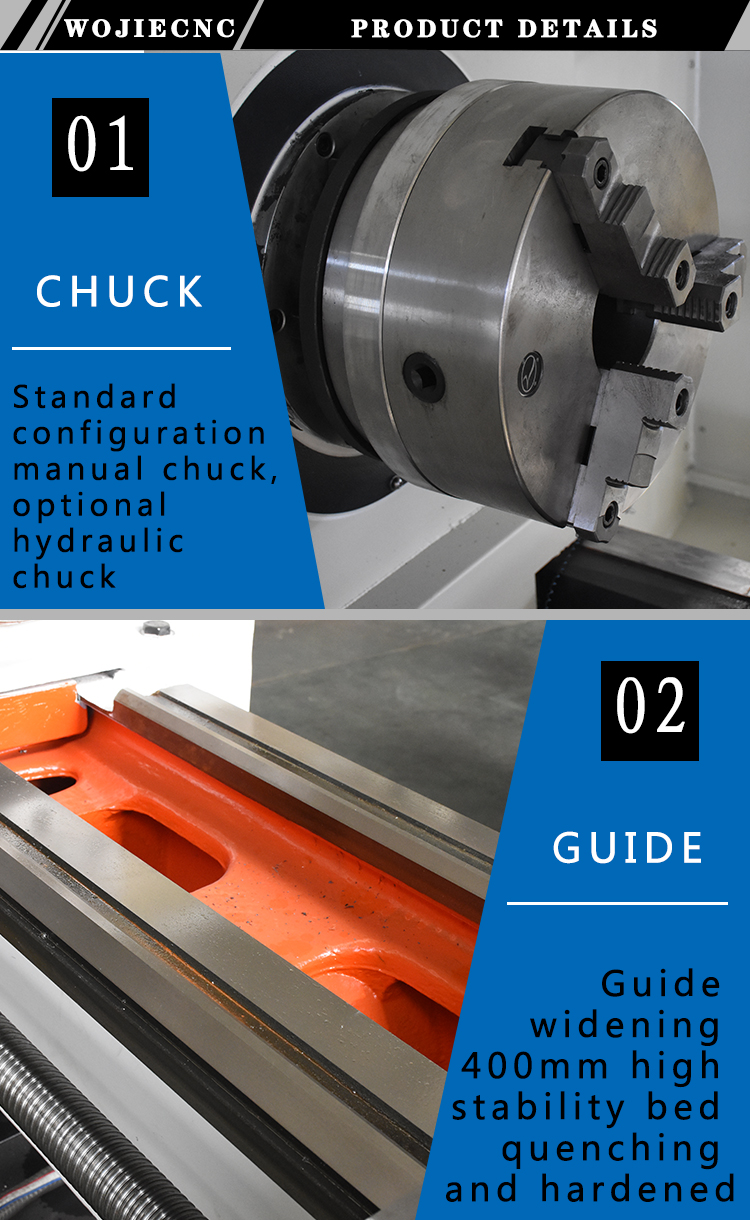

4. 10" three jaw manual chuck

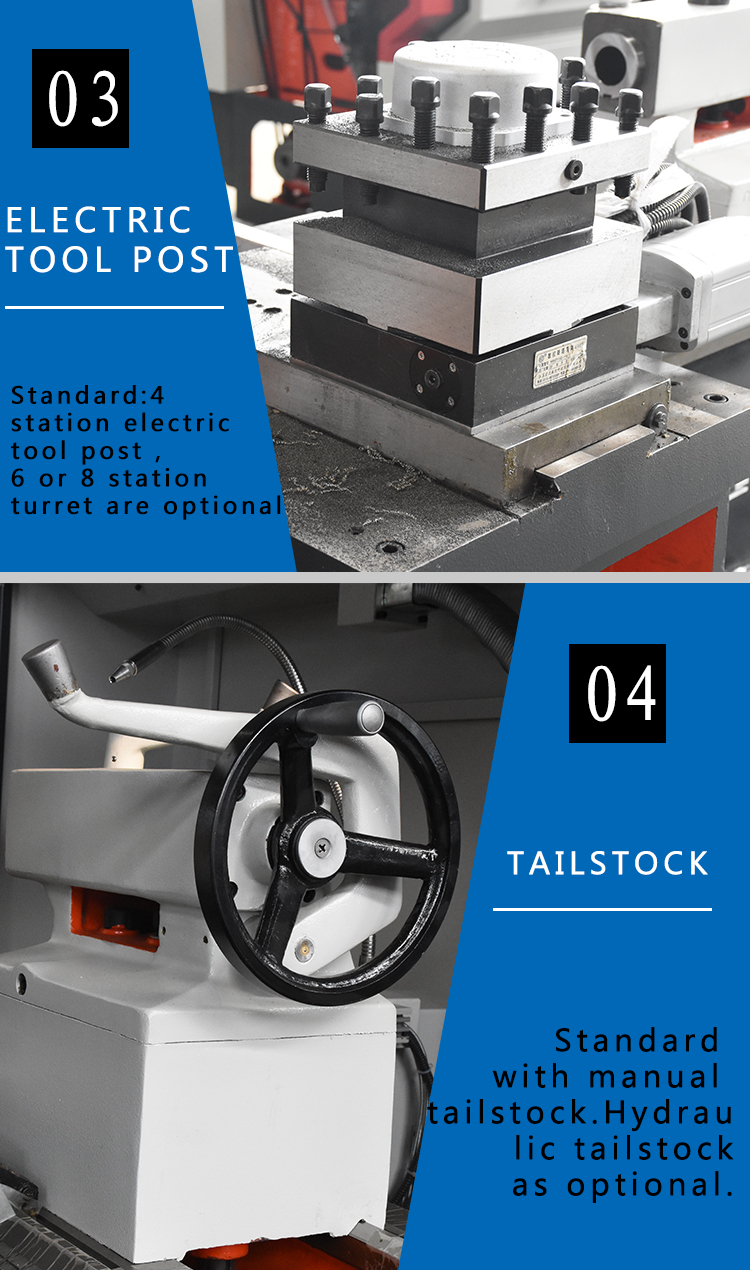

5. 4 tool electric tool carrier
6. manual tailstock
7. tool box and tools
8.GSK control
Optional Accessories:
1. automatic feeding device for long bar work piece
2. chip conveyor
3. hydraulic chuck, hydraulic station, rotaty cylinder ( solid type or hollowed type)
4. steady rest
5. fellow rest
6. 6 tool electrical tool carrier
7.siemens/fanuc control

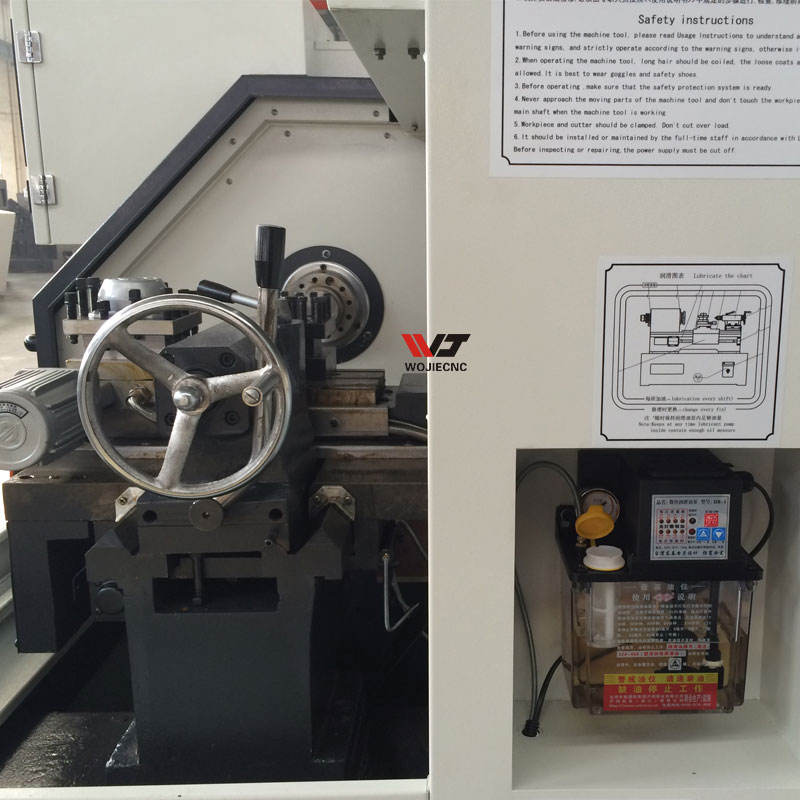

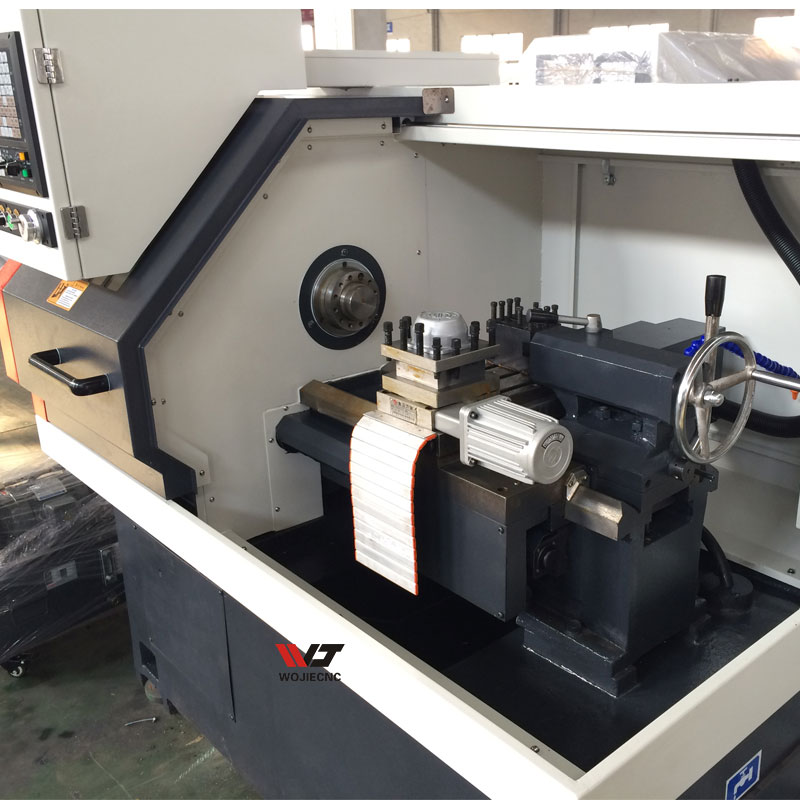

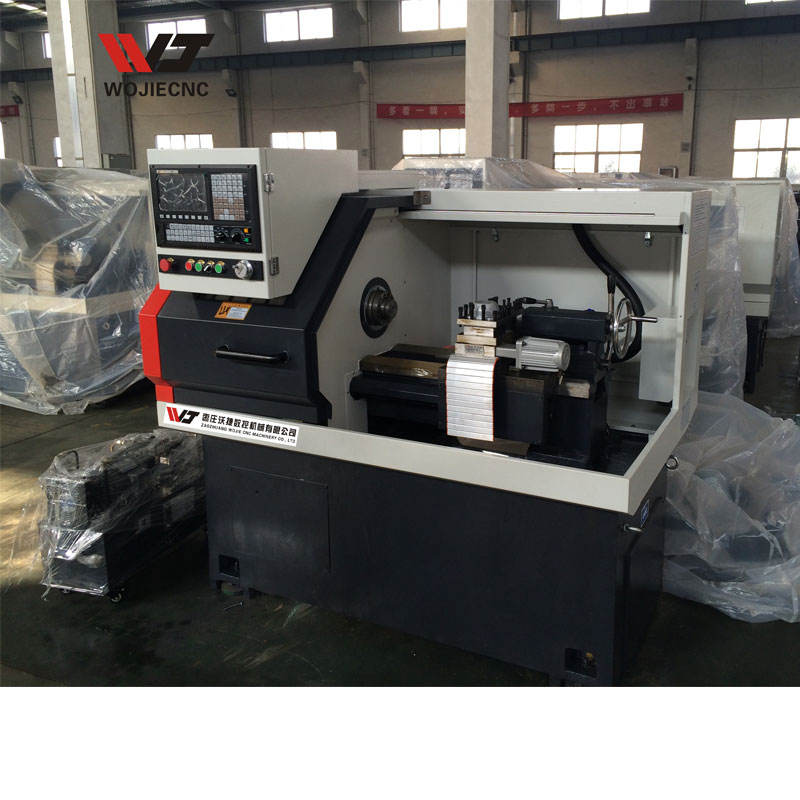

Detailed Images:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
