Description:
Product Application
The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries such as processing of small and medium-sized box cover plate shell plate parts
Specifications:
|
ITEM |
XK7132 |
XK7140 |
|
CNC milling machine |
XK7132 |
XK7140 |
|
Table size |
800×320 |
1250×360 |
|
Max. table load |
300kg |
400kg |
|
T slot qty-width*distance |
3-14×110 |
3-14×80 |
|
spindle speed |
60-8000 r p m |
60-8000 r p m |
|
spindle nose to table surface |
125-520mm |
120-580 |
|
Spindle center to Column surface |
360 |
460 |
|
Spindle taper |
BT30/BT40 |
BT40 |
|
Main motor power |
3.7kw (servo) |
3.7kw (servo) |
|
X axis travel |
500mm |
900mm |
|
Y axis travel |
320mm |
360mm |
|
Z axis travel |
400mm |
460mm |
|
X/Y/Z axis rapid feed |
8/8/6m/min |
5/5/4m/min |
|
Positioning accuracy |
±0.01mm |
±0.01mm |
|
Repeatability accuracy |
±0.005mm |
±0.005mm |
|
Net Weight |
2500kg |
2650kg |
|
Overall Dimension |
1900×1800×2100 |
2220×1850×2250 |
Standard Configuration:
·KND-1000MI
·X/Y/Z axes SIEMENS servo motor&driver
·Servo spindle motor&driver
·10T FUNNEL type tool magazine
·Full closed cover
Optional configuration:
·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·WITHOUT tool magazine(CNC Milling)
·BOX guideway or LINEAR guideway
·4th axes(NC Dividing Head)
·CE protection
Detailed Images:
 |
|
|

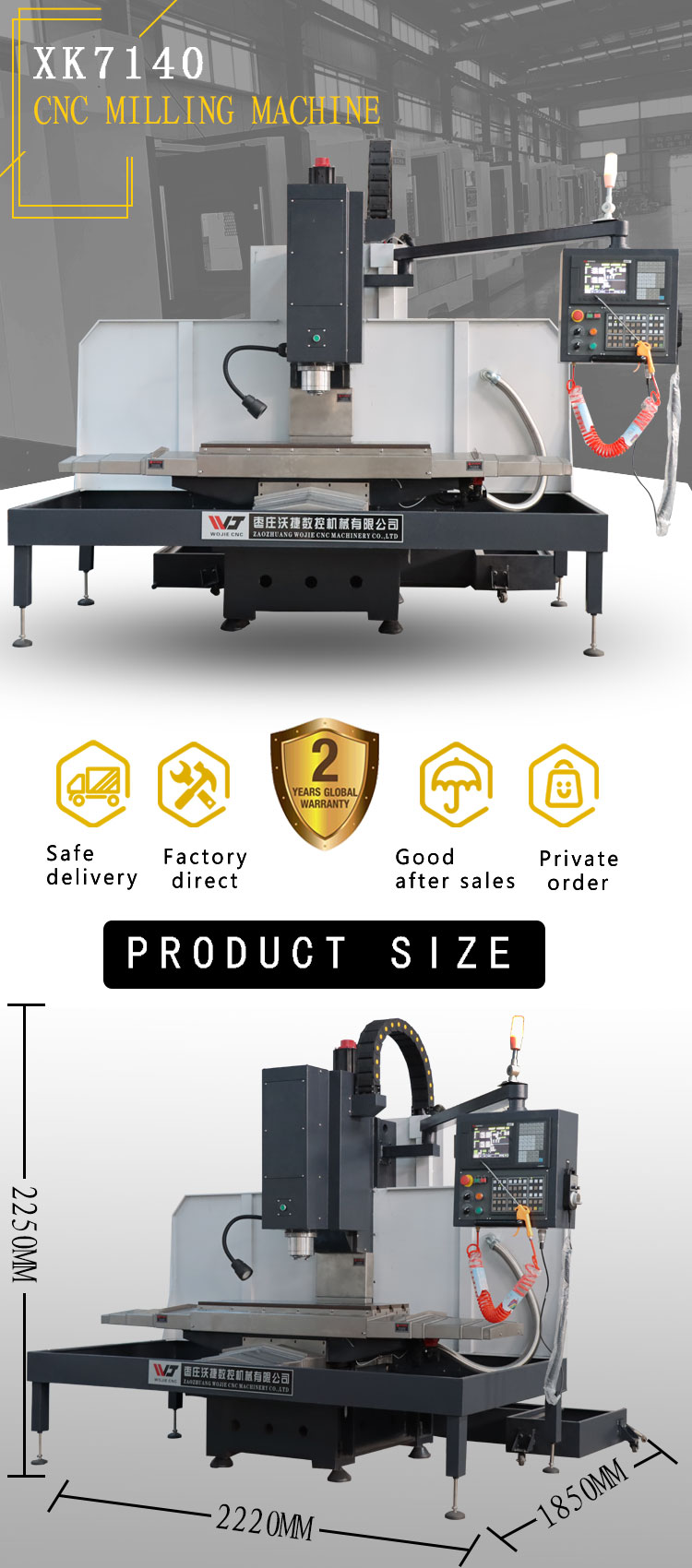

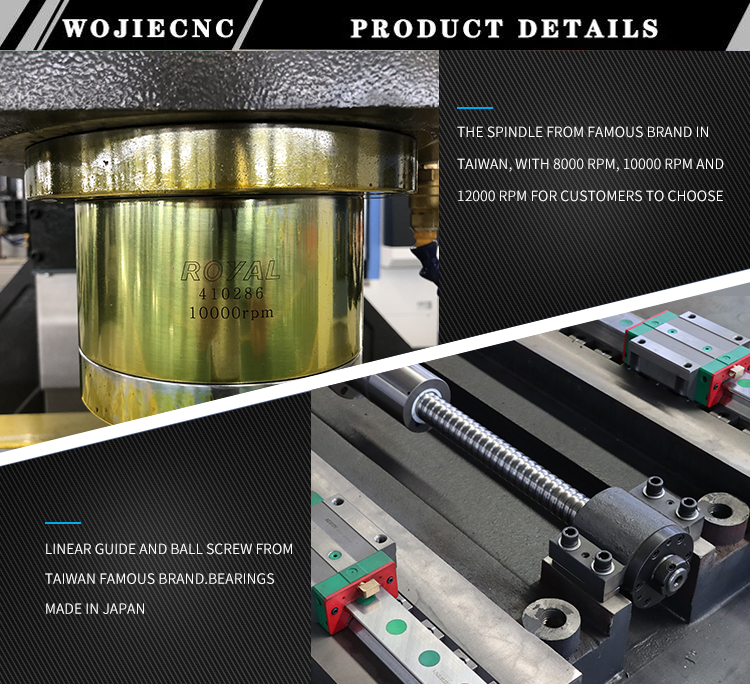

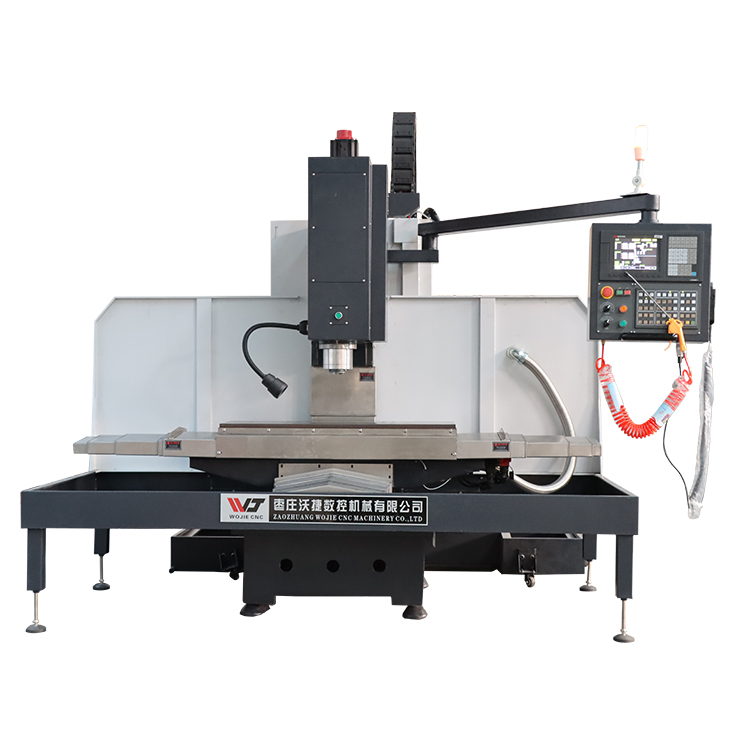

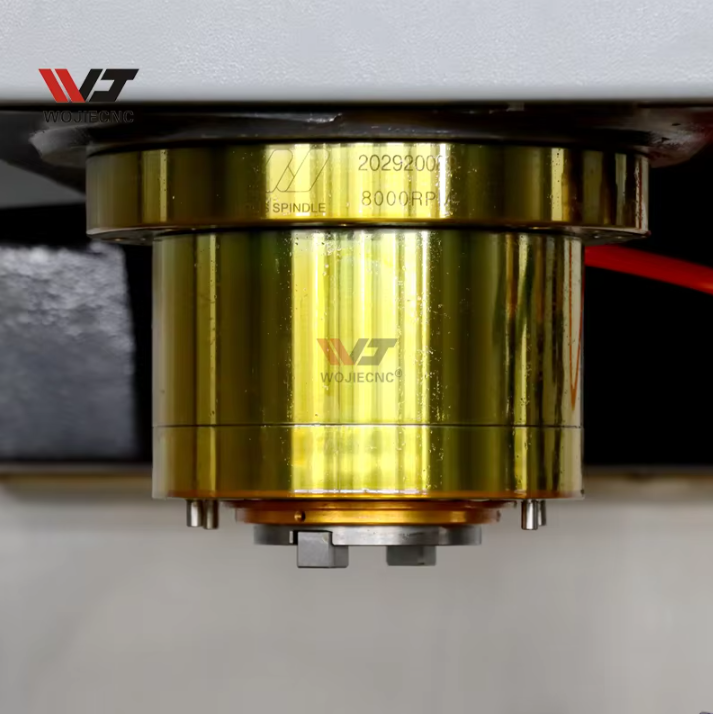

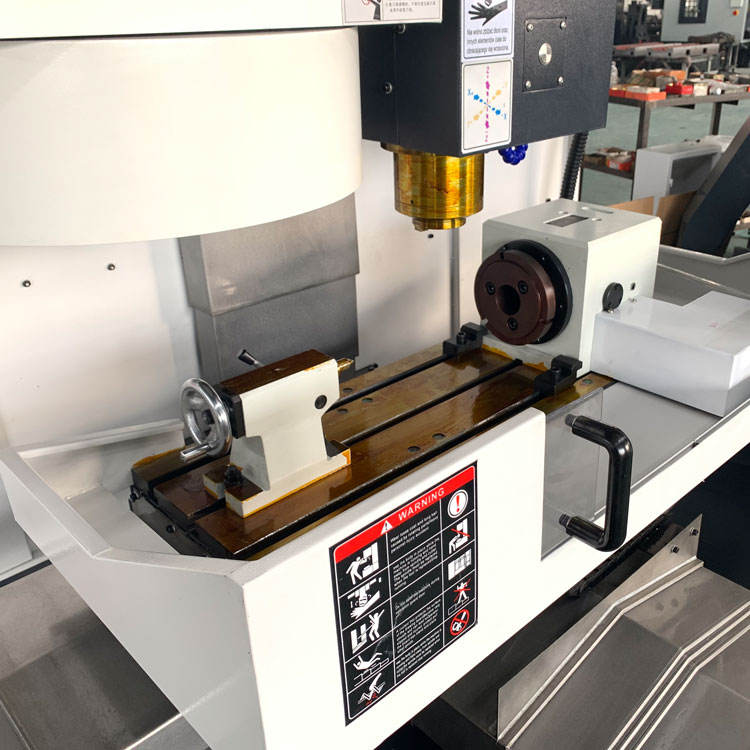

High-Precision Spindle Unit
The core of the XH7140 is a high-performance spindle (featuring BT40 taper). It delivers high torque and stability, supporting a maximum speed of 8000 RPM. This ensures superior cutting accuracy and surface finish for heavy-duty and high-speed machining tasks.
|

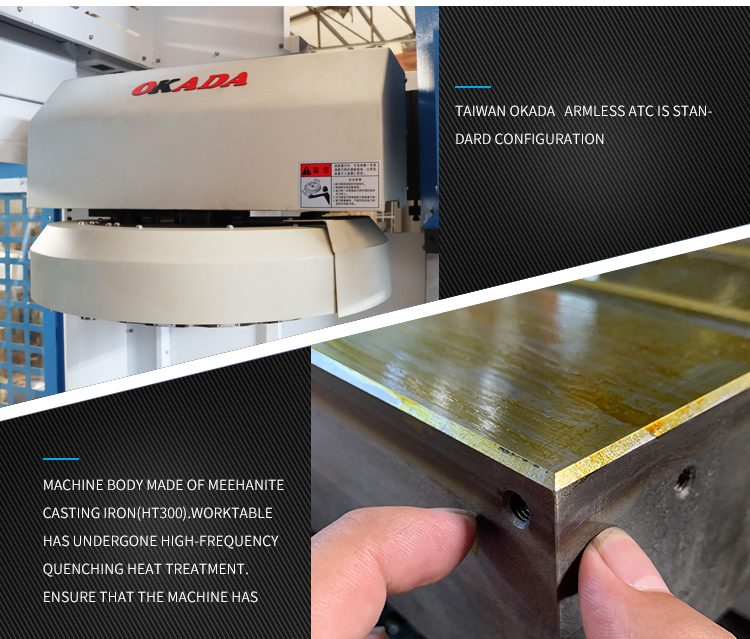

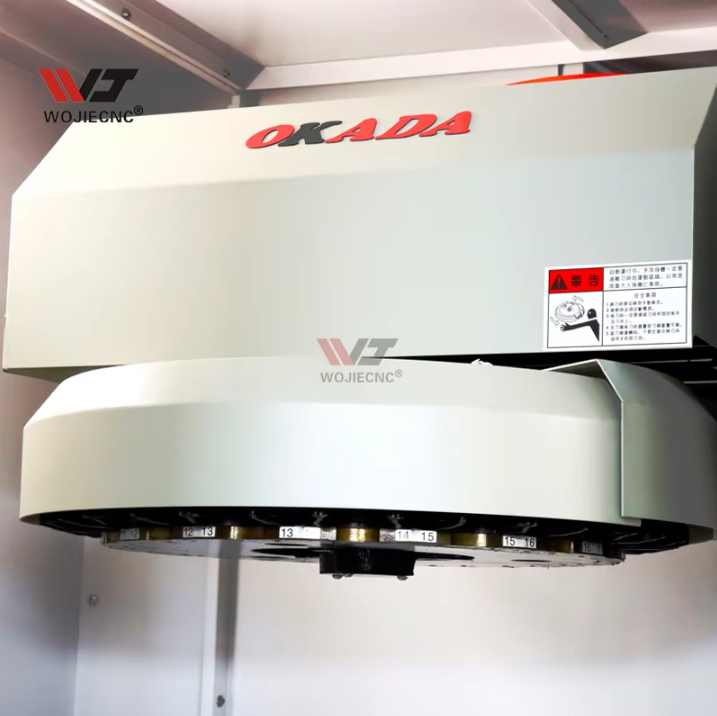

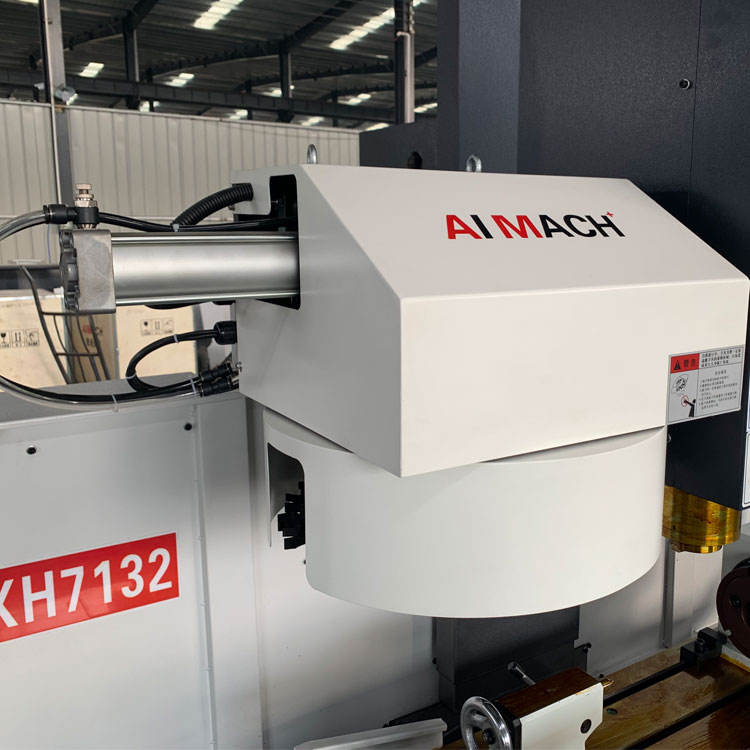

Automatic Tool Changer (ATC)
Equipped with a reliable automatic tool changer, the XH7140 enables fast and efficient tool changes. This significantly reduces non-cutting time, optimizing productivity for batch production of complex parts.
|
|
|
 |
|

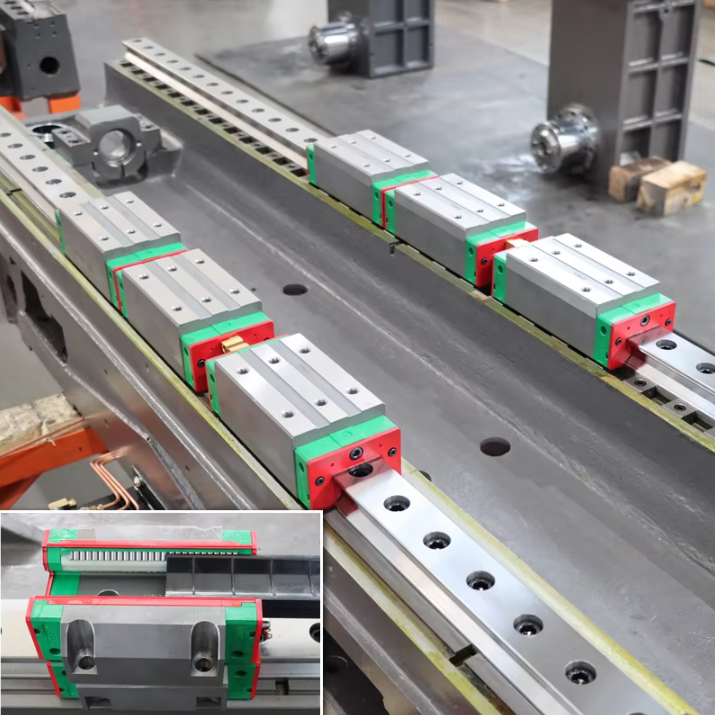

Heavy-Duty Linear Guideway
The X/Y/Z axes adopt high-rigidity linear guideways. Paired with the large worktable (1250×360mm) and higher load capacity (400kg), this system ensures smooth motion and exceptional stability during heavy cutting, guaranteeing reliable precision.
|

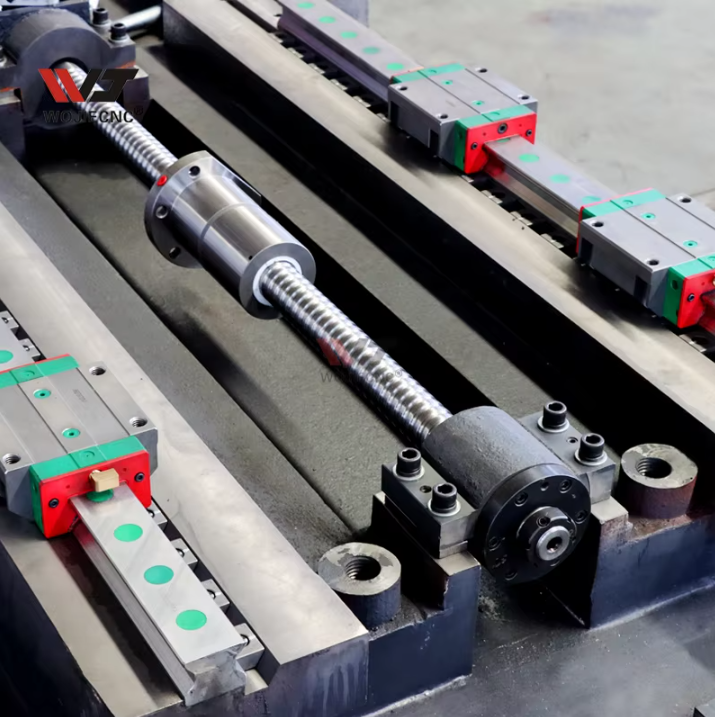

Precision Ball Screw Drive
The professional ball screw drive system provides ultra-smooth power transmission. It works in synergy with the linear guideways to maintain the machine's high positioning accuracy (±0.01mm) and repeatability (±0.005mm), meeting the standards of precision part manufacturing.
|
 |
|
|

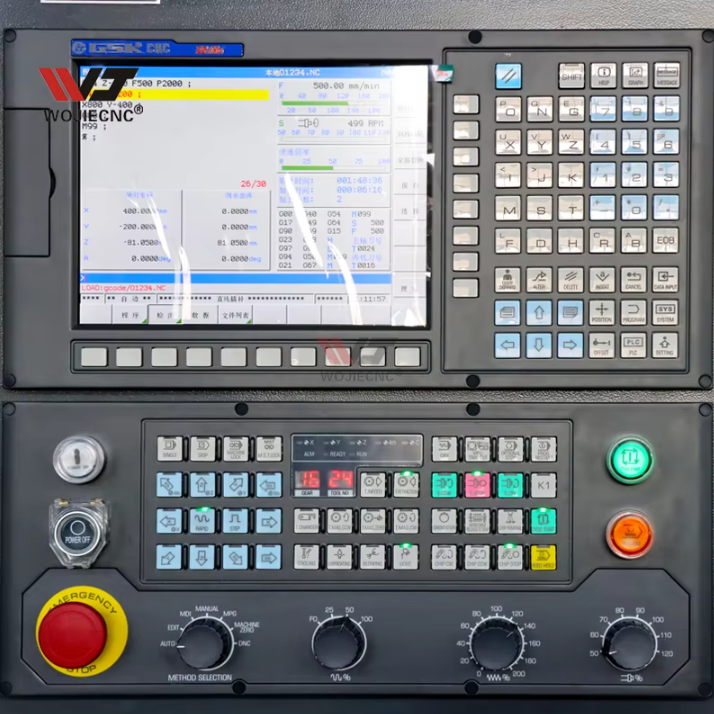

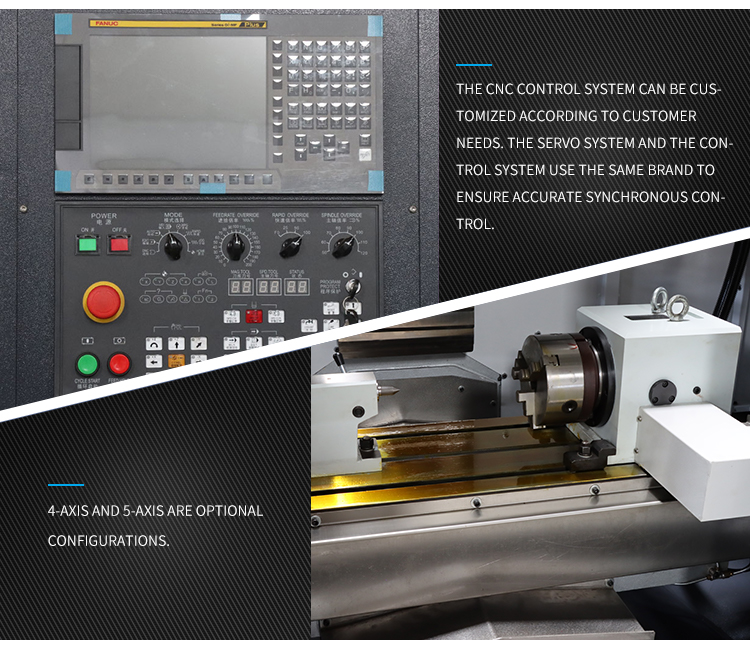

CNC Control Panel
The XH7140 is equipped with an advanced CNC control panel, featuring a large touchscreen and intuitive operation buttons. It supports precise programming, real-time machining monitoring, and flexible parameter adjustment, ensuring stable and efficient control of the entire machining process. The emergency stop button and manual handwheel enhance operational safety.
|

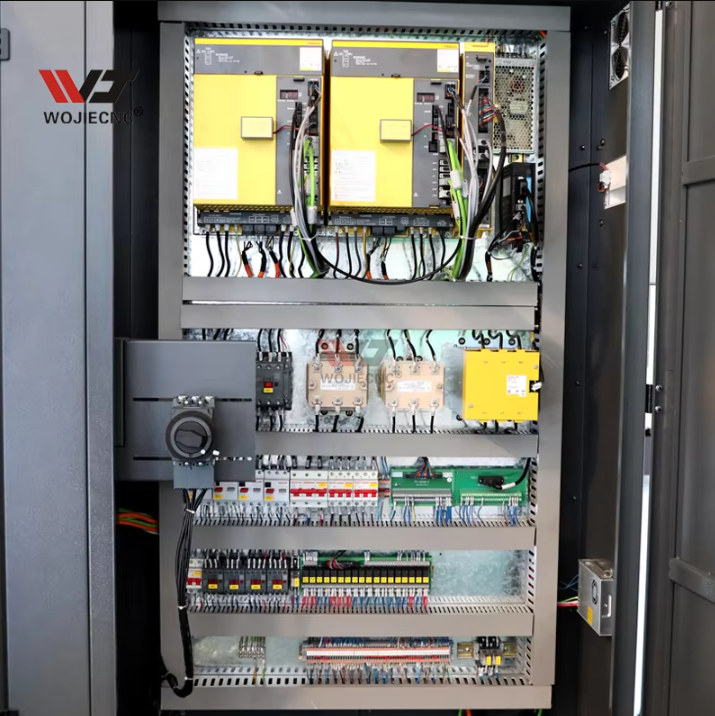

Electrical Control Cabinet
This well-organized electrical cabinet integrates high-quality servo drives, PLC modules, and neatly arranged wiring. It guarantees stable power supply and reliable signal transmission, enabling the machine to run continuously and stably for long periods. The modular design also simplifies maintenance and fault diagnosis.
|
 |
 |
|

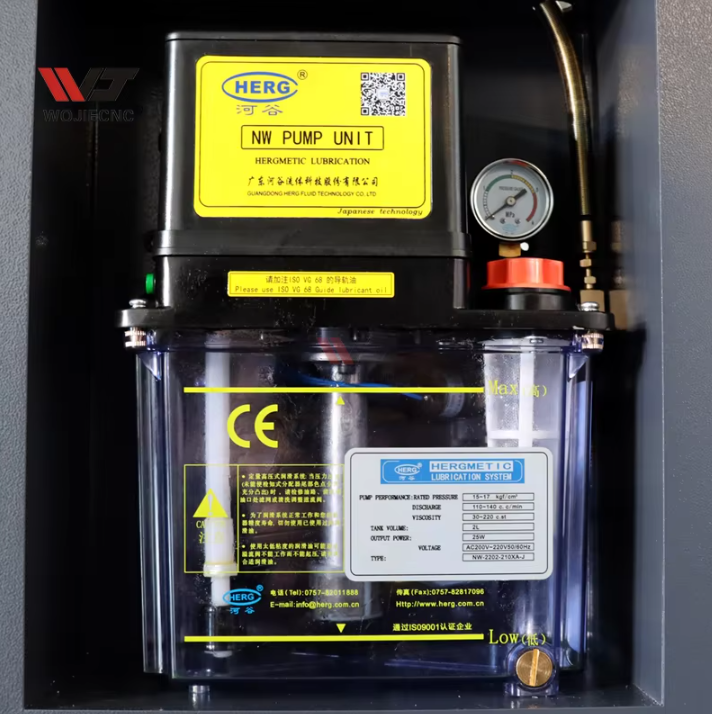

Automatic Lubrication System
The automatic lubrication unit provides timed and precise lubrication to linear guideways and ball screws. It effectively reduces friction and component wear, extending the service life of key parts while maintaining consistent machining accuracy.
|

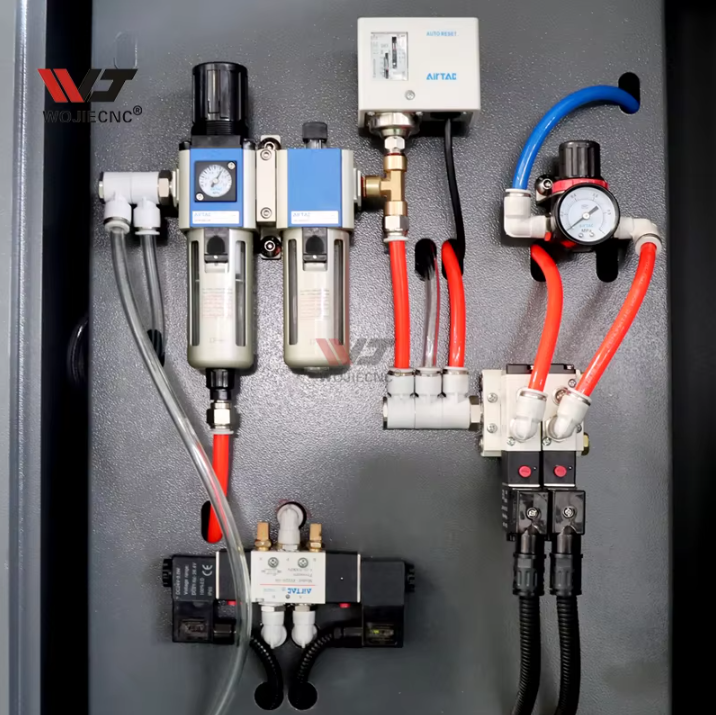

Pneumatic Control System
The pneumatic system provides clean, regulated air pressure for tool clamping, chip removal, and other auxiliary functions. It ensures reliable and responsive operation of pneumatic components, supporting efficient and automated production workflows.
|
