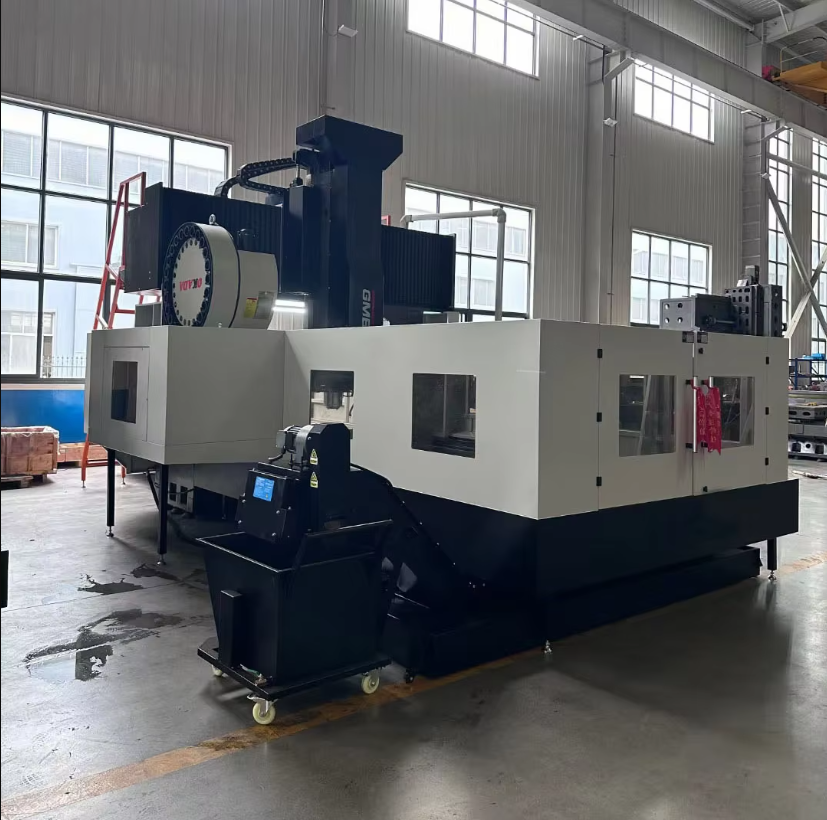

GMC3022 Stable Performance Large Gantry Machining Center CNC Milling Machine for Parts Processing
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Standard Configuration:
KND control systemBT50 6000rpm Spindle
linear guideway
24 position arm type auto tools changer
Spindle oil cooler
Two units spiral chip conveyors
Full sheet metal cover
Optional Configuration:
Siemens, Fanuc, Mitsubishi,Syntec system
BT40 10000 or 12000rpm spindle
BT50 Taiwan 6000rpm Spindle
Coolant through spindle
Spindle oil Cooler
Auto chip conveyor
Air conditioner for electric cabinet Oil water separator
The 4th axis/ The 5th axis
Tool setting system
Workpiece measuring system
Features:
The CNC gantry machining centers inherits the advantages of strong rigidity, symmetrical structure, and stability of thetraditional gantry machine tool foundation frame. By strengthening the reinforcement structure and reasonable layout, the entire machine has strong rigidity. The gantry machining center has various processing functions such as milling chips, boring, drilling (expanding, reaming), and tapping threads, which are commonly used in various mechanical processing fields such as automobiles, molds, aerospace, packaging, and hardware.
Specifications:
| Specifications | Units | GMC3022 |
| Table size | mm | 3000*2000 |
| X axis travel | mm | 3000 |
| Y axis travel | mm | 2200 |
| Z axis travel | mm | 1000 |
| Max. worktable load | kg | 11000 |
| T slot(number-width-pitch) | - | 9-28-200 |
| Gantry width | mm | 2300 |
| Distance between spindle nose and worktable surface | mm | 280-1280 |
| Spindle taper | - | BT50 |
| Max. spindle speed | rpm | 6000 |
| Main motor power | KW | 30 |
| Cutting feed speed | m/min | 1月7日 |
| X/Y/Z rapid traverse speed | m/min | 2012/12/8 |
| Guideway type | - | X/Y Linear guideway, Z axis hard guideway |
| Positioning accuracy | mm | X/Y ±0.0075, Z ±0.015 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | - | Arm 24 |
| Machine Weight | kg | 32000 |
| Overall dimension | mm | 9.30053E+11 |
Detailed Images:
 |
|
|

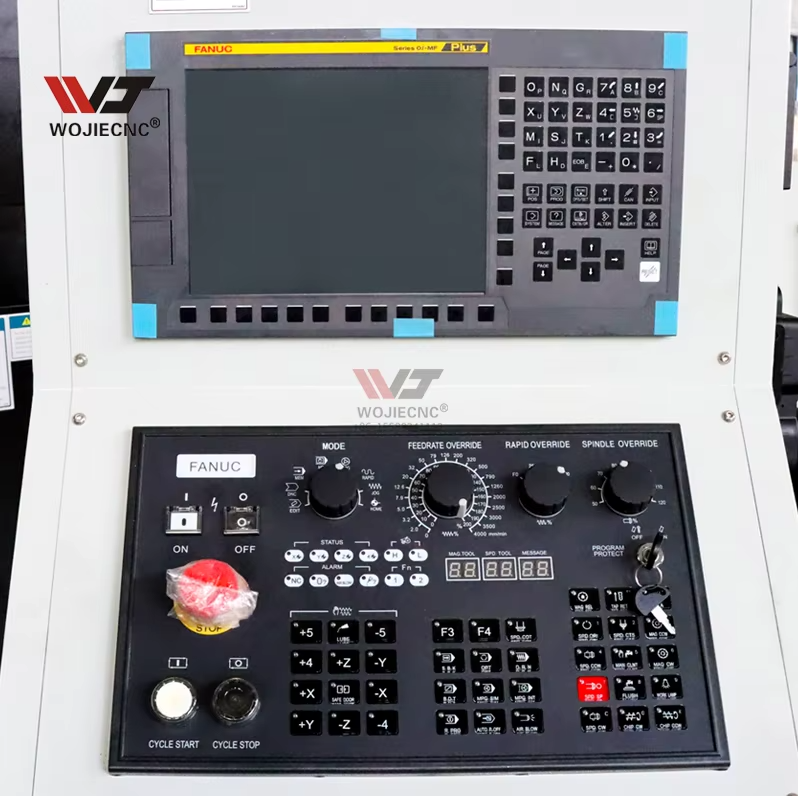

Control Panel
This FANUC control panel offers intuitive operation with a user-friendly interface, precise knobs, and a dedicated emergency stop button, ensuring stable and efficient machining control for the GMC3018.
|

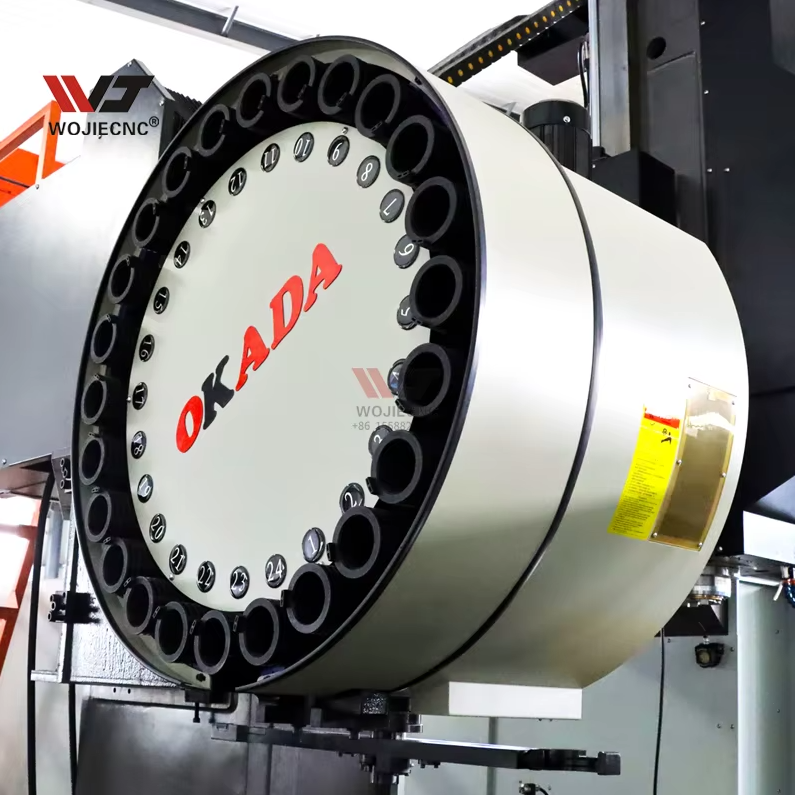

Tool Magazine
The OKADA automatic tool magazine provides fast tool changes with a large capacity, significantly reducing non-cutting time and boosting productivity for complex machining tasks.
|
|
|
 |
|

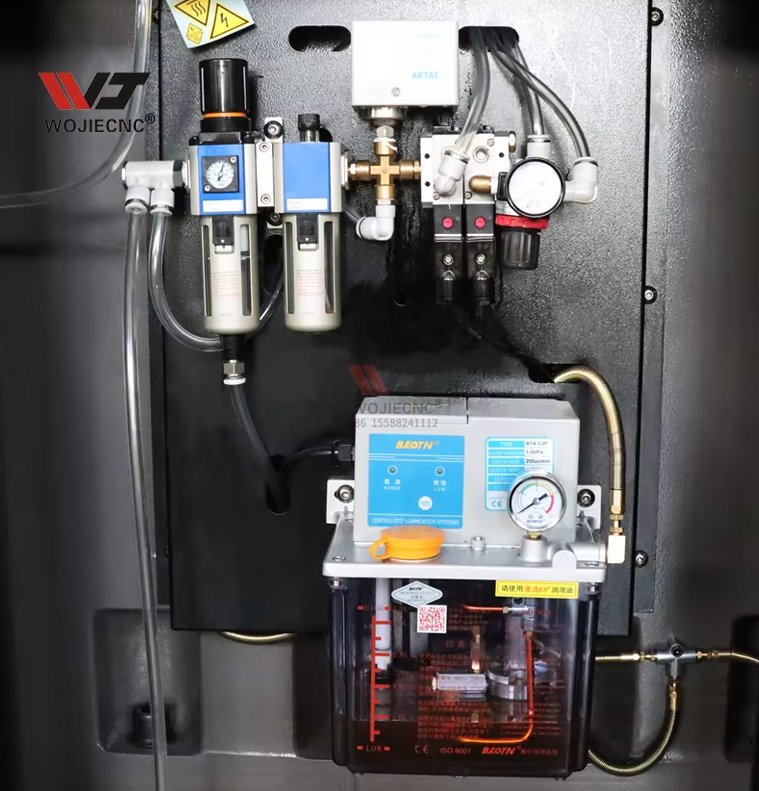

Lubrication System
The centralized lubrication system delivers automatic, precise oil supply to key components, effectively reducing wear, extending service life, and maintaining consistent machining accuracy.
|

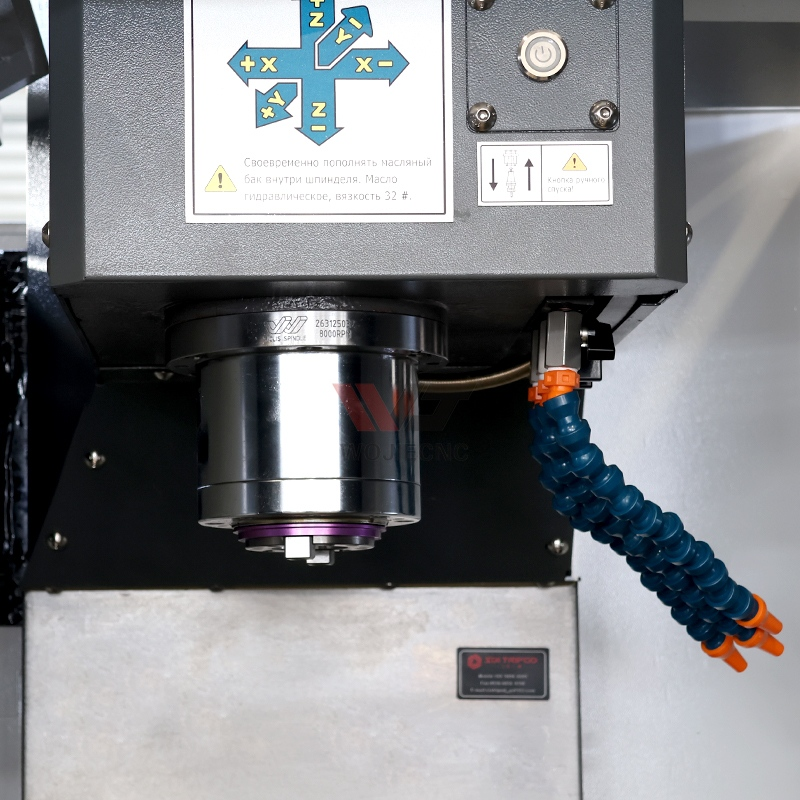

Spindle Unit
The high-performance spindle unit features robust construction and stable rotation, delivering high cutting power and precision to meet the demands of heavy-duty and high-precision machining.
|
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .When we receive the advance payment,
we will start to make production.when the machine is ready , we will take pictures to you.
after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine,
we can ready the machine within 15days.
if some special machines will be some longer.
The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.
You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
