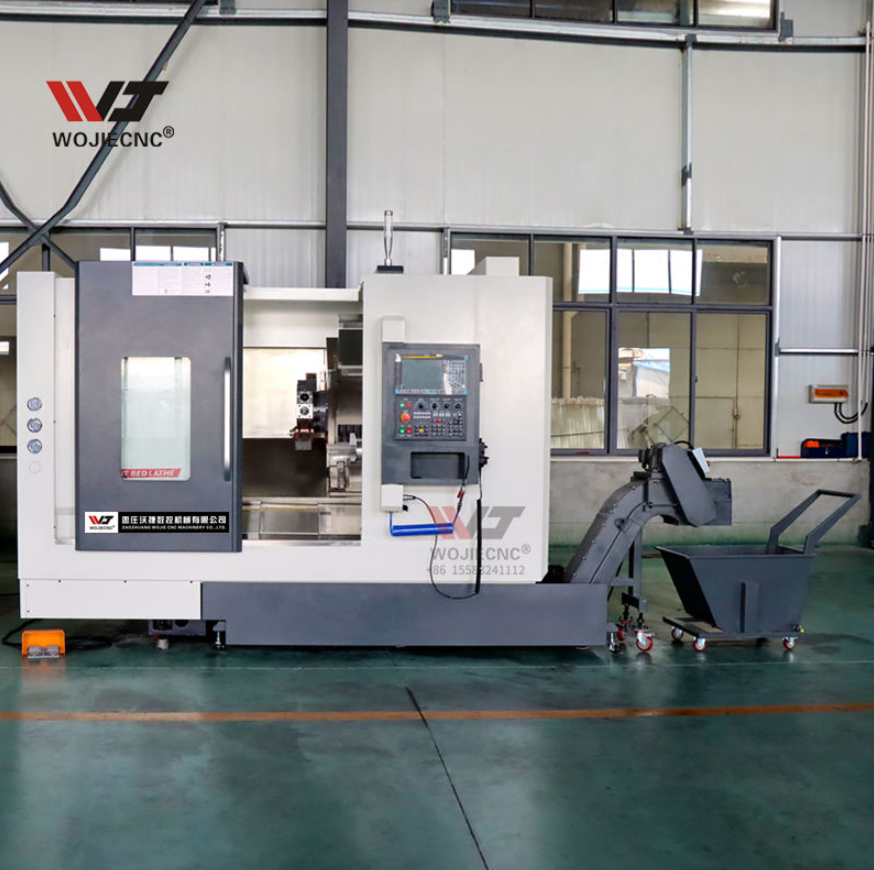

Best Quality Double Spindle Cnc Lathe WJ650-750 Lathe Cnc Machine with 2 Spindles

Description:

Specifications:

Item	WJ650-750 (BMT45Y)	WJ650-750 (BMT55Y)
Model	WJ650-750	WJ650-750
Maximum swing diameter over bed	Φ650	Φ650
Maximum process diameter	Φ250 (BMT45Y)	Φ250 (BMT55Y)
Maximum process diameter above tool turret	Φ250	Φ370
Maximum process length	650 BMT45Y	650 BMT55Y
Spindle type	A2-6 (8")	A2-6 (8")
Spindle motor power	11-15KW	11-15KW
Maximum spindle speed	4200rpm	4200rpm
Spindle hole diameter	Φ66	Φ66
Bar diameter	Φ52	Φ52
Sub spindle type	A2-5 (6")	A2-5 (6")
Maximum spindle speed (Sub spindle)	6000rpm	6000rpm
Spindle hole diameter (Sub spindle)	Φ56	Φ56
Bar diameter (Sub spindle)	Φ42	Φ42
X/Z axis screw specifications	3210/4010/3210	3210/4010/3210
X axis limit travel	270	270
Recommended X axis motor torque	15N.M	15N.M
X/Z axis rail specifications	45/45	45/45
Z axis limit travel	810	810
Recommended Z axis motor torque	15N.M	15N.M
Sub axis rail specifications	35	35
Sub axis limit travel	650	650
X, Z, sub axis connection method	Direct connection	Direct connection
Optional turret (special configuration)	BMT55Y	BMT55Y
Recommended turret center height	170mm	170mm
Y axis travel	±50	±50
Bed form	30°	30°
Overall dimensions	2100×1386×1435	2100×1386×1435
Weight	2700kg	2700kg

Standard Accessories

1. System: GSK

2. Servo spindle motor

3. Stepless speed changer

4. 12 station tool turret

5. Hydraulic chuck

6. Linear rails

7. Lighting system

8. Cooling system

9. Automatic lubrication system

Optional Accessories

1. System: GSK, KND, Siemens, Fanuc etc

2. Tool post (turret): BMT55Y 12-station tool power turret

3. Chuck: Spring chuck, Hydraulic chuck, pneumatic chuck

4. Feeder: Automatic Bar feeder

5. Conveyor: Automatic chip conveyor

Detailed Images:

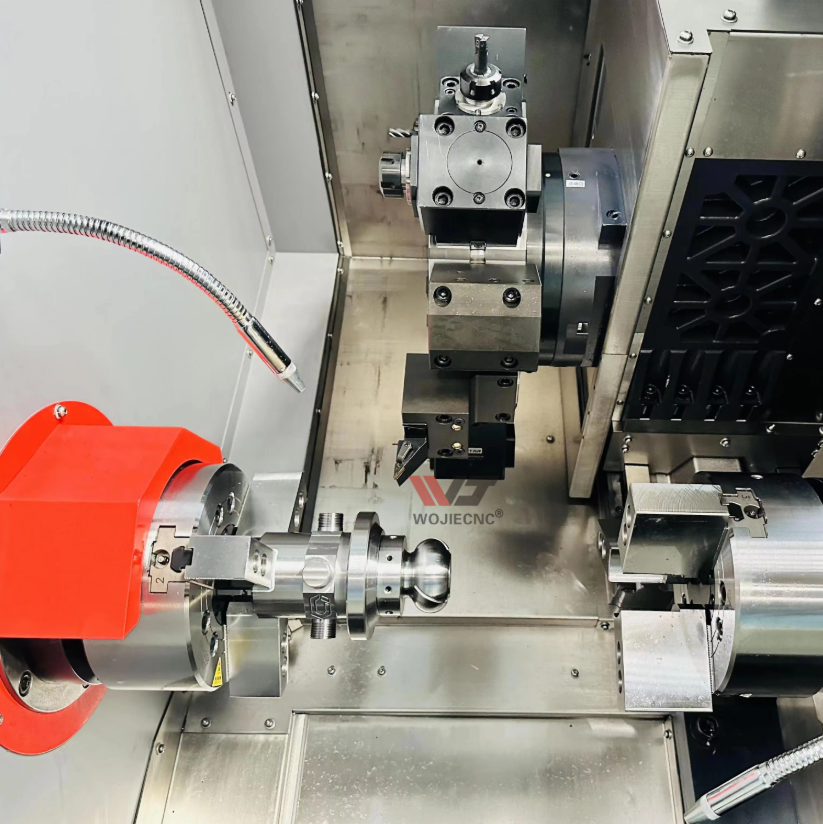

Two spindle 2 spindle can processing workpiece 2 side more time saving	12 station power tool turret with Y aixs Workpieces can be processed on both sides, which is more efficient

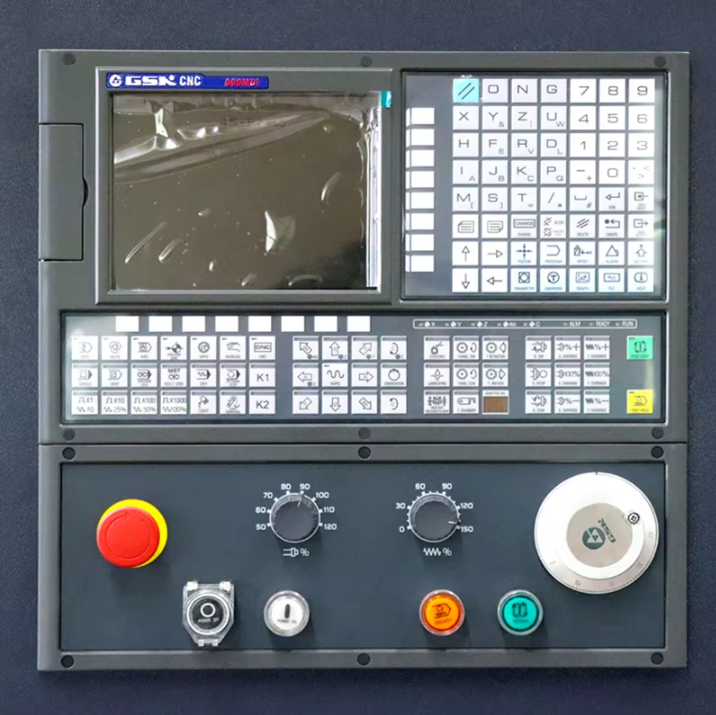

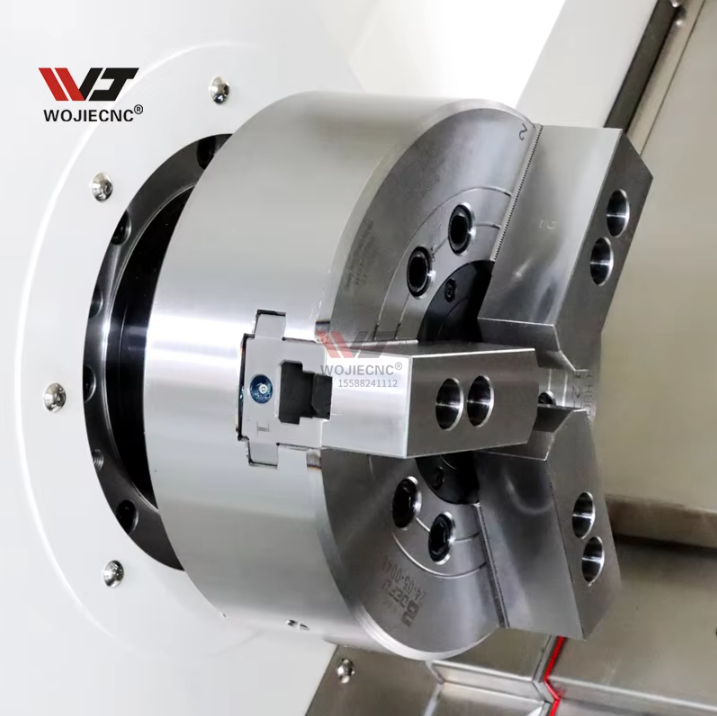

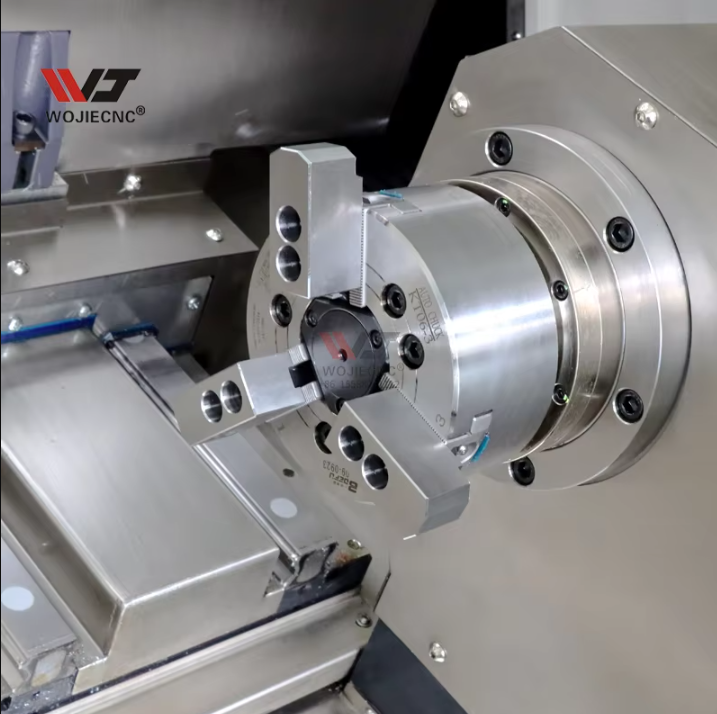

Control system Standard configuration: GSK. Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubishi.	Hydraulic chuck Standard configuration:8" Optional configuration: 10" / 12" hydraulic chuck.

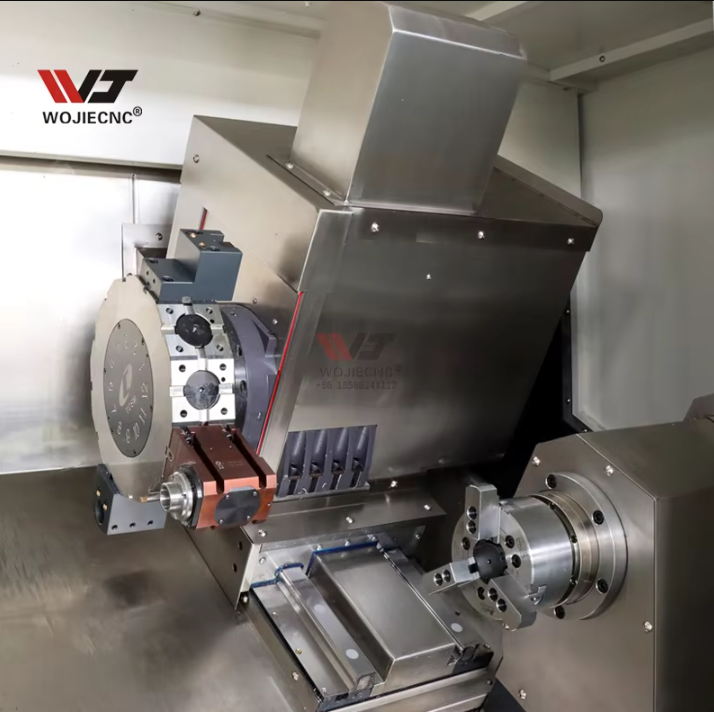

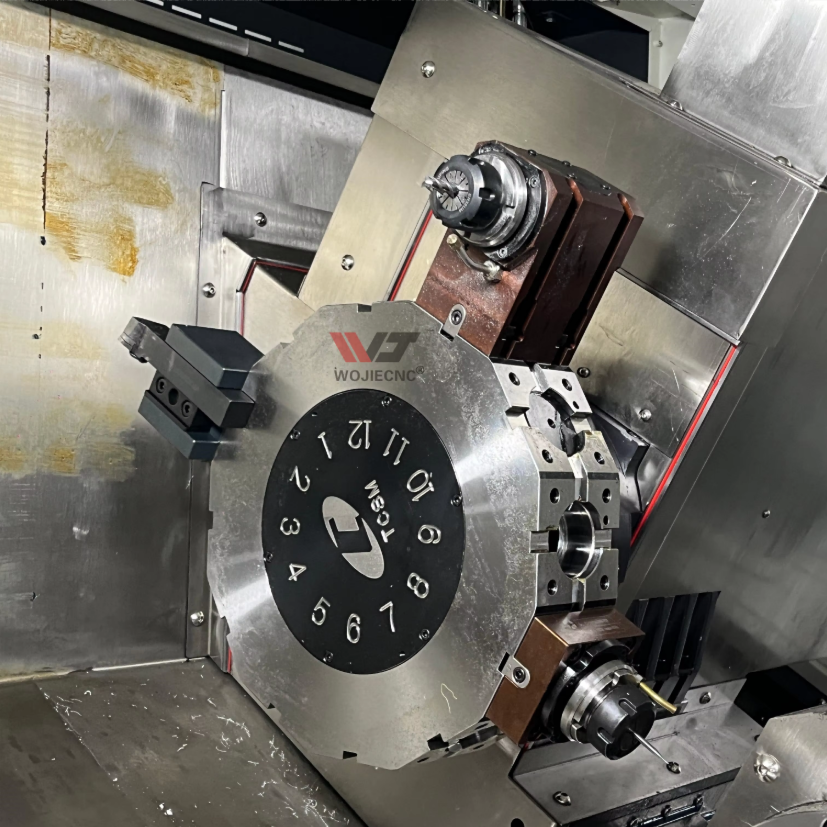

Turret 12 station power Turret.	Sub-spindle 6-inch hydraulic chuck.

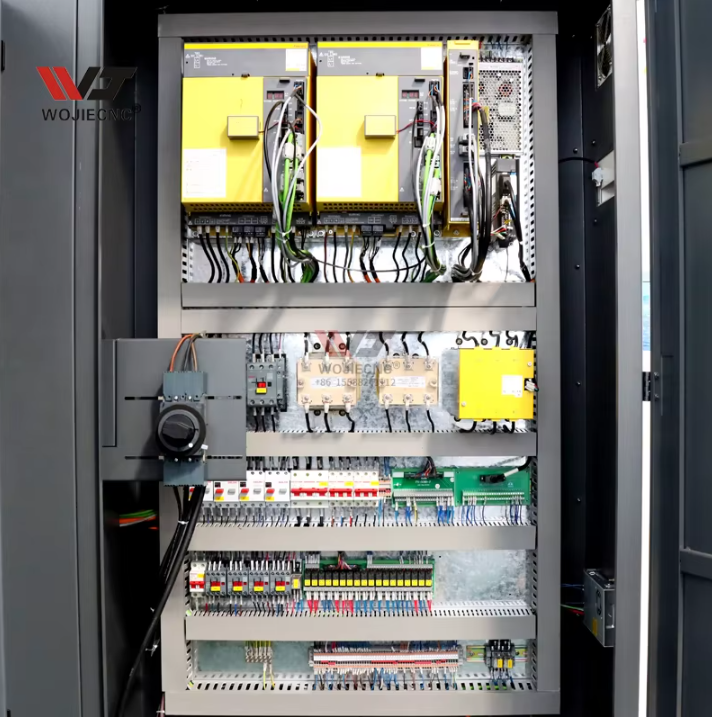

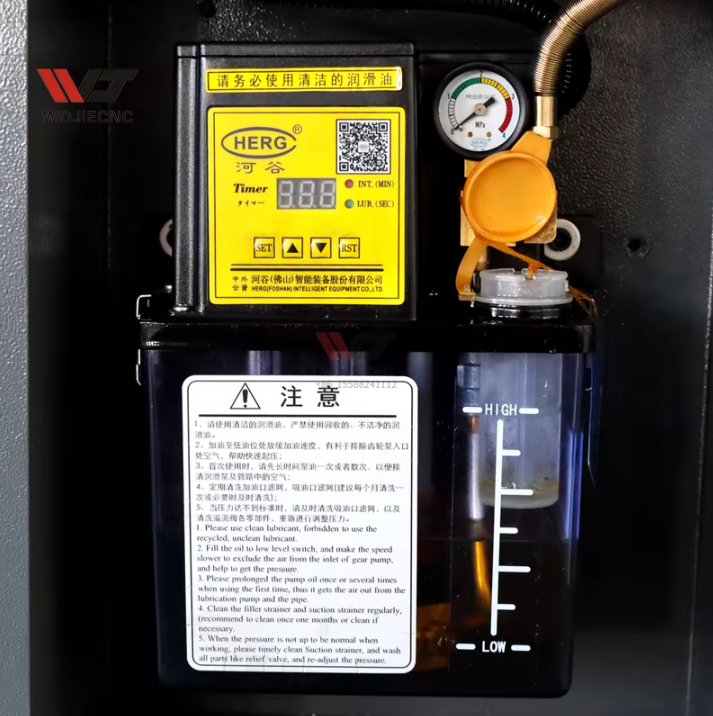

Electrical part Standard configuration: DELIXI.	Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.

Company Introduction:

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:

1. More than 60,000m² of the factory with more than 150 workers.

2. Strictly QC control with more than 24 steps testing processes.

3. 30+ years CNC machine manufacture experience factory.

4. 24 hours online service at any time.

5. Trade with customers in more than 150 countries around the world.

6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.

7. Support ODM OEM.

8. Warranty time is 24 months.

We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

FAQ:

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .When we receive the advance payment,

we will start to make production.when the machine is ready , we will take pictures to you.

after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine,

we can ready the machine within 15days.

if some special machines will be some longer.

The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter.

You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
