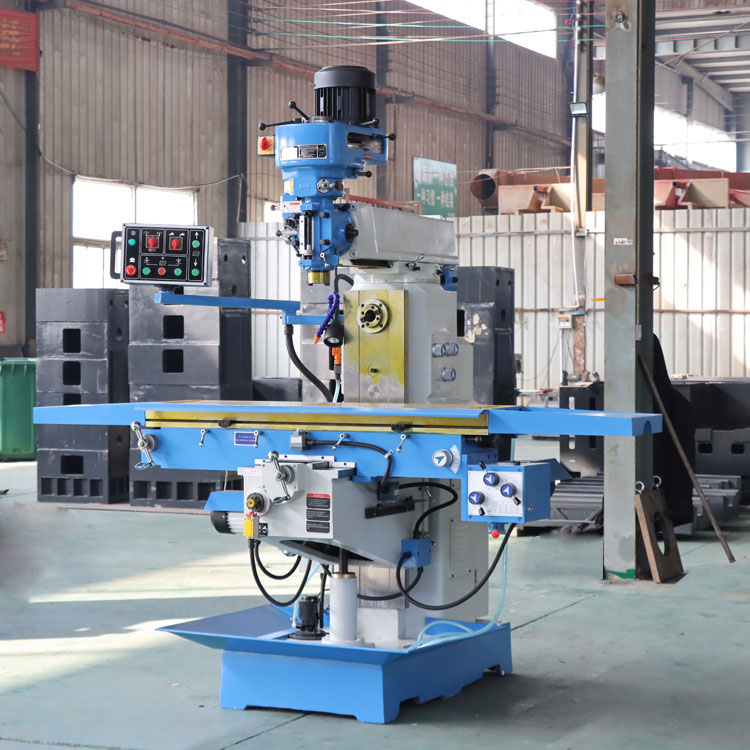

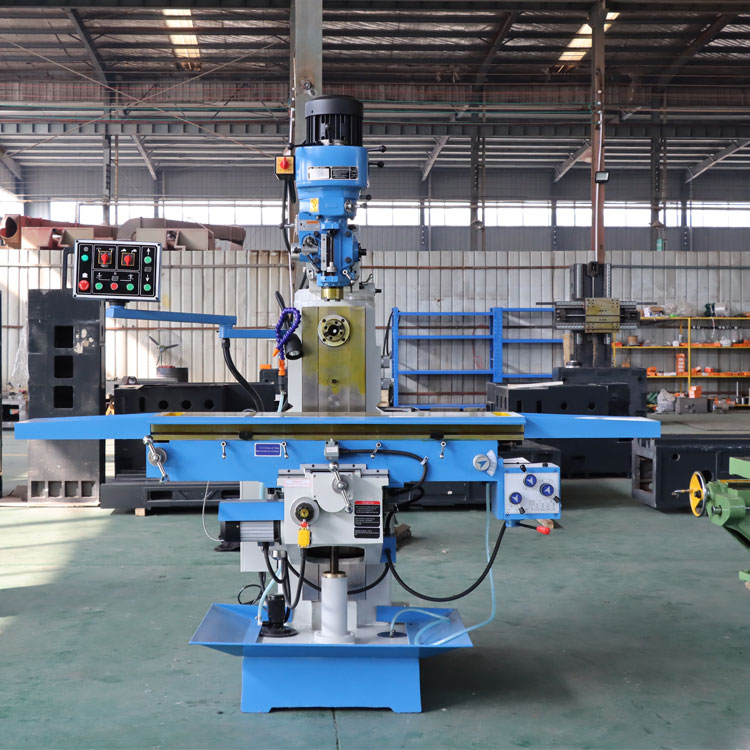

China General X6332 Vertical and Horizontal Turret Milling Machine Metal Surface Grinding 5HW Rocker Milling Machine
|
Item |
Specification |
|
Type |
VERTICAL |
|
Machining Capacity |
Medium Duty |
|
Table Travel (X) (mm) |
1100 |
|
Table Travel (Y) (mm) |
320 |
|
Table Travel (Z) (mm) |
450 |
|
Spindle Taper |
ISO40 |
|
Range of Spindle Speed (r.p.m) |
60 - 4660 r.p.m |
|
Weight (kg) |
2780 |
|
Warranty |
1 Year |
|
Max. Table Load (kg) |
150 |
|
Place of Origin |
Shandong, China |
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
Product Application
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
Product main technical Specifications:
|
Specifications |
Units |
X6332 |
|
Table size |
mm |
1370×320 |
|
Table travel (X/Y/Z) |
mm |
800/300/400 |
|
T slot (number-width-pitch) |
mm |
3-14-70 |
|
Spindle taper |
- |
ISO40 7:24 |
|
Spindle speed range |
rpm |
(V) 50Hz: 65-4500; 60Hz: 80-5440 (16 steps)(H) 40-1300 (12 steps)(Optional, variable) 65-4000 |
|
Spindle travel |
mm |
127 |
|
Spindle feed range |
mm |
0.04, 0.08, 0.15 (3 steps) |
|
Distance between spindle nose and table surface |
mm |
140-540 |
|
Distance between spindle axis and table surface |
mm |
0-400 |
|
Main motor power |
kW |
2.2(V) / 3(H) |
|
Head rotation (left-right) |
° |
±90° |
|
Head rotation (front-rear) |
° |
±45° |
|
Weight |
kg |
2000 |
|
Overall dimension |
mm |
2200×1820×2350 |
Standard Accessories:
Drill chuck
mill chuck
Inner hexagon spanner
Work light
Reduction sleeve
Draw bar
Spindle arbor
Wrench
Optional Accessories:
DRO on X,Y,Z--AXIS
Clamping kit
Universal dividing head
Rotary work table
Detailed Images:
 |
 |
|

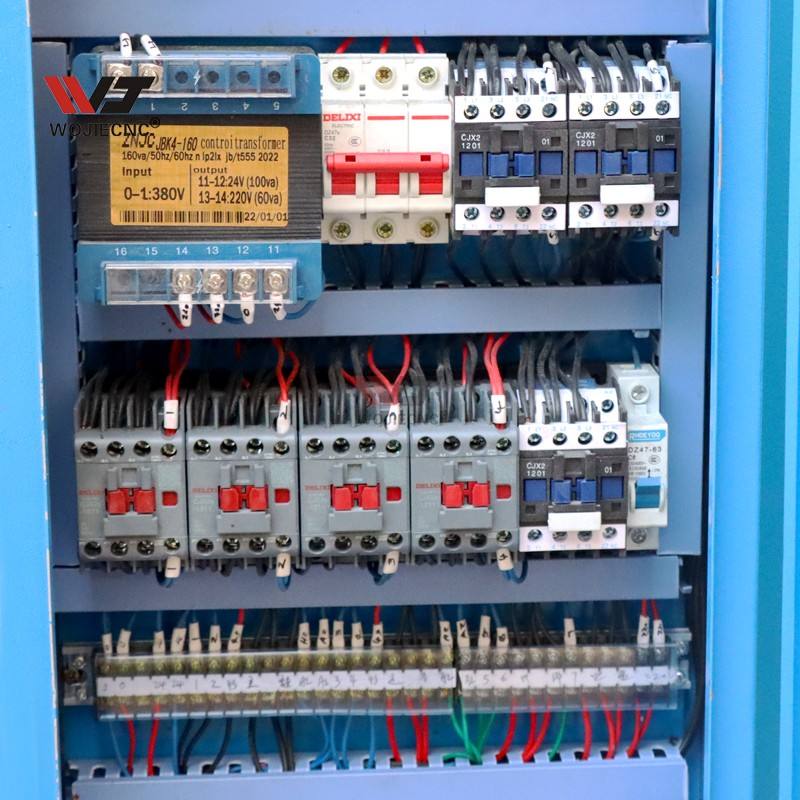

ELECTRICAL BOX
Delixi and Schneider CE as standard equipment
|

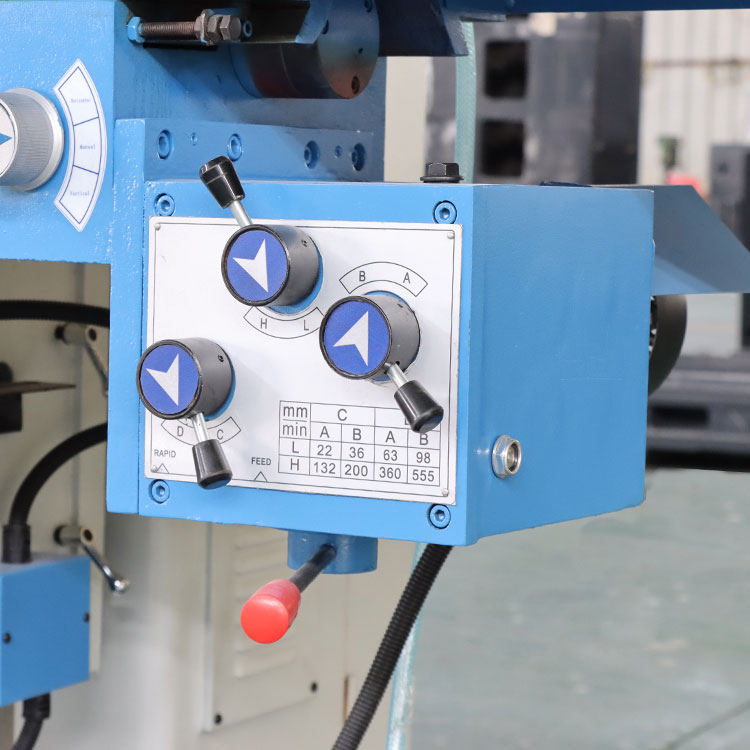

X/Y/Z AUTO FEED
X/Y axis auto feed, Z axis electric lifting, improve processing time.
|
 |
 |
|

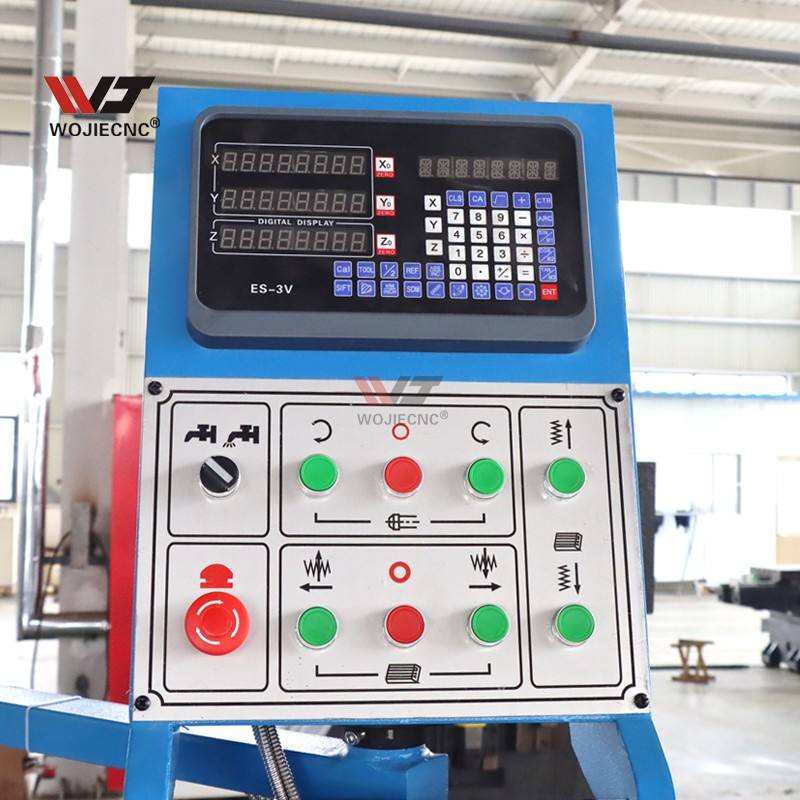

3 AXIS DRO
3 axis digital readout isoptional, need extra cost.
|

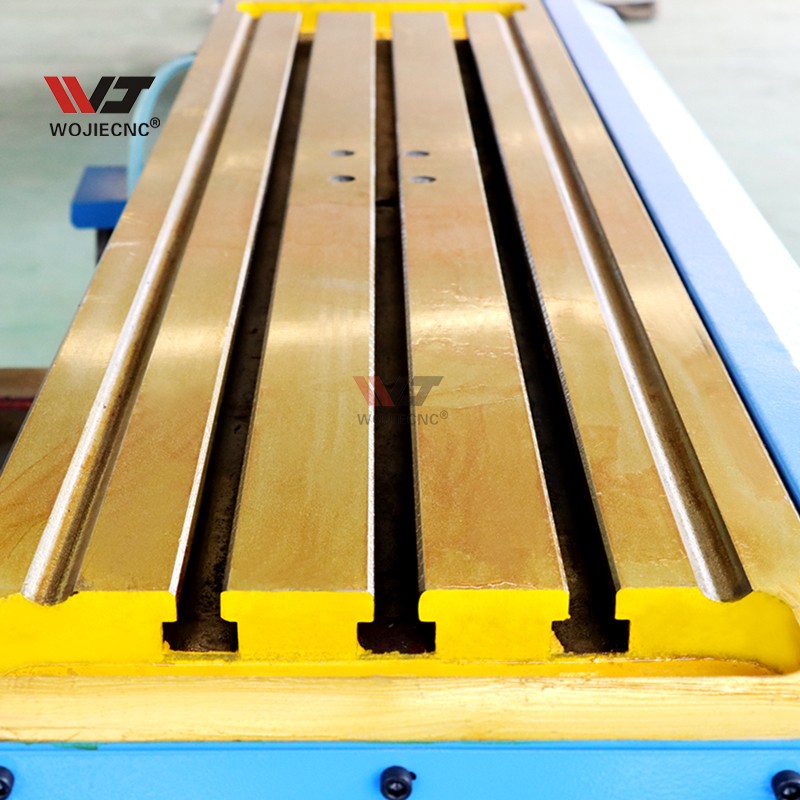

WORKTABLE
Ultra-audio quenching,precision grinding andscraping guide.
|
 |
 |
|

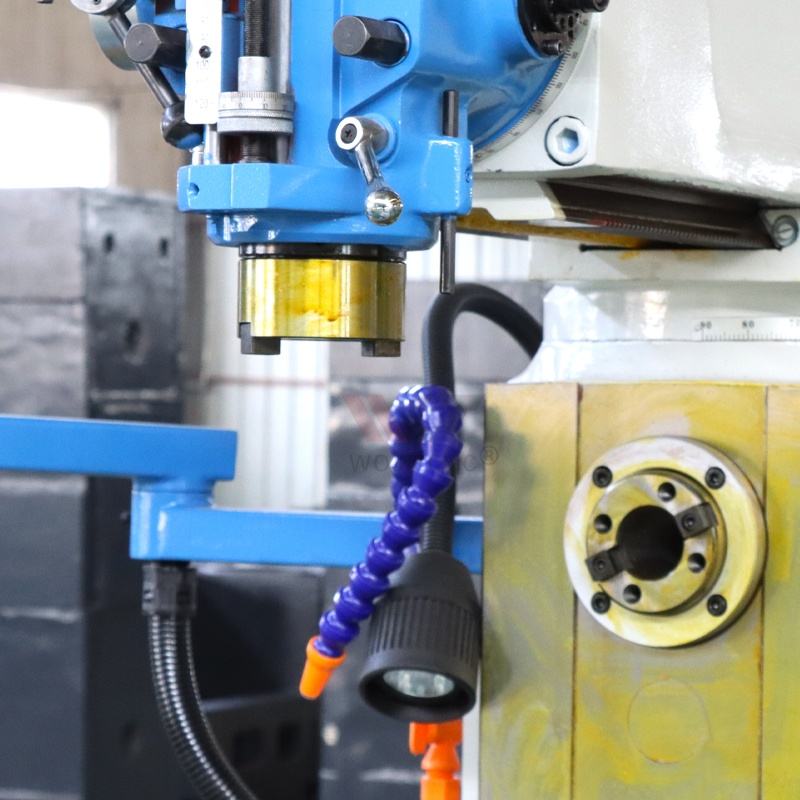

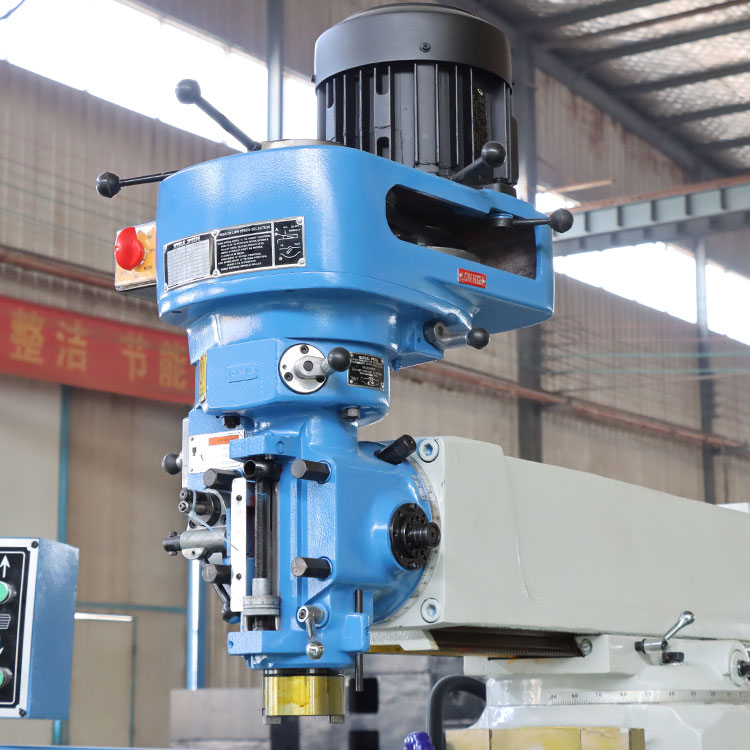

TAIWAN TURRETMILLING HEAD
Tueeet milling head canseivel 45 (front-rear)rotate 90(left-right)
|

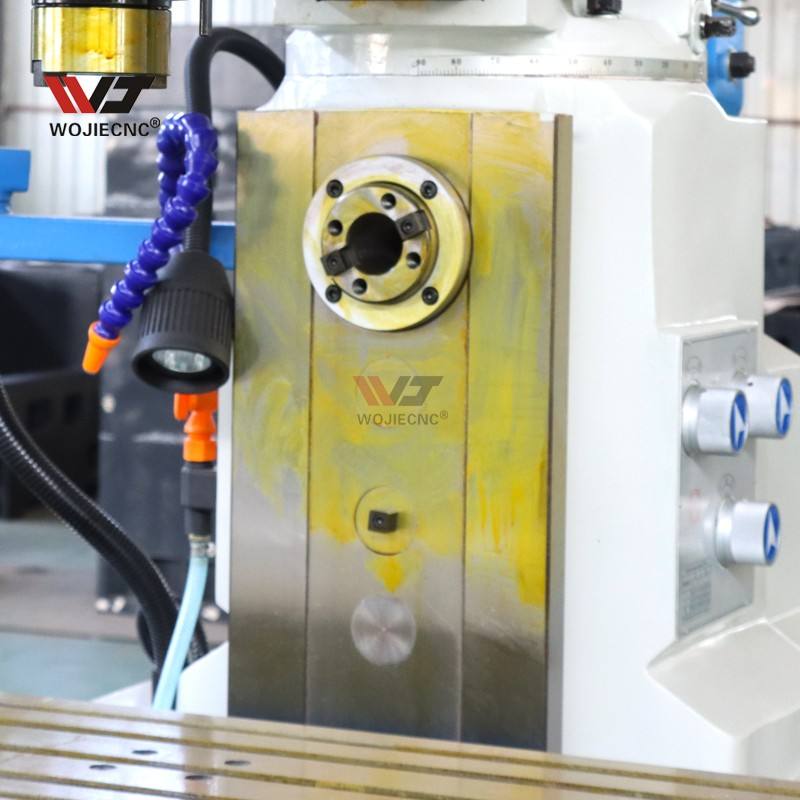

RECTANGULAR GUIDEWAY
Precision grinding and scraping guide rail, high stability.
|
