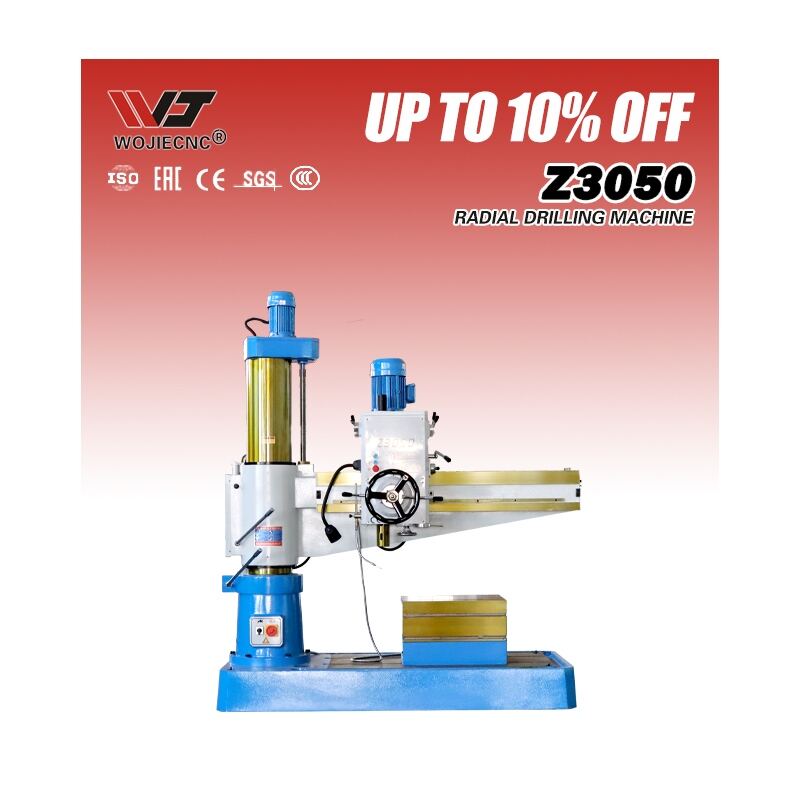

Which drilling machine features ensure stable and accurate hole processing?

Achieving stable and accurate hole processing is one of the most critical challenges in precision manufacturing. Whether you are working with metal components, structural frames, or mechanical assemblies, the quality of every drilled hole depends heavily on the capabilities built into the drilling machine you use. Not all machines are created equal, and the difference between a clean, dimensionally accurate bore and an oversized, misaligned one often comes down to very specific design and engineering features.

In industrial and B2B contexts, selecting the right drilling machine means understanding which features directly contribute to hole accuracy, repeatability, and surface finish quality. This article examines the key design elements that separate high-performance drilling equipment from ordinary alternatives, helping procurement engineers, production managers, and workshop supervisors make better-informed equipment decisions.

Structural Rigidity and Machine Frame Design

The Role of Frame Stiffness in Hole Accuracy

The frame of a drilling machine is not simply a housing for internal components — it is the foundation upon which all cutting forces are absorbed, redirected, and neutralized. When a drill bit engages a workpiece, it generates axial thrust forces as well as radial and torsional loads. If the machine frame lacks sufficient rigidity, these forces cause micro-deflections in the spindle assembly, resulting in holes that deviate from the intended centerline or exhibit poor roundness.

High-quality machines are built using heavy-duty cast iron or fabricated steel columns and bases. Cast iron, in particular, offers excellent vibration-damping properties that help maintain smooth cutting conditions. The cross-sectional geometry of the column also matters significantly — a wider, box-section column provides far greater resistance to bending moments than a narrow cylindrical design.

In radial arm drilling machines, the rigidity of the arm clamping mechanism is equally important. Any looseness in the arm lock translates directly into positional inaccuracy. Premium drilling machine designs incorporate hydraulic clamping systems that lock the arm and spindle head with high, uniform clamping force, eliminating play under load.

Base Plate and Workholding Stability

Stability at the workpiece interface is just as important as structural rigidity in the machine column. A drilling machine with a wide, flat, and precisely machined base table allows workpieces to be clamped firmly and accurately. Insufficient table mass or a warped mounting surface introduces angular errors that propagate directly into drilled hole position errors.

T-slot configurations on the worktable allow for versatile clamping options, enabling operators to secure odd-shaped workpieces without compromising hole position accuracy. Some advanced machines also feature precision-ground table surfaces with defined flatness tolerances, which further improves the reliability of hole positioning across multiple setups.

When evaluating a drilling machine for precision work, buyers should carefully examine the table size relative to typical workpiece dimensions, as well as the load rating of the table. Overloading a small table creates deflection that undermines the accuracy advantages offered by other machine features.

Spindle System Precision and Performance

Spindle Bearing Quality and Runout Control

The spindle is the heart of any drilling machine, and its precision directly determines the accuracy of every hole produced. Spindle runout — the deviation of the rotating spindle axis from the ideal centerline — is a primary indicator of hole quality. Even small amounts of runout cause drill bits to cut oversized holes, degrade surface finish, and reduce tool life significantly.

Precision drilling machine designs use high-grade angular contact or tapered roller bearings with tight preload settings to minimize spindle runout. The quality of bearing mounting, the precision of the spindle bore, and the accuracy of the tool taper all interact to determine final runout performance. Machines intended for close-tolerance work typically specify spindle runout values of less than 0.01mm, and some advanced models achieve even tighter tolerances.

Thermal stability of the spindle assembly is another often-overlooked factor. During prolonged operation, heat generated at the spindle bearings causes dimensional changes that shift the effective cutting axis. Machines with proper bearing lubrication systems and thermally stable designs maintain consistent hole position accuracy even during extended production runs.

Spindle Speed Range and Feed Rate Control

Matching the spindle speed and feed rate to the workpiece material and drill diameter is essential for achieving accurate, clean holes. A drilling machine with a wide speed range gives operators the flexibility to optimize cutting conditions for materials ranging from soft aluminum to hardened steel. Running a drill at incorrect speed causes excessive heat buildup, vibration, and premature tool wear — all of which degrade hole accuracy.

Fine feed rate control is equally important, particularly for deep holes or precision-tolerance applications. Machines equipped with mechanical or electronic fine-feed mechanisms allow operators to advance the drill at a controlled, steady rate that promotes smooth chip evacuation and prevents the drill from 'wandering' under inconsistent loading. In production environments, consistent feed rates also improve repeatability from hole to hole.

Modern drilling machine designs often incorporate stepless variable speed drives that allow continuous adjustment of spindle speed without interrupting the cutting process. This capability is particularly valuable when drilling composite materials or workpieces with variable hardness, where the optimal cutting speed may differ significantly from the nominal value.

Positional Accuracy and Depth Control Features

Depth Stop Mechanisms and Measurement Systems

Hole depth accuracy is a critical parameter in many industrial applications, including threaded fastener installations, bearing seats, and fluid passage drillings. A drilling machine that lacks precise depth control forces operators to rely on manual feel or frequent measurement interruptions, both of which introduce inconsistency and increase cycle time.

High-performance machines incorporate positive-stop depth mechanisms that halt spindle travel at a precisely set depth. These systems may use mechanical stop collars, micrometer-adjustable depth gauges, or electronic linear encoders, depending on the application requirements. Machines with digital depth readouts allow operators to set and verify depth targets quickly, reducing setup time and minimizing the risk of under- or over-drilling.

In batch production scenarios, repeatable depth control directly impacts downstream assembly quality. A drilling machine equipped with reliable depth control not only produces more consistent parts but also reduces the inspection burden on quality control teams. Over the lifecycle of a production program, this capability delivers measurable savings in rework and scrap costs.

Coordinate Positioning and Workpiece Alignment

For applications requiring multiple holes with precise relative positioning, the drilling machine must offer accurate and repeatable coordinate positioning capabilities. Radial arm drilling machines, for example, allow the spindle head to travel along the arm and rotate around the column, positioning the drill over a wide work area. The accuracy of this positioning is governed by the quality of the arm scale, the spindle head clamping mechanism, and the precision of any digital readout system installed.

Machines equipped with digital readout systems or CNC positioning capability eliminate cumulative positioning errors that occur when operators manually interpret graduated scales. For hole pattern work, even a small systematic error in each positioning step adds up to significant deviation across a multi-hole layout. Digital positioning systems with sub-millimeter resolution help maintain pattern accuracy in demanding applications.

Effective workpiece alignment before drilling also plays a crucial role. Features such as precision-machined reference edges on the worktable, alignment pins, and adjustable stop blocks allow operators to set up workpieces consistently and reproducibly. A drilling machine that supports accurate workpiece alignment reduces the reliance on individual operator skill and promotes more consistent output across shifts.

Vibration Damping and Cutting Stability

How Vibration Affects Hole Quality

Vibration during drilling is one of the most damaging factors affecting hole quality. Chatter and resonance between the cutting tool, workpiece, and machine structure create cyclical cutting forces that cause bell-mouthing at the hole entry, poor roundness, and surface roughness that exceeds drawing specifications. In severe cases, vibration can cause drill breakage and workpiece damage that results in costly scrapped parts.

A drilling machine with high structural mass and good vibration isolation characteristics is inherently more resistant to chatter. Cast iron machine components absorb vibration energy more effectively than welded steel fabrications of the same size, which is one reason why heavy-duty cast iron construction remains the preferred choice for precision drilling applications. The design of internal ribbing and cross-bracing within the machine frame also influences the natural frequencies of the structure, which should be kept well away from typical cutting excitation frequencies.

Proper tool clamping also contributes to vibration control. Loose tool-to-spindle interfaces amplify cutting forces into vibration. Machines with precision spindle tapers and reliable draw-bar or chuck retention systems maintain firm tool contact throughout the drilling cycle, ensuring that cutting forces are transmitted cleanly into the machine structure rather than being expressed as oscillatory motion at the drill tip.

Arm and Head Clamping for Dynamic Stability

On radial arm drilling machines, the clamping of the arm and spindle head during the cutting operation is a critical stability factor. If either of these assemblies is not rigidly locked before drilling commences, the cutting forces will cause small movements that manifest as positional errors and increased vibration. Hydraulic clamping systems that lock the arm, column, and head simultaneously provide the most reliable and consistent clamping force available on this class of drilling machine.

Operators working with hydraulic clamping systems consistently report better hole quality and reduced drill breakage compared to manually tightened mechanical clamps, particularly when drilling hard materials or using large-diameter drill bits. The consistent clamping force provided by hydraulic systems eliminates the variability introduced by human tightening effort, which is especially important in high-volume production environments where multiple operators use the same drilling machine across different shifts.

Evaluating the clamping system quality should be a priority when selecting a drilling machine for close-tolerance or high-volume work. A machine with inadequate clamping may appear to perform adequately during initial trials but will reveal its limitations under sustained production conditions or when tooling wear increases cutting forces over time.

Control Systems and Operator Interface Features

Feed Engagement and Overload Protection

Modern drilling machine designs increasingly incorporate automatic feed engagement mechanisms that deliver consistent, controlled drill advancement throughout the cutting cycle. Unlike manual feed operations where operator fatigue and attention variation cause inconsistent entry conditions, automatic feed systems maintain steady engagement from the moment the drill contacts the workpiece surface. This consistency is particularly valuable for producing clean hole entry conditions and maintaining perpendicularity.

Overload protection mechanisms are equally important in a production drilling machine. When a drill encounters unexpected hard spots, inclusions, or breakthrough conditions, the cutting force can spike dramatically. Machines with torque-limiting clutches or electronic overload protection respond to these force spikes by disengaging the feed drive before catastrophic tool breakage occurs. This protection feature reduces tooling costs and prevents machine damage, delivering long-term economic benefits that justify its inclusion in equipment specifications.

The responsiveness and reliability of the control system also affect how quickly operators can set up new jobs and transition between drilling parameters. Machines with clearly organized control panels, tactile feedback from feed selectors, and readable depth display scales reduce setup errors and shorten the time between workpiece changes, improving overall equipment productivity.

Digital Readouts and Smart Features

The integration of digital readout systems into conventional drilling machine designs has significantly improved the usability and accuracy of these machines in industrial environments. Digital displays for spindle depth, coordinate position, and spindle speed give operators immediate, unambiguous feedback about cutting parameters, reducing reliance on analog scales that are subject to parallax reading errors and wear-related inaccuracies.

Some contemporary drilling machine models offer programmable depth presets that allow operators to store multiple depth targets for complex parts requiring several different hole depths. This programmability eliminates the need to manually reset depth stops between drilling operations, reducing setup time and the risk of incorrect depth setting on subsequent holes.

As industrial production demands continue to evolve, the drilling machine is increasingly expected to serve not only as a standalone cutting tool but also as a data source within broader production monitoring systems. Features such as programmable cycle tracking, maintenance interval alerts, and connectivity to production management software are becoming more relevant to buyers investing in long-term production capacity.

FAQ

What spindle specification should I prioritize when selecting a drilling machine for precision work?

Spindle runout is the most critical specification for precision hole processing. Look for a drilling machine that specifies a maximum spindle runout of 0.01mm or less at the taper nose. Additionally, evaluate the spindle bearing quality, the tool taper standard, and the thermal stability design, as all three factors interact to determine hole roundness, positional accuracy, and surface finish quality in real production conditions.

How does the type of clamping system on a radial arm drilling machine affect hole accuracy?

The clamping system directly controls whether the arm and spindle head remain perfectly stationary during the drilling cycle. Hydraulic clamping systems provide higher and more consistent locking force than manual mechanical clamps, which reduces micro-movement under cutting loads. This stability translates into improved hole positional accuracy, better perpendicularity, and reduced vibration — all of which are especially important when using large drill diameters or drilling hard materials on a radial arm drilling machine.

Can depth control features on a drilling machine reduce scrap rates in batch production?

Yes, reliable depth control is one of the most impactful features for reducing scrap in batch drilling operations. Machines equipped with precise depth stop mechanisms, digital depth readouts, or programmable depth presets consistently produce holes within specified depth tolerances, eliminating the variability that leads to under-drilled blind holes or over-drilled breakthrough errors. Over a production run of hundreds or thousands of parts, this consistency significantly reduces rework and inspection costs associated with depth non-conformances.

What role does machine weight and construction material play in drilling accuracy?

Machine weight and construction material directly influence vibration resistance and structural rigidity, both of which are fundamental to drilling accuracy. Heavier machines built from cast iron provide superior vibration damping compared to lighter fabricated steel alternatives, which is particularly important when drilling at high speeds or using large-diameter tooling. The mass of the machine base also resists the reactive forces generated during drilling, preventing the entire drilling machine from shifting or rocking in response to cutting loads — a factor that becomes critical in high-precision or high-volume production environments.
