High Precision Slant Bed CNC Lathe TCK56A CNC Lathe Machine CNC Turning Milling Machine with Drive Tool

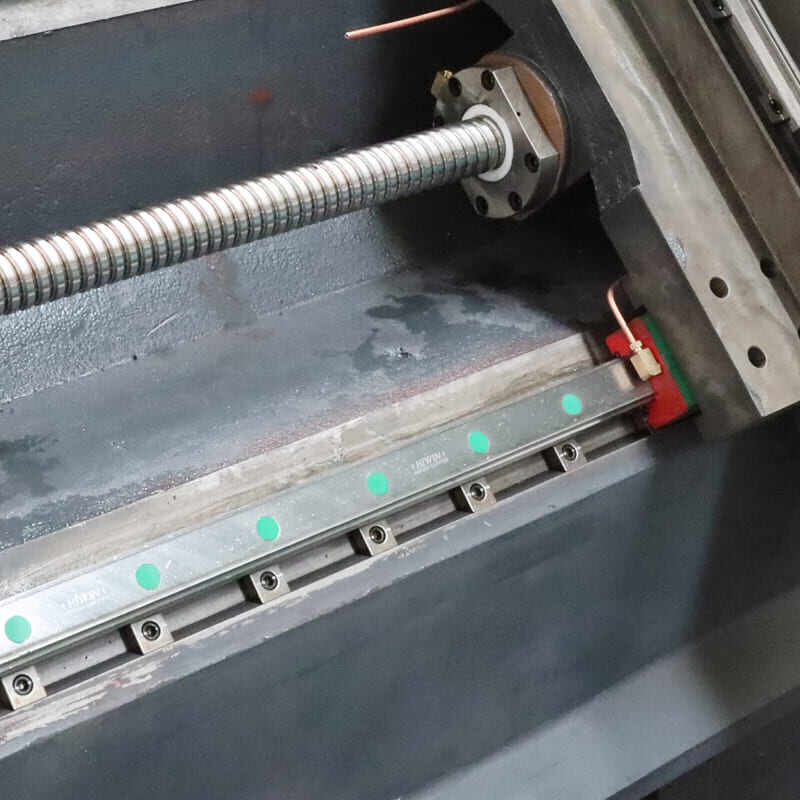

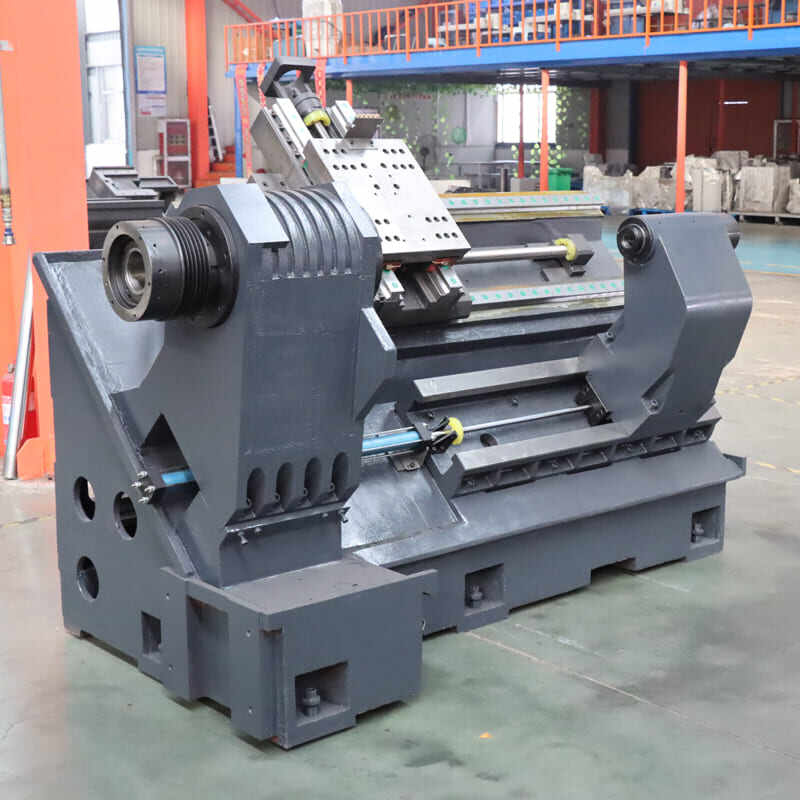

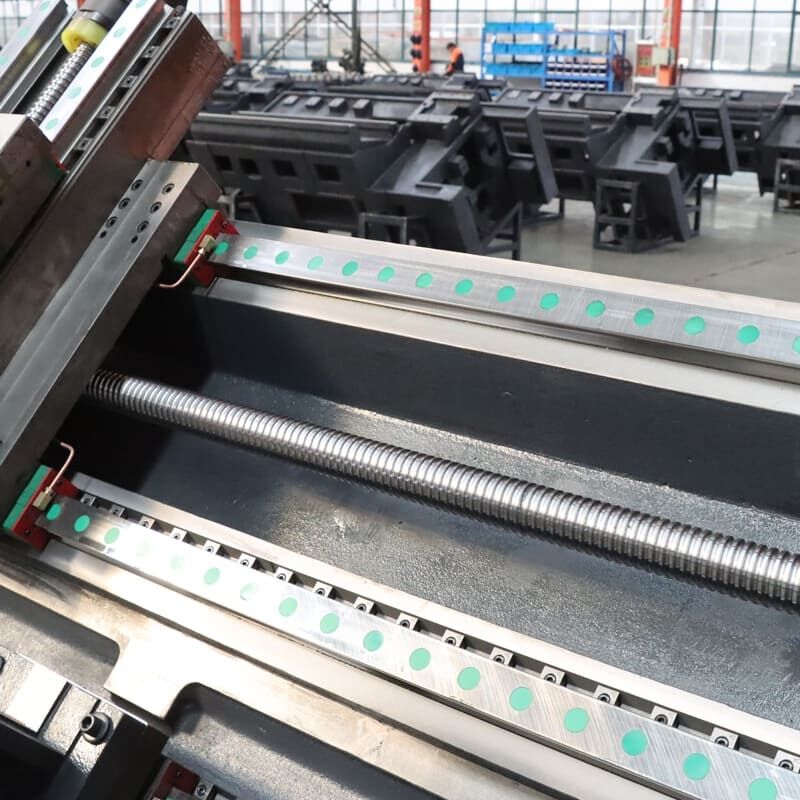

This series of machine tools adopts an integral bed with a 30° bevel angle, and the bed material is HT300. It is cast using resin sand technology and has a reasonable internal rib layout. The guide rail adopts imported linear roller guide rail, which has improved feeding accuracy, small friction resistance, good rigidity, high resistance to vibration and deformation, allowing users to obtain higher processing accuracy, increase the speed of rapid movement, and obtain higher production efficiency.
- Description
- Specifications
- Detailed Images
- Company Introduction
Description:
| Place of Origin: | China |
| Brand Name: | WOJIE |
| Model Number: | TCK56A |
| Certification: | Provided |
| Minimum Order Quantity: | 1 set |
| Price: | 1 - 3 sets $22888 |
| 5 sets $15666 | |
| Max. Swing Diameter (mm) | 560 mm |
| Spindle Motor Power(kw) | 11 kw |
| Packaging Details: | 2200*1600*1900 mm |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Unlimited stock |
Product Application:
This machine is mainly used for processing various shafts, disks and other parts. It can turn all kinds of screw threads, arcs, cones, as well as the internal and external surfaces of planes. It meets the speed requirements for high-speed chip removal when processing ferrous and non-ferrous metals. It is suitable for high-efficiency, large-quantity and high-precision processing of parts in industries such as automotive, motorcycle, electronics, and aerospace. Its machining precision can reach Grade 7.
Specifications:
| Item | WJ56A-500 | WJ56AD-500 | WJ56ADY-500 |
| Maximum swing over bed diameter | Φ560 | Φ560 | Φ650 |
| Maximum machining diameter | Φ470 | Φ380 | Φ400 |
| Maximum machining diameter on the tool holder | Φ330 | Φ330 | Φ360 |
| Maximum machining length | 520 | 480 | 470 |
| Spindle type | A2-6(8 ″)/A2-8(10″) | A2-6(8 ″)/A2-8(10″) | A2-6(8 ″)/A2-8(10″) |
| Spindle motor power | 11 KW | 11 KW | 11 KW |
| Maximum spindle speed | 3500rpm | 3500rpm | 3500rpm |
| Spindle hole diameter | Φ66/Φ82 | Φ66/Φ82 | Φ66/Φ82 |
| Bar diameter | Φ50/Φ70 | Φ50/Φ70 | Φ50/Φ70 |
| X/Z axis limit travel | 270/610 | 260/610 | 270/610 |

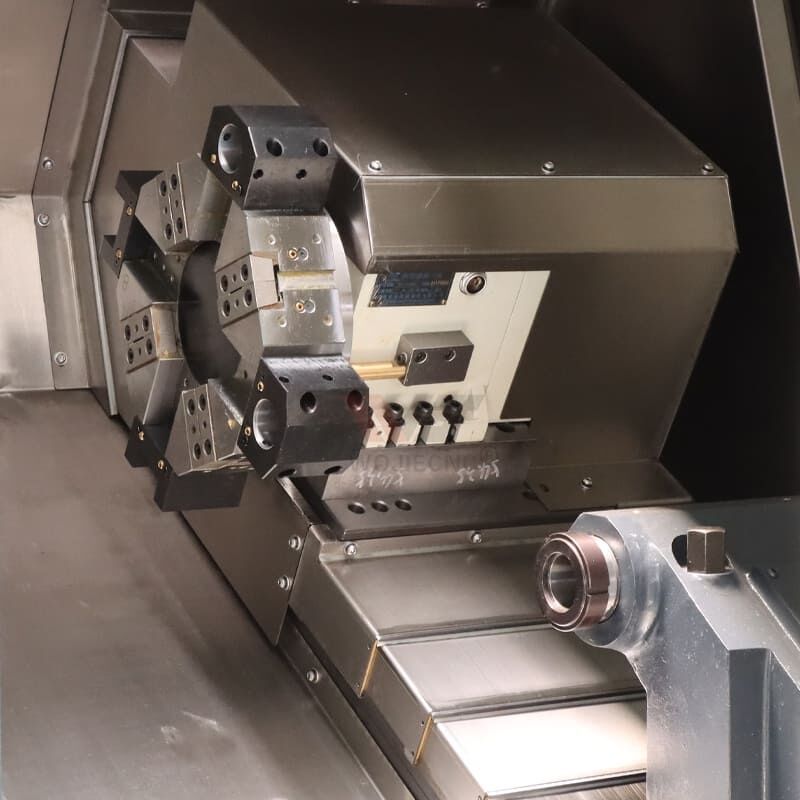

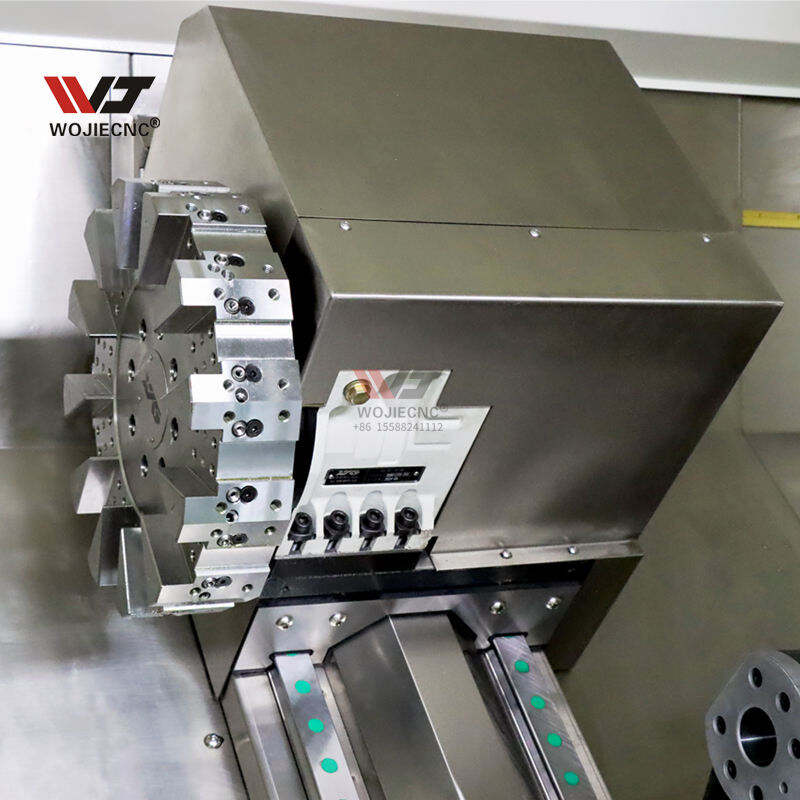

| Turret | 12 Station Hydraulic Turret | BMT45-12 Station Power Turret | BMT55-12 Station Power Turret with Yaxis |

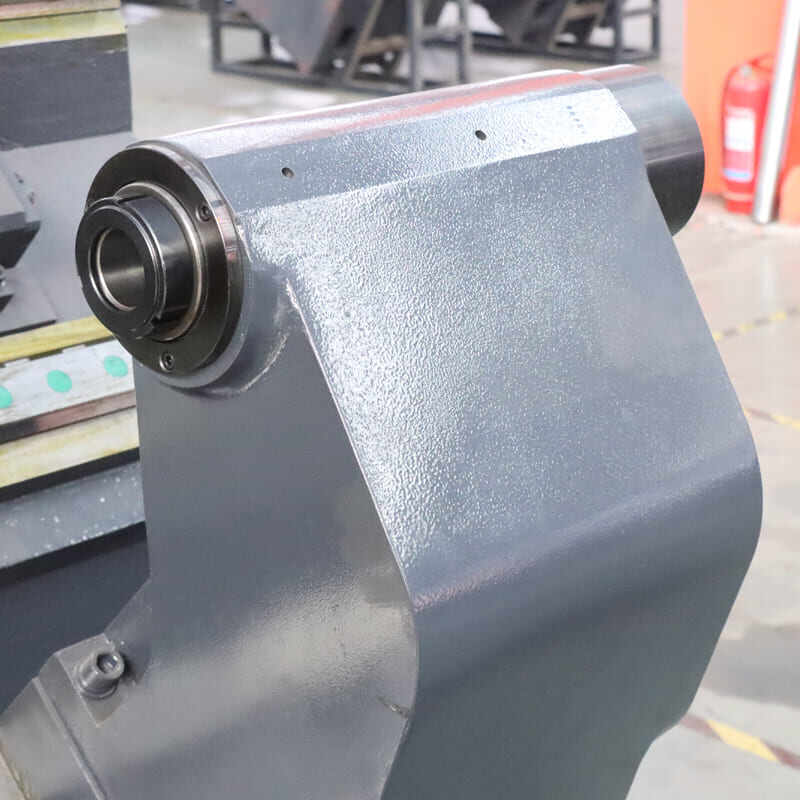

| Maximum tailstock travel | Standard tailstock 450/ | Standard tailstock 500/ | Standard tailstock 500/ |
| Servo programmable tailstock 380 | Servo programmable tailstock 380 | Servo programmable tailstock 380 | |
| Tailstock sleeve taper hole | MT5 | MT5 | MT5 |
| Overall dimensions (length × width × height) | 3300*2130*2320mm | 3300*2130*2320mm | 3300*2130*2320mm |
| Overall dimensions (length × width × height) with chip conveyor | 4045*2170*2490mm | 4045*2170*2490mm | 4045*2170*2490mm |
| Approximate weight | 4000kg | 4200Kg | 4500kg |
| Approximate weight (with chip conveyor) | 4300kg | 4500Kg | 4800kg |
| Approximate weight | 6000kg | 6300kg | 6600kg |
| Approximate weight (with chip conveyor) | 6300kg | 6600kg | 6900kg |

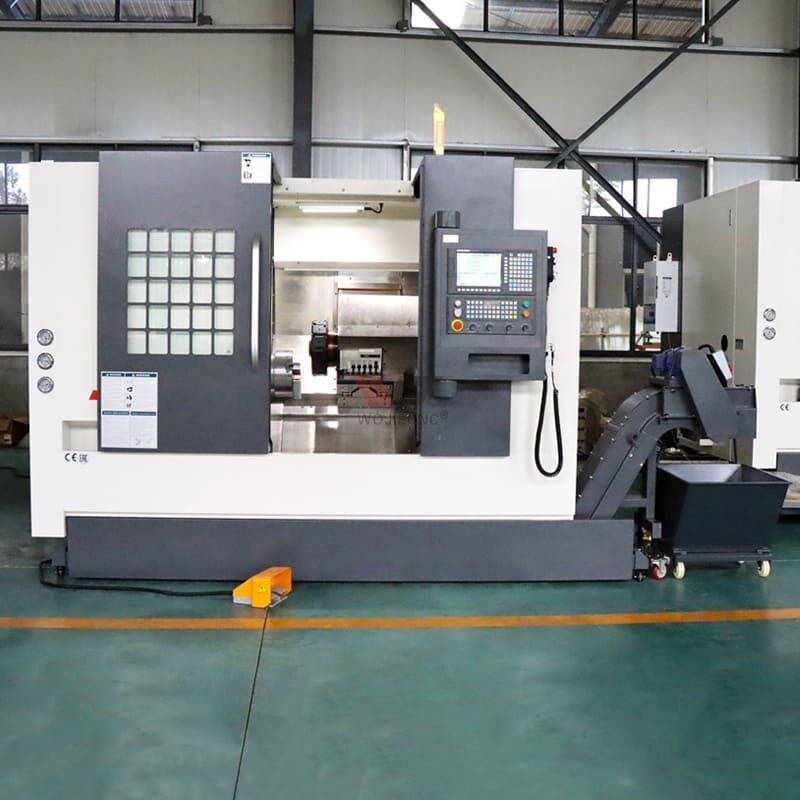

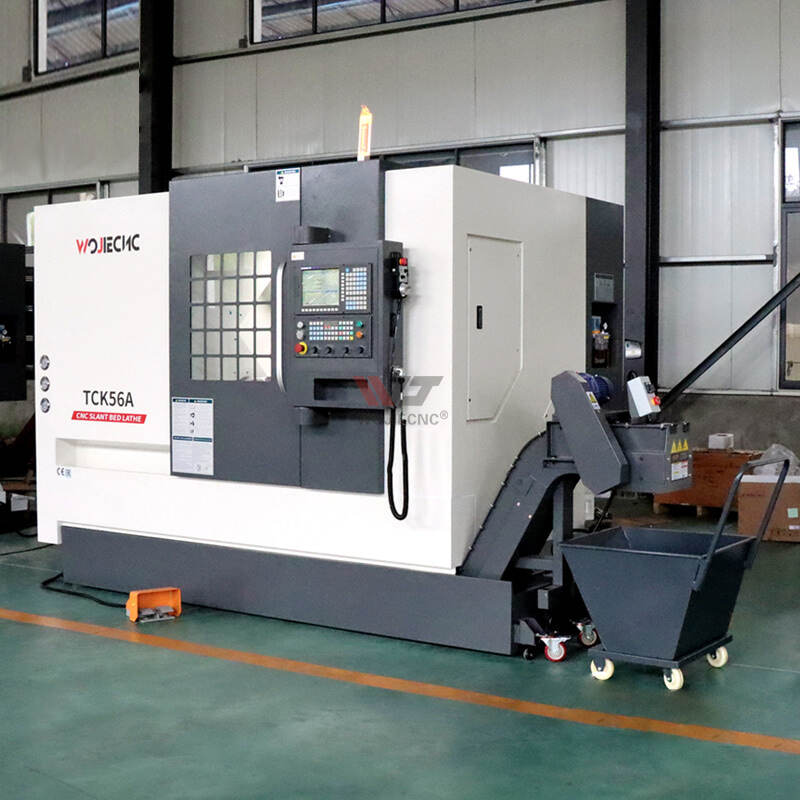

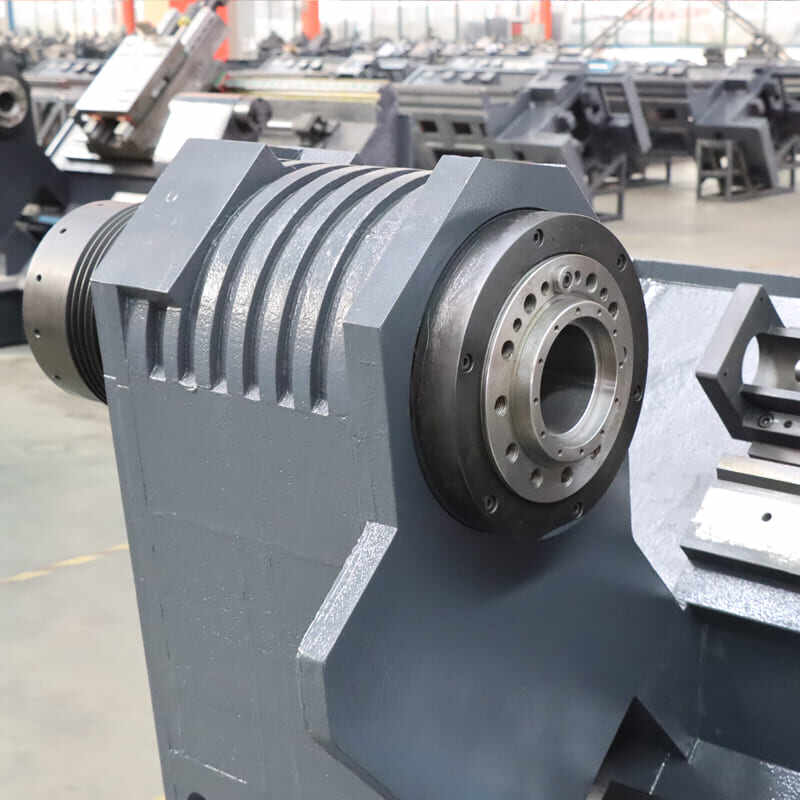

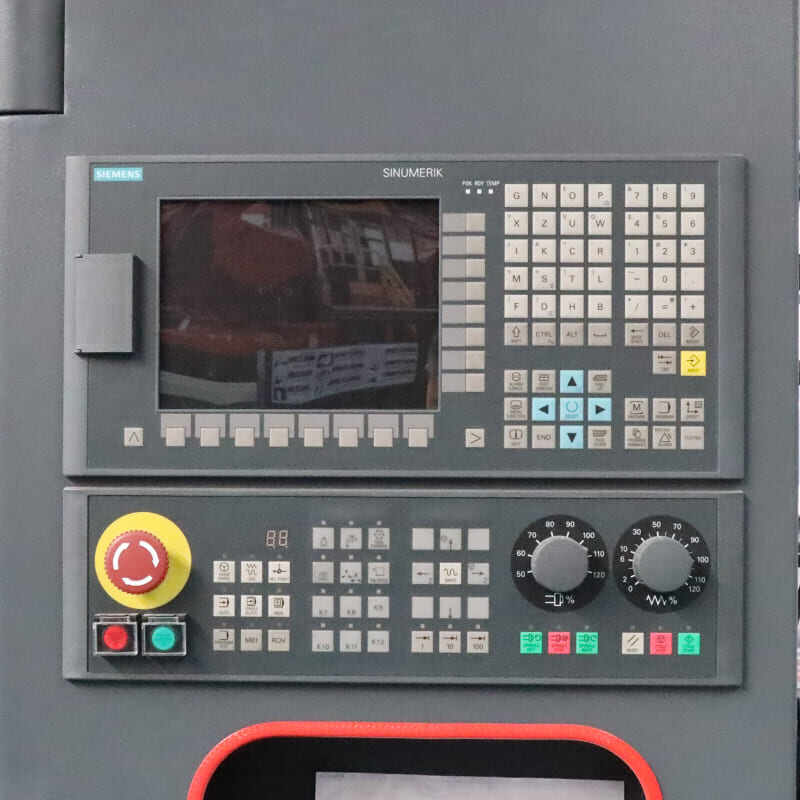

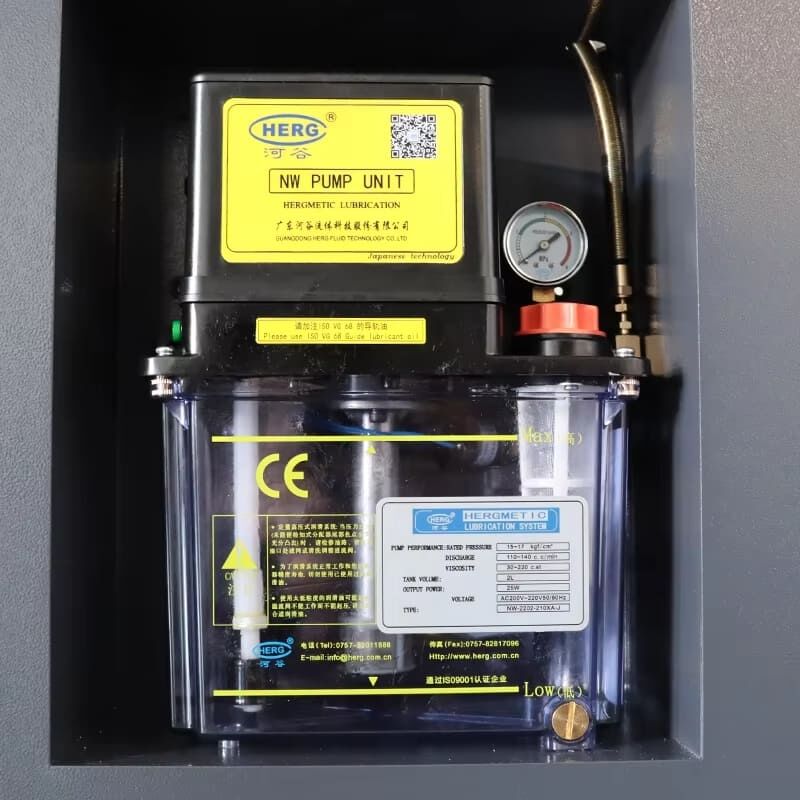

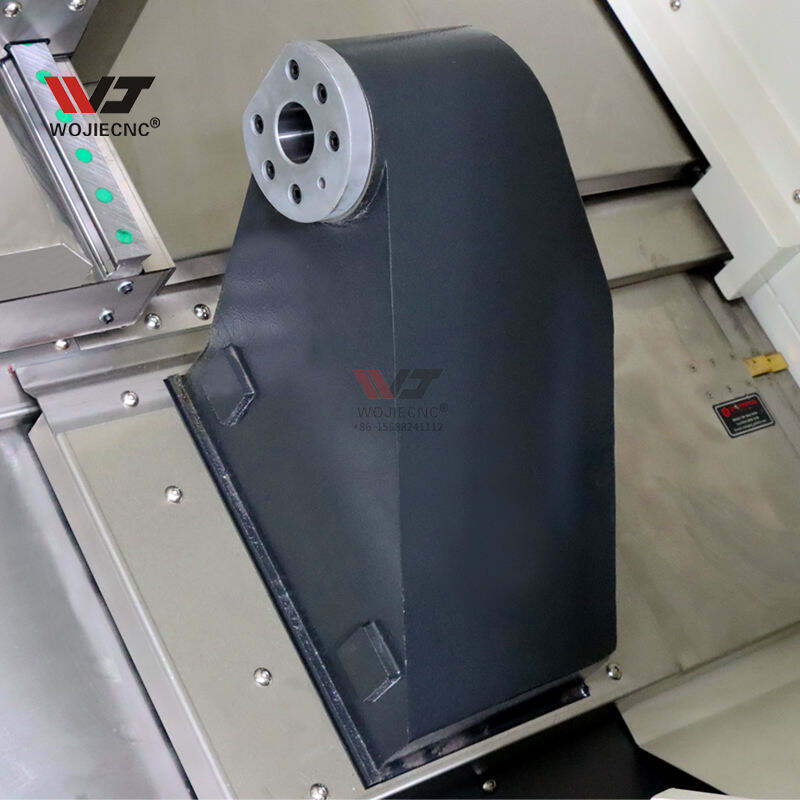

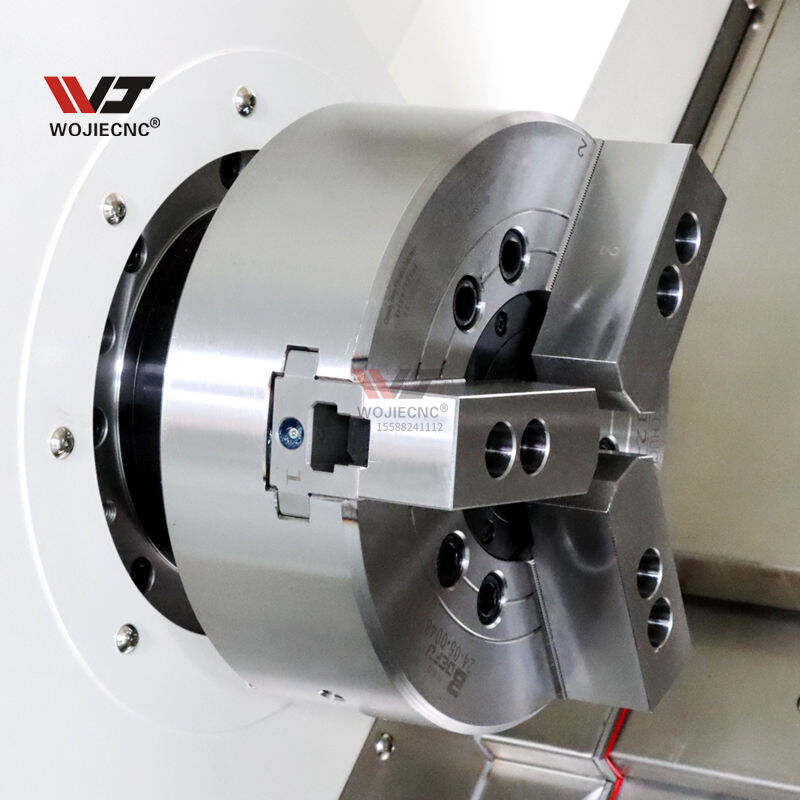

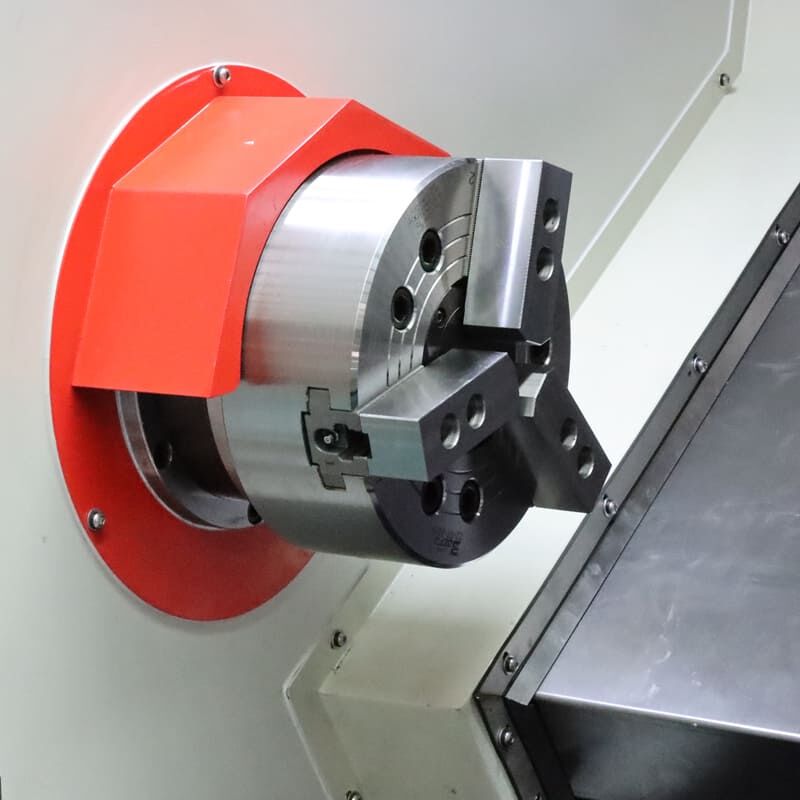

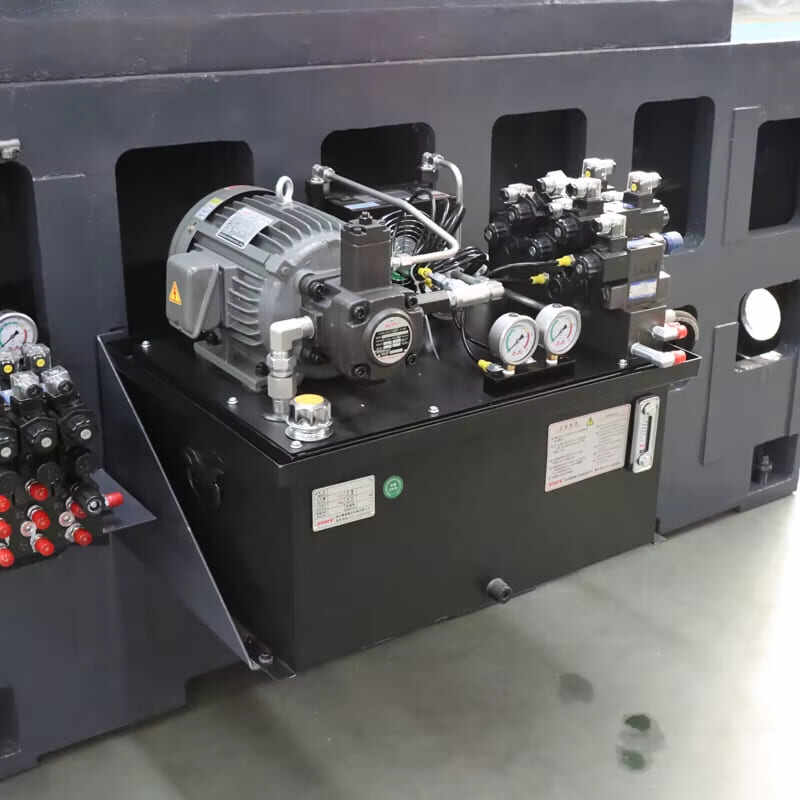

Detailed Images:

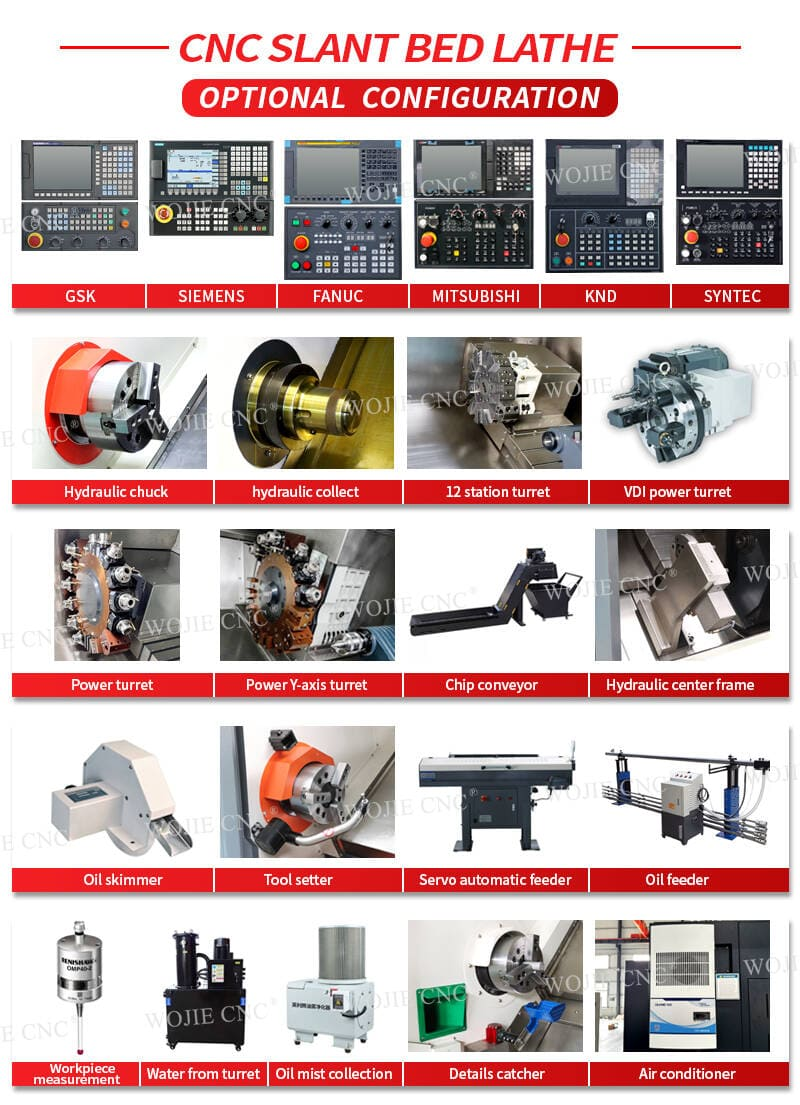

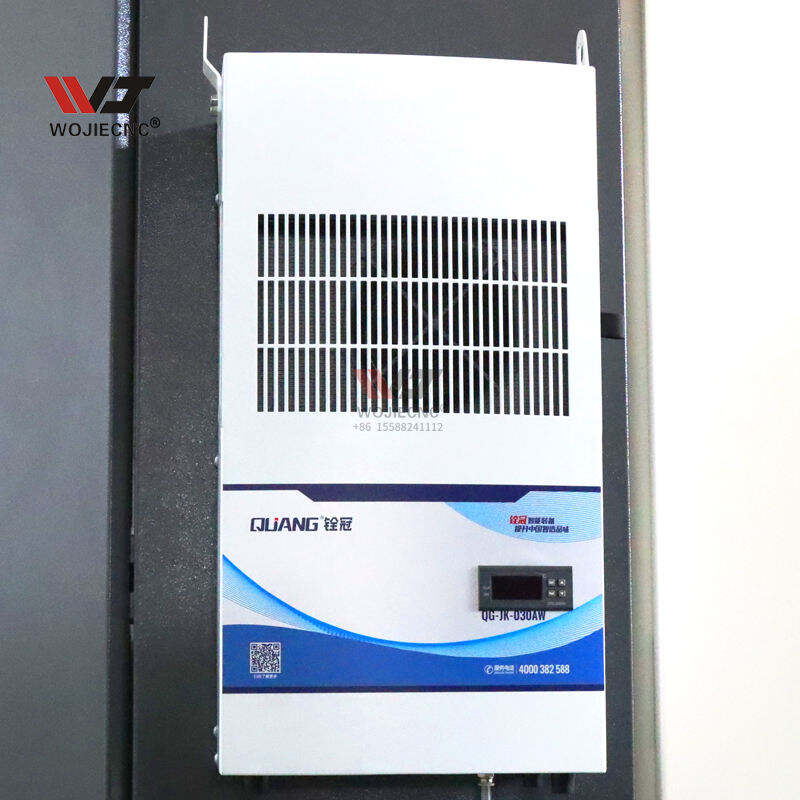

Optional Configurations:
Company Introduction:
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
1. More than 60,000m² of the factory with more than 150 workers.
2. Strictly QC control with more than 24 steps testing processes.
3. 30+ years CNC machine manufacture experience factory.
4. 24 hours online service at any time.
5. Trade with customers in more than 150 countries around the world.
6. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect.
7. Support ODM OEM.
8. Warranty time is 24 months.
We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ:
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
