How does a drilling machine support mixed-material machining requirements?

In modern manufacturing environments, the ability to work across multiple material types within a single production cycle has become a defining requirement for competitiveness. A drilling machine that can accommodate this kind of material diversity is no longer a luxury — it is an operational necessity. From steel alloys and cast iron to aluminum, plastics, and composite laminates, industrial production floors regularly demand precision hole-making across substrates that behave very differently under cutting forces, heat, and tool pressure. Understanding how a drilling machine is engineered to handle these demands reveals why machine selection and configuration matter so profoundly.

The challenge of mixed-material machining is not simply a matter of changing drill bits. It involves a complex interplay of spindle speed, feed rate, coolant delivery, rigidity, and tooling geometry — all of which must be tunable to match the specific characteristics of each material being processed. A well-designed drilling machine integrates mechanical flexibility with operational precision, allowing operators to shift between material types without sacrificing dimensional accuracy or tool life. This article explores how a drilling machine achieves this versatility in practice, covering the key engineering principles, operational adjustments, and structural features that make mixed-material capability possible.

The Engineering Basis of Material Flexibility in a Drilling Machine

Variable Speed and Feed Control

The most foundational requirement for mixed-material performance in any drilling machine is the ability to vary spindle speed and feed rate across a wide range. Different materials demand drastically different cutting speeds. Soft aluminum, for example, typically requires high spindle speeds with light feeds to prevent material smearing, while hardened steel demands low speeds with controlled chip evacuation to avoid tool failure.

Modern drilling machine designs incorporate step-pulley systems, gear-driven headstocks, or continuously variable drives that allow operators to dial in the correct parameters for each material without retrofitting the machine. This mechanical adaptability is central to the drilling machine's usefulness in mixed-material contexts. Without it, the operator is forced to compromise — accepting suboptimal cutting conditions for one material in order to remain safe with another.

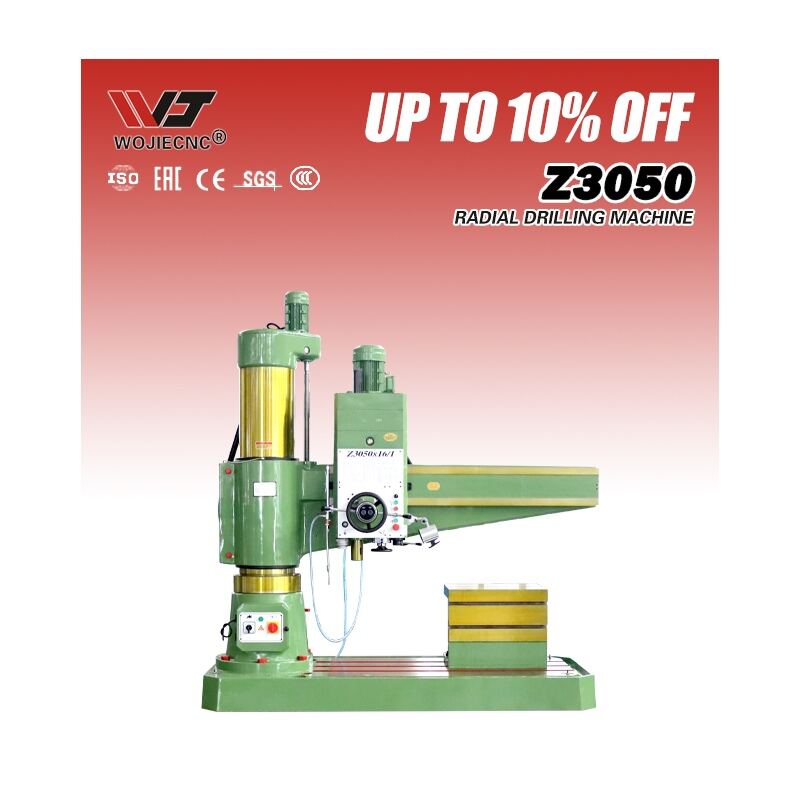

Advanced radial arm drilling machines, for instance, offer a broad speed range — often from under 50 RPM to over 1600 RPM — making it practical to bore through cast iron one hour and switch to drilling thin-walled aluminum sections the next. This range is not incidental; it reflects deliberate engineering aimed at material diversity.

Spindle Power and Torque Range

The spindle motor of a drilling machine must deliver both adequate power and controllable torque to handle materials with very different resistance profiles. Dense ferrous metals require high torque at low speeds to drive the drill bit forward without stalling. Plastics and composites, by contrast, require moderated torque to avoid delamination, burring, or heat-induced distortion at the hole entrance and exit.

A drilling machine engineered for mixed-material work typically features a robust motor with multi-stage gear reduction, enabling the spindle to produce the torque signature appropriate to each material class. This is especially important in workshop environments where job orders shift frequently. The ability to maintain consistent cutting pressure without overloading the spindle or generating excessive heat is what separates a general-purpose drilling machine from one genuinely suited to material diversity.

Torque management also protects tooling. Overshooting the torque envelope for a given material leads to accelerated drill wear, unpredictable breakage, and loss of dimensional tolerance — all outcomes that defeat the purpose of flexible machining.

Structural Rigidity and Its Role in Mixed-Material Performance

Column and Arm Stability Under Variable Cutting Forces

The structural design of a drilling machine has a direct impact on its ability to handle materials with inconsistent hardness or layered compositions. When drilling through composite stacks or assemblies that combine steel inserts with softer substrates, the cutting forces fluctuate dramatically as the drill transitions between layers. A drilling machine with insufficient column rigidity will flex under these changing loads, producing misaligned holes, bell-mouthing, or surface chatter.

High-quality radial drilling machines address this through heavy-gauge cast iron columns, reinforced arm clamping mechanisms, and precision-ground spindle bearings that minimize deflection even during interrupted cuts. The stability of the arm-to-column joint is particularly critical — any play in this connection translates directly into hole position error, which becomes unacceptable when working with tight-tolerance assemblies involving multiple materials.

Operators working with mixed-material components often apply greater lateral forces during tool entry and exit compared to single-material drilling. A rigid drilling machine absorbs these forces without transferring them as vibration to the workpiece, preserving both hole quality and the integrity of material surfaces around the entry point.

Workholding and Table Configuration

Mixed-material workpieces often have irregular geometries — castings with multiple bossing surfaces, assemblies with pre-installed inserts, or sandwiched panels where different materials are bonded together. The workholding capability of a drilling machine must accommodate this variety without requiring complex fixturing for every new job.

A drilling machine with a large, T-slotted worktable and generous throat depth gives operators the flexibility to clamp and position diverse workpiece shapes securely. The radial arm format, in particular, enables the drill head to travel over a wide area rather than requiring the workpiece to be repositioned for each hole location — a significant productivity advantage when drilling multiple materials in a single setup.

The ability to angle the spindle head on certain drilling machine configurations further extends this versatility, allowing angled entry into complex composite assemblies where perpendicular drilling is not possible. This feature is particularly valued in aerospace and automotive fabrication contexts where mixed-material structures are common.

Tooling Compatibility and Quick-Change Capability

Accepting a Wide Range of Drill Types and Sizes

No single drill bit geometry is optimal for every material a modern drilling machine might encounter. Twist drills work well in steel, but spade bits, step drills, brad-point bits, or carbide-tipped cutters may be required for plastics, aluminum, or fiber-reinforced composites. A drilling machine that supports mixed-material work must therefore be able to accept a wide range of tooling through its spindle taper and chuck system.

Most industrial drilling machines use Morse taper spindles, which allow both direct-mount tooling and chuck adapters to be fitted quickly. This standardized interface means that changing from a carbide drill suited for hard steel to a polished-flute bit optimized for aluminum takes seconds rather than minutes — a practical advantage when production involves material variation throughout the day.

The capacity range of the drilling machine — its maximum drill diameter capability in steel, cast iron, or soft material — directly determines which material combinations are feasible. Industrial radial drilling machines often support drill diameters up to 50mm or more in soft materials, making them suitable for the full spectrum of mixed-material hole sizes encountered in heavy fabrication and structural assembly work.

Coolant System Integration for Multi-Material Protection

Coolant and lubrication requirements differ dramatically between materials. Steel drilling generates high heat and requires flood cooling or cutting oil to protect both the drill and the workpiece. Aluminum drilling benefits from air blast or light mist cooling to clear chips without causing adhesion on the flutes. Some plastics and composites should be drilled dry, as coolant can contaminate bonded interfaces or introduce moisture into porous substrates.

A drilling machine equipped with a flexible coolant system — one that can be switched between flood, mist, and dry modes — provides the operator with the control needed to match cooling strategy to material type. This is not merely about extending tool life; it is about preserving the material itself. Thermal damage to the heat-affected zone around a drilled hole can compromise fatigue resistance in metals and cause delamination in composites.

Integration of the coolant system directly into the drilling machine's spindle feed path, rather than as an external attachment, ensures consistent coolant delivery at the point of cut — especially important when drilling deep holes where chip packing and heat buildup are most problematic in dense materials.

Operational Workflow for Mixed-Material Machining

Parameter Setup and Pre-Job Adjustment

Effective mixed-material machining on a drilling machine begins before the first cut. Operators must determine the correct speed, feed, and tool specification for each material in the workpiece, then plan the sequence of operations to minimize tool changes and setup time. This pre-job preparation is where the drilling machine's control system — whether manual, digital readout-equipped, or CNC-assisted — plays a central role.

A drilling machine with clearly marked speed and feed selectors, depth stop mechanisms, and spindle lock features allows operators to configure each operation quickly and accurately. Digital readout systems, available on many contemporary drilling machine models, simplify the process of returning to a previously used parameter set when cycling between material types throughout a shift.

Establishing a parameter log for recurring mixed-material jobs reduces setup error and ensures consistent results across different operators. Over time, this operational data helps workshops optimize tool selection, extend service intervals, and reduce scrap rates associated with incorrect drilling parameters on sensitive materials.

Monitoring Tool Condition Across Material Transitions

Drill bits wear differently depending on the material being cut. A bit that has been used extensively on steel may have edge rounding or micro-chipping that performs acceptably in that material but causes excessive burring or delamination when subsequently used on aluminum or plastic. A disciplined approach to tool inspection between material transitions is therefore an important operational practice when using a drilling machine for mixed-material work.

Operators should inspect cutting edges visually and, where possible, with magnification, between material transitions on the drilling machine. Signs of wear specific to each material — built-up edge in aluminum, crater wear in steel — indicate when reconditioning or replacement is needed before proceeding to the next material. This practice protects workpiece quality and prevents the compounding of errors across a multi-material job.

Some drilling machine setups in higher-volume environments incorporate torque monitoring or vibration sensing to alert operators when cutting forces deviate from baseline — an early indicator of tool degradation that might not be visible to the naked eye but signals the need for tool change before quality is compromised.

FAQ

Can one drilling machine realistically handle both hard steel and soft composites in the same facility?

Yes, provided the drilling machine offers a sufficiently broad speed and torque range and supports diverse tooling through a standard taper system. The key is selecting a machine with variable speed control, rigid structure, and flexible coolant options so that parameters can be correctly matched to each material without mechanical compromise.

How does the radial arm design of a drilling machine benefit mixed-material workpieces?

A radial arm drilling machine allows the spindle head to be repositioned over a wide working area without moving the workpiece. This is especially useful for large or irregularly shaped mixed-material assemblies where repositioning would risk disturbing the setup or damaging bonded interfaces between different material layers.

What is the most common error operators make when using a drilling machine on mixed materials?

The most frequent error is applying the same speed and feed settings across all materials without adjustment. This leads to overheating in metals, smearing in plastics, and delamination in composites. Proper parameter adjustment for each material is the single most impactful practice for maintaining quality on a multi-material drilling machine operation.

Does coolant type really affect drilling quality across different materials?

Absolutely. Using flood coolant on a composite panel can saturate the material and weaken adhesive bonds, while drilling aluminum without any chip evacuation leads to flute clogging and heat buildup. The drilling machine's coolant system should be configured specifically for each material to protect both the workpiece and the tooling throughout the job.
