Slant Bed CNC Lathe: Advanced Precision Machining Solutions for Modern Manufacturing

The slant bed cnc lathe features an innovative structural architecture that sets it apart from conventional machining solutions through its exceptional rigidity and stability characteristics. The inclined bed configuration, typically angled between 30 to 45 degrees, creates a triangulated support structure that dramatically enhances the machine's ability to resist cutting forces and vibrations during heavy machining operations. This geometric advantage is achieved through the strategic placement of structural elements that form a more stable platform compared to traditional horizontal bed designs. The casting process for the slant bed cnc lathe bed utilizes advanced metallurgical techniques, including stress relieving treatments and precision machining operations that ensure long-term dimensional stability. The ribbed internal structure of the bed casting incorporates finite element analysis optimization, resulting in maximum stiffness while minimizing weight and material usage. This superior structural integrity translates directly into improved part quality, with achievable tolerances often exceeding traditional lathe capabilities by 50 percent or more. The enhanced rigidity also enables the use of more aggressive cutting parameters, allowing manufacturers to remove material at higher rates while maintaining surface finish requirements. Vibration dampening characteristics are significantly improved due to the slant bed geometry, which naturally distributes and dissipates cutting forces more effectively than horizontal configurations. This vibration control is particularly beneficial when machining thin-walled components or performing finishing operations where surface quality is critical. The structural advantages extend to tool life improvements, as the reduced vibration environment creates more consistent cutting conditions that minimize tool wear and extend replacement intervals. Machine longevity is enhanced through the superior structural design, as the improved force distribution reduces stress concentrations that could lead to premature wear or accuracy degradation over time. The slant bed cnc lathe design also incorporates advanced foundation isolation systems that further enhance stability by minimizing the transmission of external vibrations from the facility floor or nearby equipment.

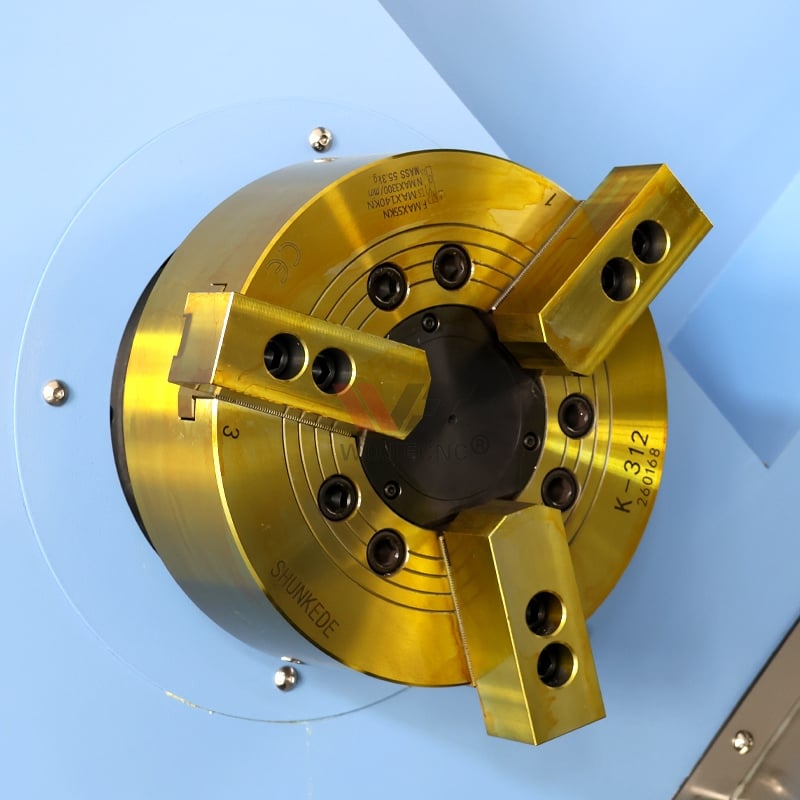

The slant bed cnc lathe revolutionizes chip management through its gravity-assisted evacuation system that significantly outperforms traditional horizontal lathe configurations in maintaining clean cutting environments. The inclined bed angle creates a natural pathway for chips and coolant to flow away from the cutting zone, preventing the accumulation of debris that can compromise machining quality and tool performance. This efficient chip evacuation system reduces the risk of chip rewelding, a common problem in horizontal lathes where chips can become trapped and interfere with subsequent cuts. The slant bed cnc lathe design incorporates strategically positioned chip conveyors and collection systems that work in harmony with gravity to ensure continuous removal of machining debris. Advanced coolant delivery systems are integrated into the machine structure, featuring multiple delivery points that provide optimal lubrication and cooling precisely where needed during various machining operations. The coolant flow patterns are optimized for the slant bed geometry, creating laminar flow characteristics that maximize heat transfer efficiency while minimizing turbulence that could affect surface finish quality. Programmable coolant controls allow operators to adjust flow rates and pressure settings for different materials and cutting conditions, optimizing performance while conserving coolant resources. The chip management system includes automatic filtration and recycling components that maintain coolant quality throughout extended production runs, reducing operating costs and environmental impact. Sealed enclosures and integrated mist collection systems ensure operator safety while containing coolant and chips within the machine envelope. The superior chip evacuation capabilities of the slant bed cnc lathe enable longer unattended operation periods, as the reduced risk of chip-related interruptions allows for lights-out manufacturing scenarios. Quality improvements are evident in reduced tool wear rates, as the clean cutting environment minimizes abrasive contact between tools and accumulated chips. The enhanced chip management system also contributes to improved dimensional accuracy by preventing chip interference with measurement systems and workpiece surfaces during machining operations.

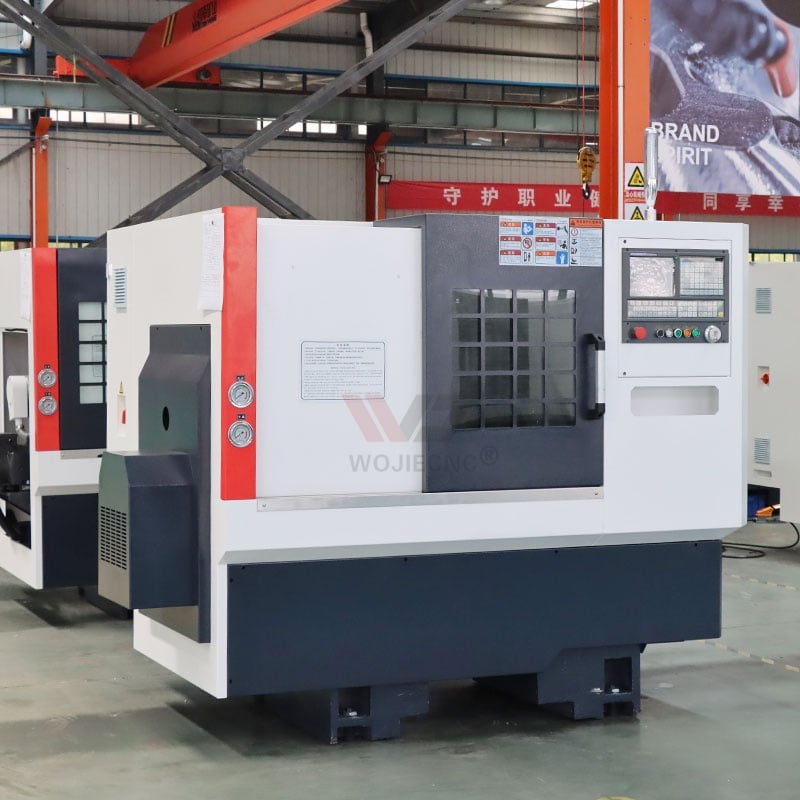

The slant bed cnc lathe delivers exceptional productivity improvements through its optimized machine dynamics that significantly reduce cycle times while maintaining superior part quality standards. The strategic mass distribution inherent in the slant bed design creates favorable dynamic characteristics that enable higher acceleration rates and faster traverse speeds compared to conventional horizontal lathes. Advanced servo motor systems integrated with the slant bed cnc lathe architecture provide precise motion control while delivering rapid positioning capabilities that minimize non-cutting time during complex machining sequences. The machine dynamics are further enhanced through the implementation of direct-drive spindle systems that eliminate belt-driven power transmission inefficiencies while providing superior speed and torque characteristics across the entire operating range. High-frequency spindle options available in many slant bed cnc lathe models enable extremely high surface speeds for finishing operations, resulting in superior surface finishes that often eliminate secondary processing requirements. The optimized thermal management systems maintain consistent machine temperatures during extended operation periods, ensuring dimensional accuracy is preserved even during high-productivity manufacturing scenarios. Intelligent feed rate optimization algorithms continuously monitor cutting conditions and automatically adjust parameters to maintain optimal metal removal rates while protecting tool life and part quality. The slant bed cnc lathe typically features advanced interpolation capabilities that enable simultaneous multi-axis movements, reducing the number of individual operations required to complete complex part geometries. Rapid tool change systems, often completing tool exchanges in under 2 seconds, minimize downtime and enable efficient processing of parts requiring multiple tools. Integrated measurement systems provide real-time dimensional feedback that enables adaptive machining strategies, automatically compensating for tool wear and thermal effects to maintain consistent part quality throughout production runs. The enhanced productivity extends to setup operations through quick-change workholding systems and preset tooling capabilities that dramatically reduce changeover times between different part configurations. Energy-efficient design elements reduce operating costs while the improved productivity metrics deliver faster return on investment compared to traditional machining solutions, making the slant bed cnc lathe an economically attractive choice for manufacturers.
